使用 Palantir 进行轨迹推断#
这里以胰腺内分泌发育数据为例，演示如何用 Palantir 推断伪时间、检查分支结构、总结基因趋势，并通过 ov.pl.branch_streamplot 绘制带分支信息的伪时间流图。
方法背景#
参考 Palantir 官方文档 和原始 Nature Biotechnology 论文，Palantir 将分化过程建模为扩散流形上的随机过程。
它的核心思路可以概括为：
在降噪后的低维表示上计算 diffusion components
选择一个早期/root 细胞，对所有细胞进行伪时间排序
识别 terminal states，并估计每个细胞通向不同终末状态的 fate probability
沿 pseudotime 和不同分支总结基因表达趋势
因此，Palantir 适合处理早期状态明显、后期逐渐分化到多个终点的发育体系。
为什么这里使用胰腺数据？#
胰腺内分泌发育很适合作为 Palantir 示例，因为它同时包含清晰的 progenitor-to-endocrine 主干和多个终末命运。这样我们可以在同一个流程里观察 pseudotime、branch probability 和 branch-aware gene trend。
数据预处理#
这里我们以胰腺发育数据为例演示轨迹推断。
import scanpy as sc
import numpy as np
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings("ignore", category=FutureWarning)
import omicverse as ov
ov.plot_set(font_path='Arial')
%load_ext autoreload
%autoreload 2
🔬 Starting plot initialization...
Using already downloaded Arial font from: /var/folders/rv/3jnfbs0d6r7d0c5bfj7ft5k00000gn/T/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
• [MPS] Apple Silicon GPU - Metal Performance Shaders available
____ _ _ __
/ __ \____ ___ (_)___| | / /__ _____________
/ / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ / __/ / (__ ) __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/ /____/\___/
🔖 Version: 2.1.3rc1 📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
adata = ov.datasets.pancreatic_endocrinogenesis()
⚠️ File ./data/endocrinogenesis_day15.h5ad already exists
Loading data from ./data/endocrinogenesis_day15.h5ad
✅ Successfully loaded: 3696 cells × 27998 genes
adata = ov.pp.preprocess(adata, mode='shiftlog|pearson', n_HVGs=3000)
adata.raw = adata
adata = adata[:, adata.var.highly_variable_features]
ov.pp.scale(adata)
ov.pp.pca(adata, layer='scaled', n_pcs=50)
🔍 [2026-05-12 15:48:18] Running preprocessing in 'cpu' mode...
Begin robust gene identification
After filtration, 17750/27998 genes are kept.
Among 17750 genes, 16426 genes are robust.
✅ Robust gene identification completed successfully.
Begin size normalization: shiftlog and HVGs selection pearson
🔍 Count Normalization:
Target sum: 500000.0
Exclude highly expressed: True
Max fraction threshold: 0.2
⚠️ Excluding 1 highly-expressed genes from normalization computation
Excluded genes: ['Ghrl']
✅ Count Normalization Completed Successfully!
✓ Processed: 3,696 cells × 16,426 genes
✓ Runtime: 0.08s
🔍 Highly Variable Genes Selection (Experimental):
Method: pearson_residuals
Target genes: 3,000
Theta (overdispersion): 100
✅ Experimental HVG Selection Completed Successfully!
✓ Selected: 3,000 highly variable genes out of 16,426 total (18.3%)
✓ Results added to AnnData object:
• 'highly_variable': Boolean vector (adata.var)
• 'highly_variable_rank': Float vector (adata.var)
• 'highly_variable_nbatches': Int vector (adata.var)
• 'highly_variable_intersection': Boolean vector (adata.var)
• 'means': Float vector (adata.var)
• 'variances': Float vector (adata.var)
• 'residual_variances': Float vector (adata.var)
Time to analyze data in cpu: 0.49 seconds.
✅ Preprocessing completed successfully.
Added:
'highly_variable_features', boolean vector (adata.var)
'means', float vector (adata.var)
'variances', float vector (adata.var)
'residual_variances', float vector (adata.var)
'counts', raw counts layer (adata.layers)
End of size normalization: shiftlog and HVGs selection pearson
╭─ SUMMARY: preprocess ──────────────────────────────────────────────╮
│ Duration: 0.5872s │
│ Shape: 3,696 x 27,998 -> 3,696 x 16,426 │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● VAR │ ✚ highly_variable (bool) │
│ │ ✚ highly_variable_features (bool) │
│ │ ✚ highly_variable_rank (float) │
│ │ ✚ means (float) │
│ │ ✚ n_cells (int) │
│ │ ✚ percent_cells (float) │
│ │ ✚ residual_variances (float) │
│ │ ✚ robust (bool) │
│ │ ✚ variances (float) │
│ │
│ ● UNS │ ✚ REFERENCE_MANU │
│ │ ✚ _ov_provenance │
│ │ ✚ history_log │
│ │ ✚ hvg │
│ │ ✚ log1p │
│ │ ✚ status │
│ │ ✚ status_args │
│ │
│ ● LAYERS │ ✚ counts (sparse matrix, 3696x16426) │
│ │
╰────────────────────────────────────────────────────────────────────╯
╭─ SUMMARY: scale ───────────────────────────────────────────────────╮
│ Duration: 0.3006s │
│ Shape: 3,696 x 3,000 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● LAYERS │ ✚ scaled (array, 3696x3000) │
│ │
╰────────────────────────────────────────────────────────────────────╯
computing PCA🔍
with n_comps=50
🖥️ Using sklearn PCA for CPU computation
🖥️ sklearn PCA backend: CPU computation
📊 PCA input data type: ArrayView, shape: (3696, 3000), dtype: float64
🔧 PCA solver used: covariance_eigh
finished✅ (8.85s)
╭─ SUMMARY: pca ─────────────────────────────────────────────────────╮
│ Duration: 8.849s │
│ Shape: 3,696 x 3,000 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● UNS │ ✚ scaled|original|cum_sum_eigenvalues │
│ │ ✚ scaled|original|pca_var_ratios │
│ │
│ ● OBSM │ ✚ scaled|original|X_pca (array, 3696x50) │
│ │
╰────────────────────────────────────────────────────────────────────╯
我们先查看各个主成分对总方差的贡献。这一步可以帮助判断后续构建细胞邻接关系时需要使用多少个 PC。实际分析中，通常只需要一个大致合理的 PC 数即可。
ov.utils.plot_pca_variance_ratio(adata, n_pcs=15)
ov.pl.umap(
adata,
color='clusters'
)
X_umap converted to UMAP to visualize and saved to adata.obsm['UMAP']
if you want to use X_umap, please set convert=False
Palantir#
运行 Palantir 时需要指定一个近似的早期细胞。
Palantir 也可以自动判断终末状态；在这个数据集中，我们已经知道主要终末状态，因此这里直接通过 terminal_states 参数指定。
这里使用 ov.single.TrajInfer 构建轨迹推断对象。
Traj=ov.single.TrajInfer(
adata,
basis='X_umap',
groupby='clusters',
use_rep='scaled|original|X_pca',
n_comps=50
)
Traj.set_origin_cells('Ductal')
Traj.set_terminal_cells(["Alpha","Beta","Delta","Epsilon"])
Traj.inference(method='palantir',num_waypoints=500)
**finished identifying marker genes by COSG**
Sampling and flocking waypoints...
Time for determining waypoints: 0.00039654970169067383 minutes
Determining pseudotime...
Shortest path distances using 30-nearest neighbor graph...
Time for shortest paths: 0.1240071177482605 minutes
Iteratively refining the pseudotime...
Correlation at iteration 1: 0.9998
Correlation at iteration 2: 1.0000
Entropy and branch probabilities...
Markov chain construction...
Computing fundamental matrix and absorption probabilities...
Project results to all cells...
<omicverse.external.palantir.presults.PResults at 0x16573cd10>

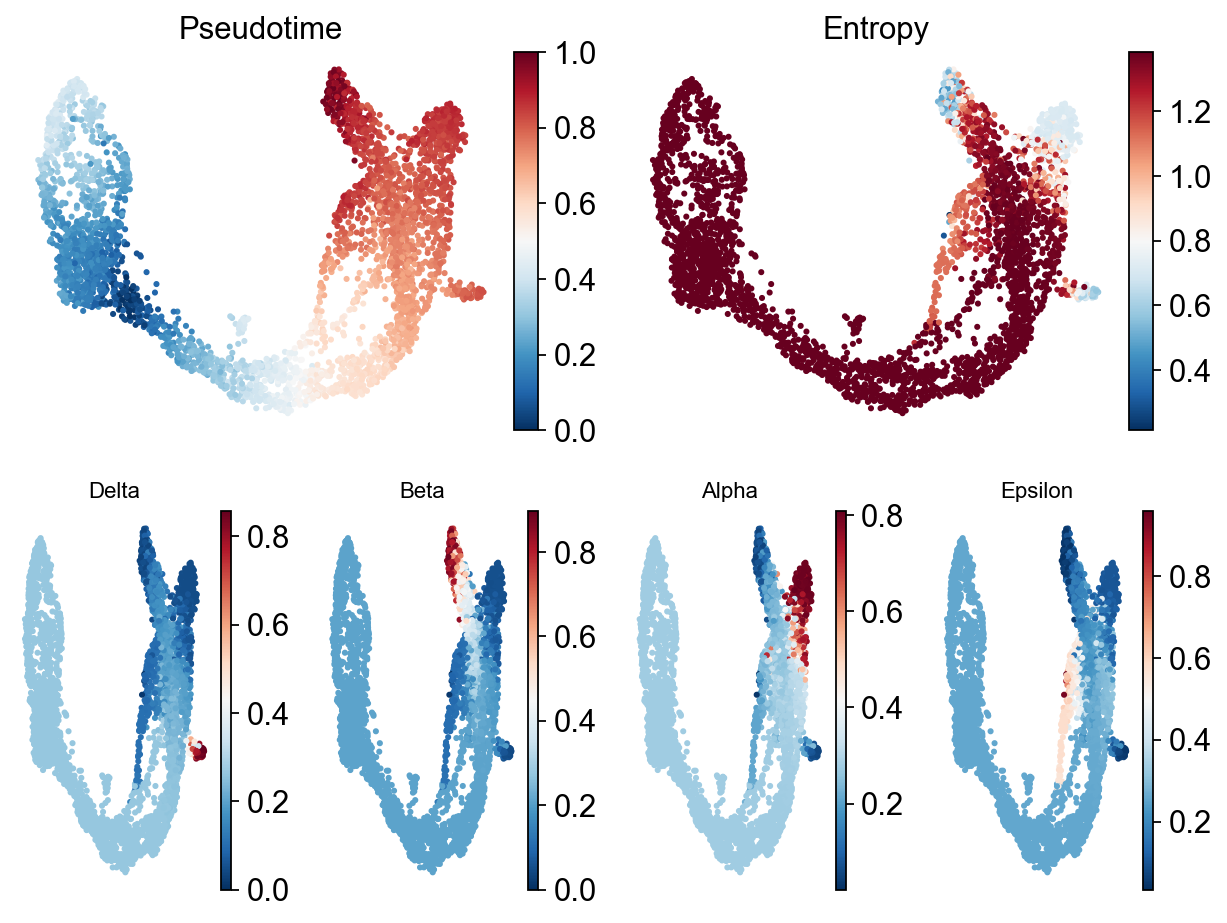

Palantir 的结果可以通过 plot_palantir_results 投影到 tSNE 或 UMAP 上进行可视化。
Traj.palantir_plot_pseudotime(
embedding_basis='X_umap',
cmap='RdBu_r',
s=3,
n_cols=4,
figsize=(8, 6),
)

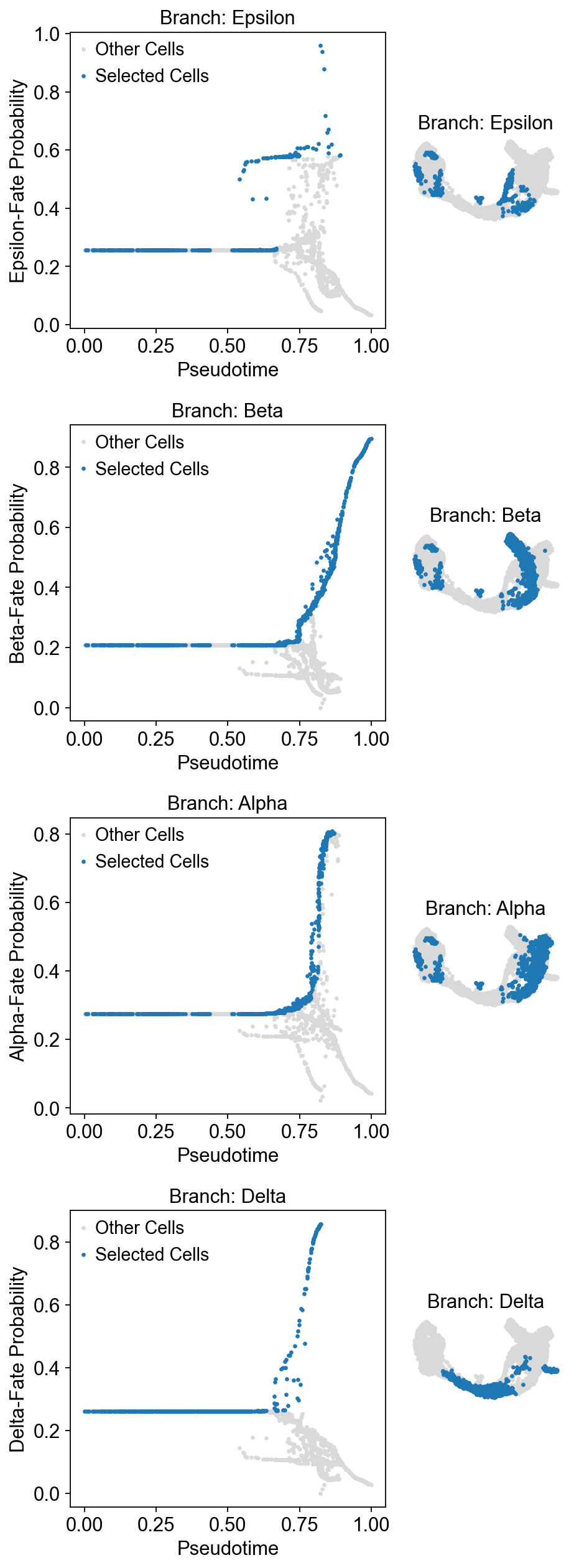

选定细胞后，通常需要把这些细胞映射回伪时间轨迹中检查一次，确认我们确实截取到了目标分支。这里可以使用 plot_branch_selection 完成这个检查。
Traj.palantir_cal_branch(
eps=0,
plot_kwargs={
'figsize': (6, 4),
'selected_color': '#1f77b4',
'deselected_color': '#d9d9d9',
's': 4,
},
)

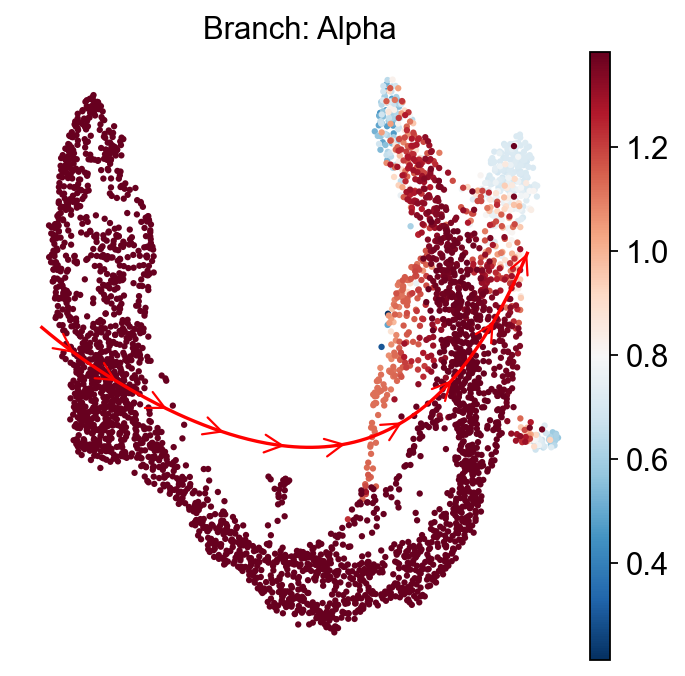

ov.external.palantir.plot.plot_trajectory(
adata,
"Alpha",
cell_color="palantir_entropy",
n_arrows=10,
color="red",
scanpy_kwargs=dict(cmap="RdBu_r"),
)
[2026-05-12 15:48:53,998] [INFO ] Using sparse Gaussian Process since n_landmarks (50) < n_samples (805) and rank = 1.0.
[2026-05-12 15:48:53,998] [INFO ] Using covariance function Matern52(ls=1.262711524963379).
[2026-05-12 15:48:54,026] [INFO ] Computing 50 landmarks with k-means clustering (random_state=42).
[2026-05-12 15:48:55,108] [INFO ] Sigma interpreted as element-wise standard deviation.
<Axes: title={'center': 'Branch: Alpha'}, xlabel='UMAP1', ylabel='UMAP2'>

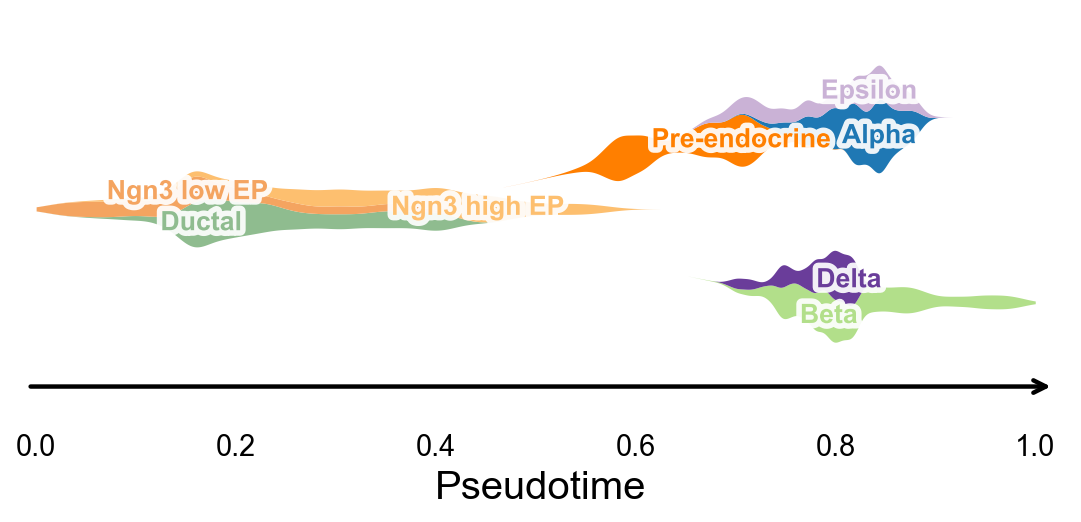

面向分支的伪时间流图#
在计算好 palantir_pseudotime 之后，我们可以把不同 cluster 在伪时间上的占据情况做成 KDE 平滑 ribbon，并映射到一个简洁的分支骨架上。这样可以得到一张适合论文展示的 trajectory-level 概览图。
fig, ax = ov.pl.branch_streamplot(
adata,
group_key='clusters',
pseudotime_key='palantir_pseudotime',
show=False,
)
plt.show()
Palantir 使用 Mellon Function Estimator 沿不同 lineage 拟合基因表达趋势。下面的代码会为所有 lineage 计算 marker 趋势；如果只想分析其中一部分，也可以通过 lineages 参数指定。
adata.layers['lognorm'] = adata.X.copy()
# MAGIC currently conflicts with the NumPy version in the dev environment,
# so we keep a stable smoothed-expression placeholder layer for downstream trends/heatmaps.
adata.layers['MAGIC_imputed_data'] = adata.layers['lognorm'].copy()
gene_trends = Traj.palantir_cal_gene_trends(
layers="MAGIC_imputed_data",
)
Delta
[2026-05-12 15:48:57,000] [INFO ] Using sparse Gaussian Process since n_landmarks (500) < n_samples (624) and rank = 1.0.
[2026-05-12 15:48:57,001] [INFO ] Using covariance function Matern52(ls=1.0).
[2026-05-12 15:48:58,026] [INFO ] Sigma interpreted as element-wise standard deviation.
Beta
[2026-05-12 15:48:58,241] [INFO ] Using sparse Gaussian Process since n_landmarks (500) < n_samples (939) and rank = 1.0.
[2026-05-12 15:48:58,241] [INFO ] Using covariance function Matern52(ls=1.0).
[2026-05-12 15:48:58,667] [INFO ] Sigma interpreted as element-wise standard deviation.
Alpha
[2026-05-12 15:48:58,794] [INFO ] Using sparse Gaussian Process since n_landmarks (500) < n_samples (805) and rank = 1.0.
[2026-05-12 15:48:58,794] [INFO ] Using covariance function Matern52(ls=1.0).
[2026-05-12 15:48:59,159] [INFO ] Sigma interpreted as element-wise standard deviation.
Epsilon
[2026-05-12 15:48:59,282] [INFO ] Using non-sparse Gaussian Process since n_landmarks (500) >= n_samples (324) and rank = 1.0.
[2026-05-12 15:48:59,282] [INFO ] Using covariance function Matern52(ls=1.0).
[2026-05-12 15:48:59,684] [INFO ] Sigma interpreted as element-wise standard deviation.

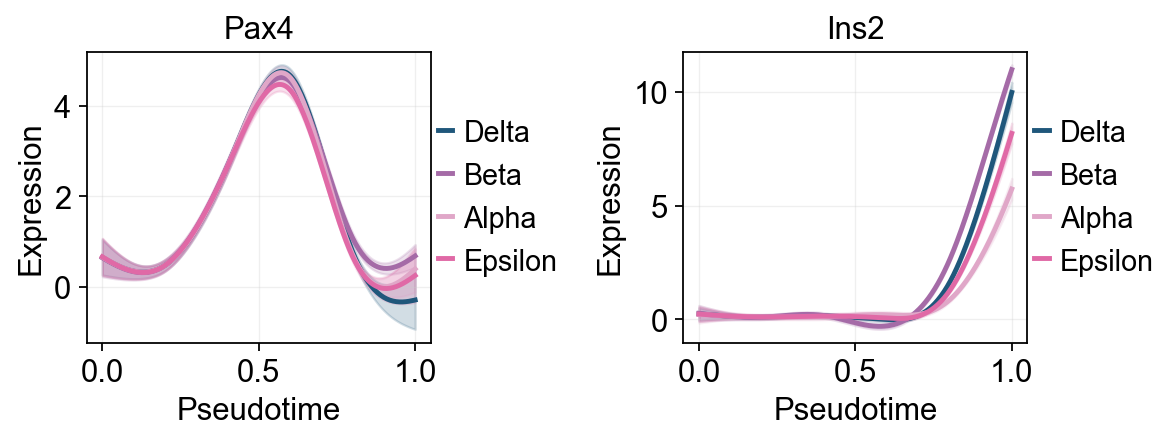

Traj.palantir_plot_gene_trends(
['Pax4', 'Ins2'],
layers='MAGIC_imputed_data',
figsize=(4.5, 3),
compare_groups=True,
linewidth=2.2,
)
plt.show()
🔍 Dynamic feature analysis:
Views: 4 | Features: 2
Pseudotime: palantir_pseudotime
Layer: MAGIC_imputed_data
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 8/8
✓ Fitted rows: 1600
🔍 Dynamic trend plotting:
Features: 2 | Groups: 4
compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!

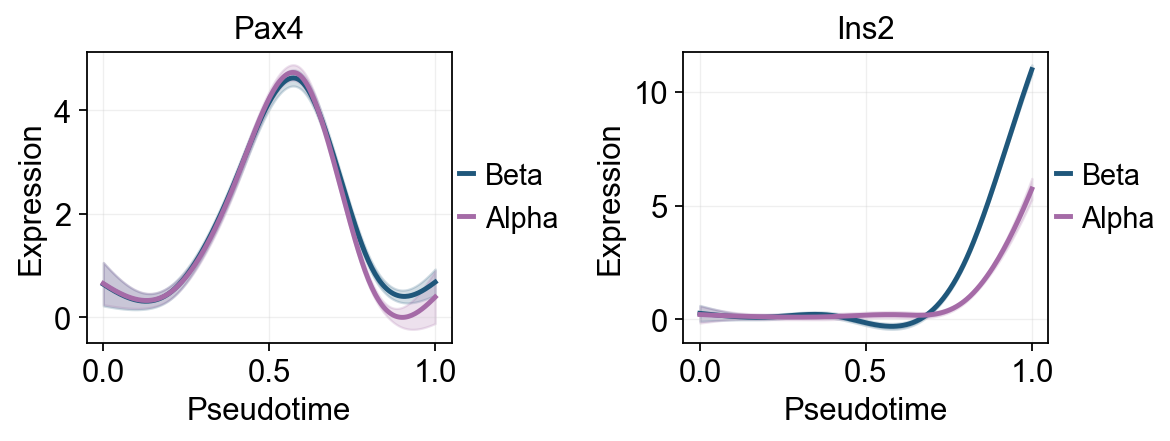

Traj.palantir_plot_gene_trends(
['Pax4', 'Ins2'],
lineages=['Beta', 'Alpha'],
layers='MAGIC_imputed_data',
figsize=(4.5, 3),
compare_groups=True,
linewidth=2.2,
)
plt.show()
🔍 Dynamic feature analysis:
Views: 2 | Features: 2
Pseudotime: palantir_pseudotime
Layer: MAGIC_imputed_data
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 4/4
✓ Fitted rows: 800
🔍 Dynamic trend plotting:
Features: 2 | Groups: 2
compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!

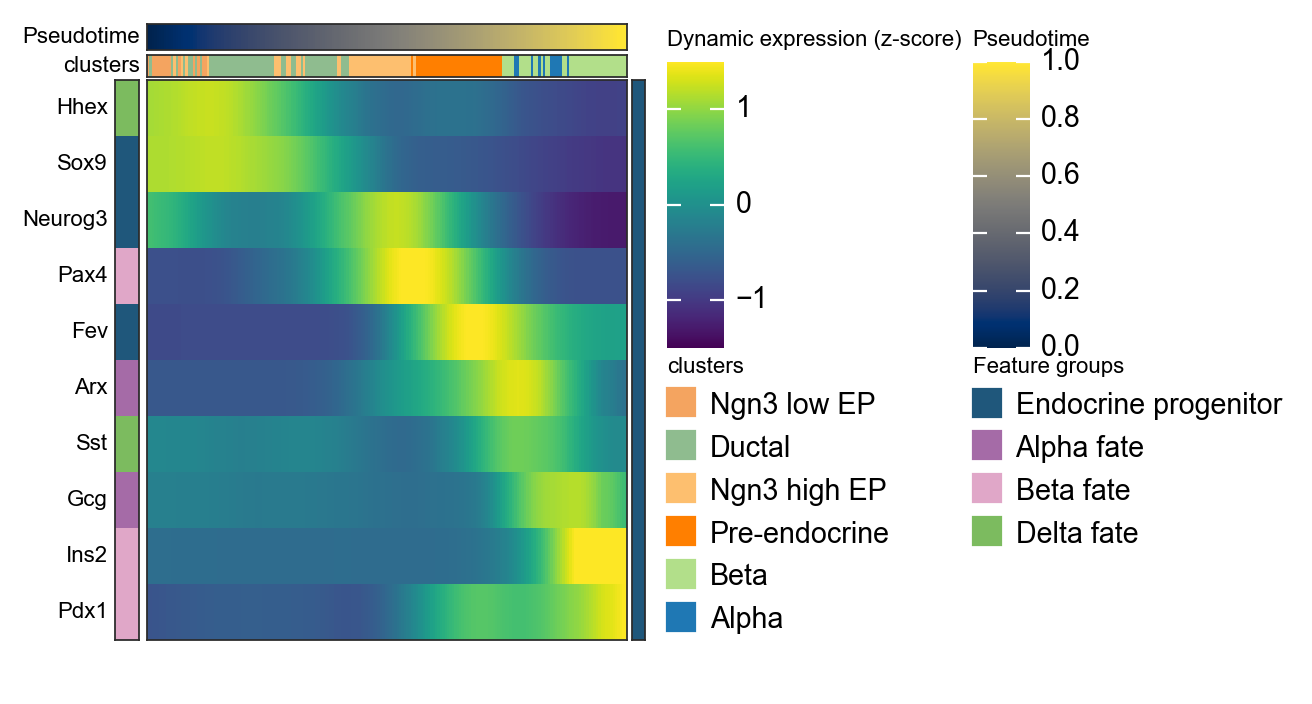

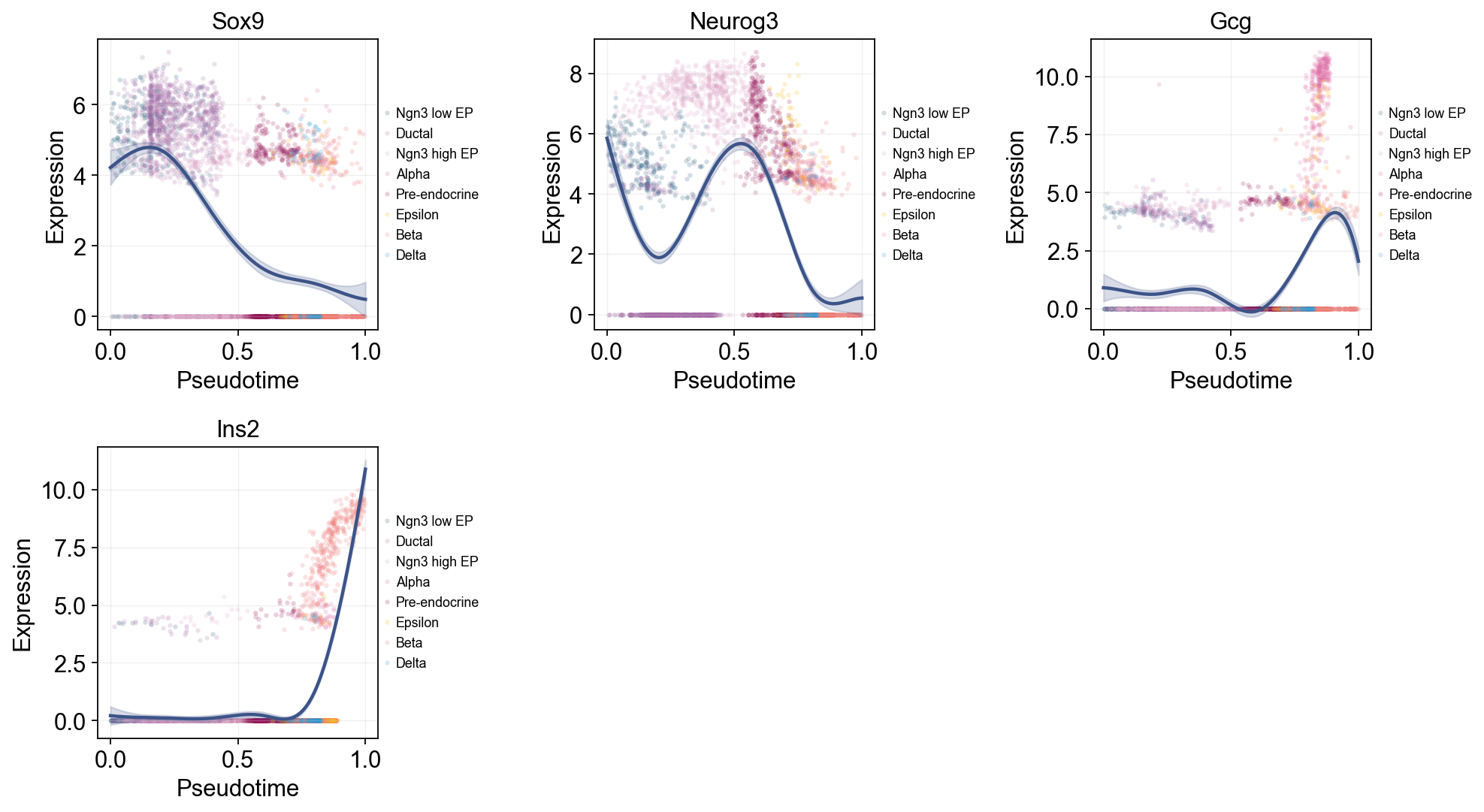

使用 dynamic_features 拟合 GAM 趋势#
ov.single.dynamic_features 可以沿 Palantir 伪时间拟合 GAM 趋势。这里我们先构建全局趋势对象，用 cluster 给原始散点着色；然后再单独拟合晚期 Alpha / Beta 分支，展示分支相关的表达变化。
dynamic_feature_genes = ['Sox9', 'Neurog3', 'Fev', 'Gcg', 'Arx', 'Pax4', 'Ins2', 'Pdx1', 'Sst', 'Hhex']
dyn_res = ov.single.dynamic_features(
adata,
genes=dynamic_feature_genes,
pseudotime='palantir_pseudotime',
layer='MAGIC_imputed_data',
distribution='normal',
link='identity',
n_splines=8,
store_raw=True,
raw_obs_keys=['clusters'],
)
dyn_res.get_stats(successful_only=True).sort_values('peak_time')
🔍 Dynamic feature analysis:
Views: 1 | Features: 10
Pseudotime: palantir_pseudotime
Stored raw obs keys: ['clusters']
Layer: MAGIC_imputed_data
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 10/10
✓ Fitted rows: 2000
✓ Raw observations stored: 36960
dataset groupby_key group gene success error n_cells exp_ncells \
1 adata None None Neurog3 True None 3696 1569
9 adata None None Hhex True None 3696 1300
0 adata None None Sox9 True None 3696 1712
5 adata None None Pax4 True None 3696 1087
2 adata None None Fev True None 3696 1449
4 adata None None Arx True None 3696 784
8 adata None None Sst True None 3696 253
3 adata None None Gcg True None 3696 827
6 adata None None Ins2 True None 3696 496
7 adata None None Pdx1 True None 3696 1974
peak_time valley_time min_pseudotime max_pseudotime r2 \
1 0.002513 0.891960 0.0 1.0 0.285898
9 0.138191 0.982412 0.0 1.0 0.298491
0 0.153266 0.997487 0.0 1.0 0.368678
5 0.575377 0.866834 0.0 1.0 0.366869
2 0.665829 0.339196 0.0 1.0 0.574176
4 0.786432 0.997487 0.0 1.0 0.251777
8 0.791457 0.997487 0.0 1.0 0.030415
3 0.907035 0.580402 0.0 1.0 0.220289
6 0.997487 0.680905 0.0 1.0 0.488961
7 0.997487 0.002513 0.0 1.0 0.113565
explained_deviance p_value padj
1 0.285898 1.110223e-16 1.850372e-16
9 0.298491 7.449596e-14 1.064228e-13
0 0.368678 1.110223e-16 1.850372e-16
5 0.366869 1.110223e-16 1.850372e-16
2 0.574176 1.110223e-16 1.850372e-16
4 0.251777 1.125434e-01 1.250482e-01
8 0.030415 1.521192e-01 1.521192e-01
3 0.220289 1.195516e-03 1.494395e-03
6 0.488961 1.110223e-16 1.850372e-16
7 0.113565 1.110223e-16 1.850372e-16
Single-line global trends#
这张图为每个基因只拟合一条全局趋势线，同时用细胞注释给原始散点着色。它适合区分“整体伪时间表达趋势”和“哪些细胞状态贡献了这些散点”。
ov.pl.dynamic_trends(
dyn_res,
genes=['Sox9', 'Neurog3', 'Gcg', 'Ins2'],
add_point=True,
point_color_by='clusters',
figsize=(5, 3.5),
legend_loc='right margin',
legend_fontsize=8,
)
plt.show()
🔍 Dynamic trend plotting:
Features: 4 | Groups: 1
compare_features=False | compare_groups=False
✅ Dynamic trend plotting completed!
多标记基因趋势比较#
这里把多个 marker 的拟合曲线叠加在同一伪时间坐标中，方便直接比较不同程序的启动和衰减顺序。
selected_dynamic_genes = dyn_res.get_significant_features(
min_expcells=20,
r2_cutoff=0.1,
)
selected_dynamic_genes[:10]
['Sox9', 'Neurog3', 'Fev', 'Gcg', 'Arx', 'Pax4', 'Ins2', 'Pdx1', 'Hhex']
branch_clusters = [g for g in ['Alpha', 'Beta'] if g in set(adata.obs['clusters'].astype(str))]
grouped_dyn_res = ov.single.dynamic_features(
adata,
genes=['Gcg', 'Ins2', 'Pax4', 'Sox9'],
pseudotime='palantir_pseudotime',
layer='MAGIC_imputed_data',
groupby='clusters',
groups=branch_clusters,
distribution='normal',
link='identity',
n_splines=8,
store_raw=True,
)
grouped_dyn_res.get_stats(successful_only=True).head(8)
🔍 Dynamic feature analysis:
Views: 2 | Features: 4
Pseudotime: palantir_pseudotime
Grouping: clusters
Layer: MAGIC_imputed_data
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 8/8
✓ Fitted rows: 1600
✓ Raw observations stored: 4288
dataset groupby_key group gene success error n_cells exp_ncells \
0 Alpha clusters Alpha Gcg True None 481 316
1 Alpha clusters Alpha Ins2 True None 481 44
2 Alpha clusters Alpha Pax4 True None 481 27
3 Alpha clusters Alpha Sox9 True None 481 44
4 Beta clusters Beta Gcg True None 591 105
5 Beta clusters Beta Ins2 True None 591 361
6 Beta clusters Beta Pax4 True None 591 152
7 Beta clusters Beta Sox9 True None 591 126
peak_time valley_time min_pseudotime max_pseudotime r2 \
0 0.886358 0.606559 0.217201 0.888043 0.563417
1 0.795339 0.218887 0.217201 0.888043 0.001280
2 0.515541 0.856018 0.217201 0.888043 0.095104
3 0.576220 0.218887 0.217201 0.888043 0.002334
4 0.671726 0.749453 0.670899 1.000000 0.025233
5 0.999173 0.721339 0.670899 1.000000 0.710611
6 0.671726 0.947906 0.670899 1.000000 0.071716
7 0.671726 0.999173 0.670899 1.000000 0.021405
explained_deviance p_value padj
0 0.563417 6.375285e-08 2.550114e-07
1 0.001280 7.903987e-01 7.903987e-01
2 0.095104 6.801059e-03 1.360212e-02
3 0.002334 5.958209e-01 7.903987e-01
4 0.025233 8.181258e-06 1.090834e-05
5 0.710611 1.110223e-16 4.440892e-16
6 0.071716 9.245480e-10 1.849096e-09
7 0.021405 2.378793e-04 2.378793e-04

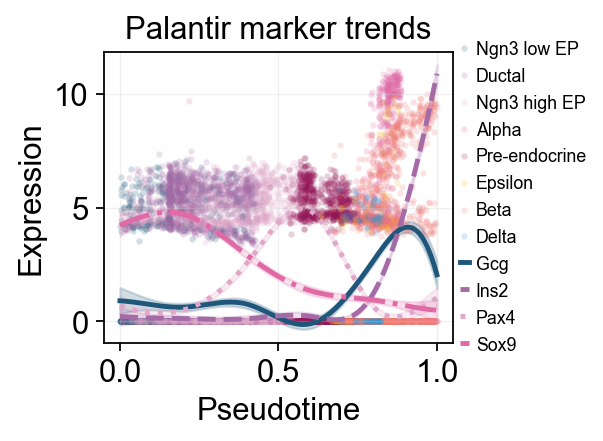

palantir_compare_genes = ['Gcg', 'Ins2', 'Pax4', 'Sox9']
ov.pl.dynamic_trends(
dyn_res,
genes=palantir_compare_genes,
compare_features=True,
add_point=True,
point_color_by='clusters',
line_style_by='features',
linewidth=2.2,
figsize=(4.8, 3),
legend_loc='right margin',
legend_fontsize=8,
title='Palantir marker trends',
)
plt.show()
🔍 Dynamic trend plotting:
Features: 4 | Groups: 1
compare_features=True | compare_groups=False
✅ Dynamic trend plotting completed!

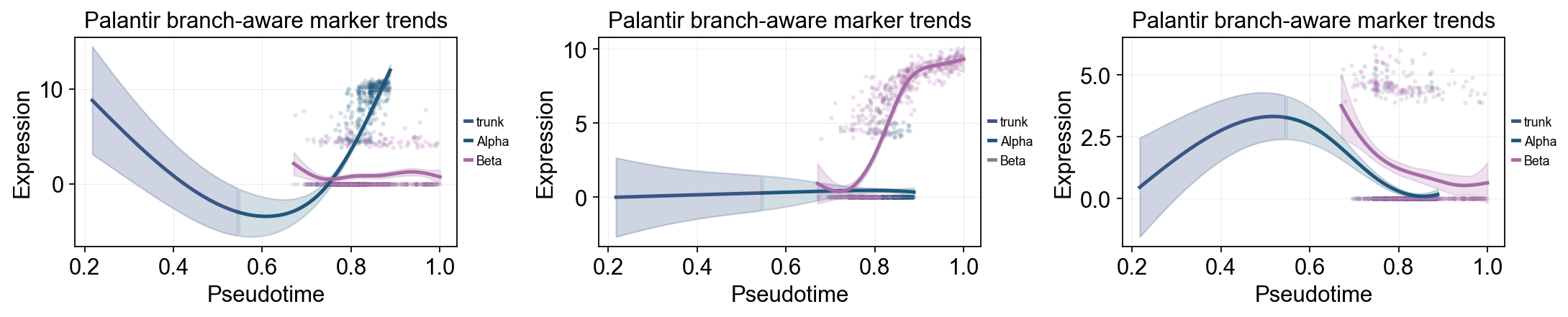

palantir_split_mask = adata.obs['clusters'].astype(str).isin(['Ngn3 high EP', 'Pre-endocrine'])
palantir_split_time = float(np.nanmedian(adata.obs.loc[palantir_split_mask, 'palantir_pseudotime'])) if palantir_split_mask.any() else float(np.nanmedian(adata.obs['palantir_pseudotime']))
ov.pl.dynamic_trends(
grouped_dyn_res,
genes=['Gcg', 'Ins2', 'Pax4'],
compare_groups=True,
split_time=palantir_split_time,
shared_trunk=True,
add_point=True,
point_color_by='group',
figsize=(5.5, 3),
linewidth=2.2,
ncols=3,
legend_loc='right margin',
legend_fontsize=8,
title='Palantir branch-aware marker trends',
)
plt.show()
🔍 Dynamic trend plotting:
Features: 3 | Groups: 2
compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!
用动态热图概括 Palantir 趋势#
计算得到 palantir_pseudotime 和 MAGIC_imputed_data 后，可以使用 ov.pl.dynamic_heatmap 按伪时间概括胰腺 marker 的动态变化。相比单基因趋势曲线，动态热图更适合在同一视图中比较多个 lineage program 的启动顺序。
dynamic_marker_modules = {
'Endocrine progenitor': ['Sox9', 'Neurog3', 'Fev'],
'Alpha fate': ['Gcg', 'Arx'],
'Beta fate': ['Pax4', 'Ins2', 'Pdx1'],
'Delta fate': ['Sst', 'Hhex'],
}
d = ov.pl.dynamic_heatmap(
adata,
var_names=dynamic_marker_modules,
pseudotime='palantir_pseudotime',
layer='MAGIC_imputed_data',
cell_annotation='clusters',
# Bin columns are more stable here and preserve annotation tracks.
use_cell_columns=False,
cell_bins=200,
smooth_window=21,
fitted_window=41,
figsize=(4, 5),
standard_scale='var',
cmap='viridis',
show_row_names=True,
border=True,
show=False,
)
🔍 Dynamic heatmap:
Candidate features: 10
Pseudotime: palantir_pseudotime
Cell annotation: clusters
use_fitted=True | cell_bins=200 | cmap=viridis
✅ Dynamic heatmap completed!
✓ Matrix shape: 10 features × 200 columns
也可以继续使用 PAGA 从 cluster 层面观察细胞状态之间的连接关系。
ov.utils.cal_paga(
adata,
use_time_prior='palantir_pseudotime',
vkey='paga',
groups='clusters'
)
running PAGA using priors: ['palantir_pseudotime']
finished
added
'paga/connectivities', connectivities adjacency (adata.uns)
'paga/connectivities_tree', connectivities subtree (adata.uns)
'paga/transitions_confidence', velocity transitions (adata.uns)

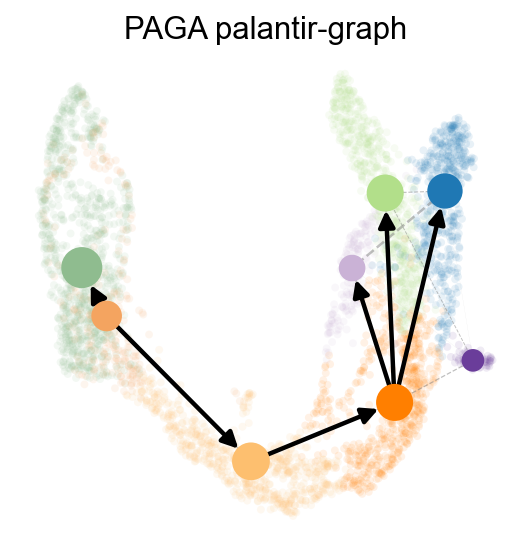

ov.utils.plot_paga(
adata,basis='umap',
size=50,
alpha=.1,
title='PAGA palantir-graph',
min_edge_width=2,
node_size_scale=1.5,
show=False,
legend_loc=False
)
<Axes: title={'center': 'PAGA palantir-graph'}>
