使用 Diffusion Map 和 PAGA 进行轨迹推断#
本教程展示基于 Diffusion Map 和 PAGA 的胰腺内分泌发育轨迹分析流程。它强调的是一种非常常用的思路：先用 diffusion 几何刻画细胞在连续流形上的渐变关系，再用 PAGA 对整体分支拓扑做更清晰的抽象概括。
方法背景#
参考 Scanpy 的 diffusion pseudotime 文档、Scanpy 的 PAGA 轨迹教程 以及原始 [PAGA 论文](https://genomebiology.biomedcentral.com/articles/10.1186/s13059-019-1663-x
)，这个工作流结合了两个互补的思想。
Diffusion Map 根据邻接图上的随机游走结构来嵌入细胞，因此更强调状态之间的连续过渡。
Diffusion Pseudotime (DPT) 在给定根部区域后，可以沿这个流形对细胞进行伪时间排序。
PAGA（partition-based graph abstraction）则进一步把 cluster 之间的连接关系抽象成更容易解释的粗粒度拓扑图，比直接看致密的单细胞图更清楚。
因此，这套组合特别适合同时观察“连续变化的轨迹几何”和“cluster 层面的全局分支结构”。
为什么这里使用胰腺数据？#
胰腺内分泌发育是 diffusion-based 轨迹推断的一个很合适的教学数据集。它既包含明显的 progenitor-to-endocrine 连续进展，也包含多个终末分支，因此很适合同时展示连续的 pseudotime 结构和 PAGA 抽象出的高层拓扑。
数据预处理#
这里我们以胰腺发育数据为例，先进行轨迹推断，再用 PAGA 对整体拓扑进行概括。
import scanpy as sc
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings("ignore", category=FutureWarning)
import omicverse as ov
ov.plot_set(font_path='Arial')
%load_ext autoreload
%autoreload 2
🔬 Starting plot initialization...
Using already downloaded Arial font from: /var/folders/rv/3jnfbs0d6r7d0c5bfj7ft5k00000gn/T/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
• [MPS] Apple Silicon GPU - Metal Performance Shaders available
____ _ _ __
/ __ \____ ___ (_)___| | / /__ _____________
/ / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ / __/ / (__ ) __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/ /____/\___/
🔖 Version: 2.1.3rc1 📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
adata = ov.datasets.pancreatic_endocrinogenesis()
⚠️ File ./data/endocrinogenesis_day15.h5ad already exists
Loading data from ./data/endocrinogenesis_day15.h5ad
✅ Successfully loaded: 3696 cells × 27998 genes
adata = ov.pp.preprocess(adata, mode='shiftlog|pearson', n_HVGs=3000)
adata.raw = adata
adata = adata[:, adata.var.highly_variable_features]
ov.pp.scale(adata)
ov.pp.pca(adata, layer='scaled', n_pcs=50)
🔍 [2026-05-12 15:46:50] Running preprocessing in 'cpu' mode...
Begin robust gene identification
After filtration, 17750/27998 genes are kept.
Among 17750 genes, 16426 genes are robust.
✅ Robust gene identification completed successfully.
Begin size normalization: shiftlog and HVGs selection pearson
🔍 Count Normalization:
Target sum: 500000.0
Exclude highly expressed: True
Max fraction threshold: 0.2
⚠️ Excluding 1 highly-expressed genes from normalization computation
Excluded genes: ['Ghrl']
✅ Count Normalization Completed Successfully!
✓ Processed: 3,696 cells × 16,426 genes
✓ Runtime: 0.11s
🔍 Highly Variable Genes Selection (Experimental):
Method: pearson_residuals
Target genes: 3,000
Theta (overdispersion): 100
✅ Experimental HVG Selection Completed Successfully!
✓ Selected: 3,000 highly variable genes out of 16,426 total (18.3%)
✓ Results added to AnnData object:
• 'highly_variable': Boolean vector (adata.var)
• 'highly_variable_rank': Float vector (adata.var)
• 'highly_variable_nbatches': Int vector (adata.var)
• 'highly_variable_intersection': Boolean vector (adata.var)
• 'means': Float vector (adata.var)
• 'variances': Float vector (adata.var)
• 'residual_variances': Float vector (adata.var)
Time to analyze data in cpu: 0.52 seconds.
✅ Preprocessing completed successfully.
Added:
'highly_variable_features', boolean vector (adata.var)
'means', float vector (adata.var)
'variances', float vector (adata.var)
'residual_variances', float vector (adata.var)
'counts', raw counts layer (adata.layers)
End of size normalization: shiftlog and HVGs selection pearson
╭─ SUMMARY: preprocess ──────────────────────────────────────────────╮
│ Duration: 0.6316s │
│ Shape: 3,696 x 27,998 -> 3,696 x 16,426 │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● VAR │ ✚ highly_variable (bool) │
│ │ ✚ highly_variable_features (bool) │
│ │ ✚ highly_variable_rank (float) │
│ │ ✚ means (float) │
│ │ ✚ n_cells (int) │
│ │ ✚ percent_cells (float) │
│ │ ✚ residual_variances (float) │
│ │ ✚ robust (bool) │
│ │ ✚ variances (float) │
│ │
│ ● UNS │ ✚ REFERENCE_MANU │
│ │ ✚ _ov_provenance │
│ │ ✚ history_log │
│ │ ✚ hvg │
│ │ ✚ log1p │
│ │ ✚ status │
│ │ ✚ status_args │
│ │
│ ● LAYERS │ ✚ counts (sparse matrix, 3696x16426) │
│ │
╰────────────────────────────────────────────────────────────────────╯
╭─ SUMMARY: scale ───────────────────────────────────────────────────╮
│ Duration: 0.3075s │
│ Shape: 3,696 x 3,000 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● LAYERS │ ✚ scaled (array, 3696x3000) │
│ │
╰────────────────────────────────────────────────────────────────────╯
computing PCA🔍
with n_comps=50
🖥️ Using sklearn PCA for CPU computation
🖥️ sklearn PCA backend: CPU computation
📊 PCA input data type: ArrayView, shape: (3696, 3000), dtype: float64
🔧 PCA solver used: covariance_eigh
finished✅ (7.87s)
╭─ SUMMARY: pca ─────────────────────────────────────────────────────╮
│ Duration: 7.8698s │
│ Shape: 3,696 x 3,000 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● UNS │ ✚ scaled|original|cum_sum_eigenvalues │
│ │ ✚ scaled|original|pca_var_ratios │
│ │
│ ● OBSM │ ✚ scaled|original|X_pca (array, 3696x50) │
│ │
╰────────────────────────────────────────────────────────────────────╯
我们先查看各个主成分对总方差的贡献。这一步可以帮助判断后续构建细胞邻接关系时需要使用多少个 PC。实际分析中，通常只需要一个大致合理的 PC 数即可。
ov.utils.plot_pca_variance_ratio(adata, n_pcs=15)
ov.pl.umap(
adata,
color='clusters'
)
X_umap converted to UMAP to visualize and saved to adata.obsm['UMAP']
if you want to use X_umap, please set convert=False
Diffusion Map#
这里使用 ov.single.TrajInfer 构建轨迹推断对象。
Traj=ov.single.TrajInfer(
adata,
basis='X_umap',
groupby='clusters',
use_rep='scaled|original|X_pca',
n_comps=50,
)
Traj.set_origin_cells('Ductal')
Traj.inference(method='diffusion_map')

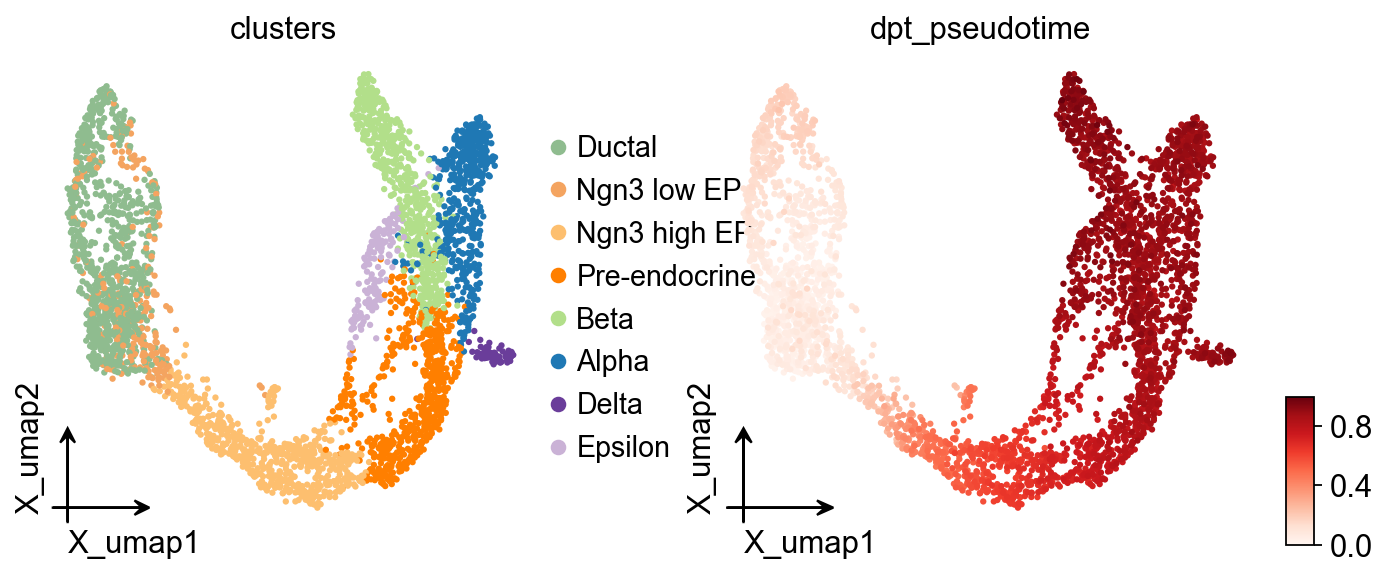

ov.pl.embedding(
adata,
basis='X_umap',
color=['clusters','dpt_pseudotime'],
frameon='small',
cmap='Reds'
)
PAGA 会把数据拓扑概括成一个带权图，边的权重表示两个 cluster 之间的连通强度。
这里进一步结合邻居方向信息，让 PAGA 结果更适合解释发育方向。
ov.utils.cal_paga(
adata,
use_time_prior='dpt_pseudotime',
vkey='paga',
groups='clusters'
)
running PAGA using priors: ['dpt_pseudotime']
finished
added
'paga/connectivities', connectivities adjacency (adata.uns)
'paga/connectivities_tree', connectivities subtree (adata.uns)
'paga/transitions_confidence', velocity transitions (adata.uns)

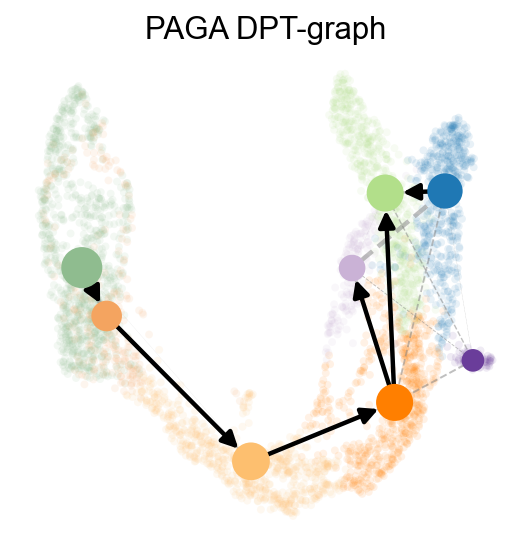

ov.utils.plot_paga(
adata,basis='umap',
size=50,
alpha=.1,
title='PAGA DPT-graph',
min_edge_width=2,
node_size_scale=1.5,
show=False,
legend_loc=False
)
<Axes: title={'center': 'PAGA DPT-graph'}>
分支感知的伪时间流图#
ov.pl.branch_streamplot 只需要伪时间和细胞状态标签，因此也可以用于这个轨迹推断方法。图中 ribbon 的宽度表示某类细胞在伪时间上的富集位置，分叉的中心线则帮助观察不同 endocrine fate 在何处展开。

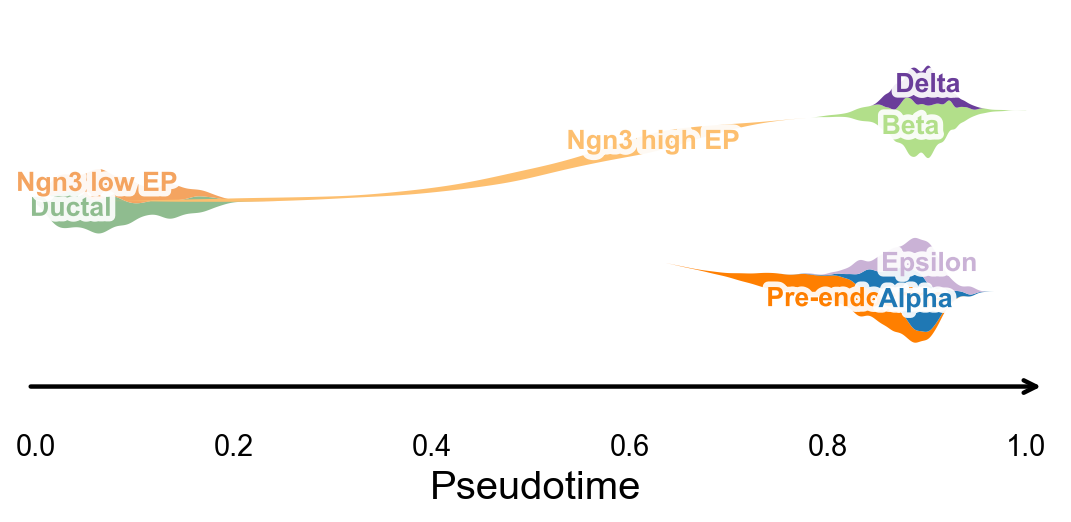

fig, ax = ov.pl.branch_streamplot(
adata,
group_key='clusters',
pseudotime_key='dpt_pseudotime',
show=False,
)
plt.show()
使用 dynamic_features / dynamic_trends 分析 DPT 伪时间#
ov.single.dynamic_features 可以沿 dpt_pseudotime 拟合 marker 趋势。这里我们先画一张全局 marker 趋势图，并用 cluster 给原始散点着色；然后再比较晚期 Alpha / Beta 分支，展示分支相关的表达变化。
import numpy as np
dpt_trend_genes = ['Sox9', 'Neurog3', 'Fev', 'Gcg', 'Arx', 'Pax4', 'Ins2', 'Pdx1', 'Sst', 'Hhex']
diffusion_dyn = ov.single.dynamic_features(
adata,
genes=dpt_trend_genes,
pseudotime='dpt_pseudotime',
use_raw=adata.raw is not None,
distribution='normal',
link='identity',
n_splines=8,
store_raw=True,
raw_obs_keys=['clusters'],
)
🔍 Dynamic feature analysis:
Views: 1 | Features: 10
Pseudotime: dpt_pseudotime
Stored raw obs keys: ['clusters']
Expression source: adata.raw
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 10/10
✓ Fitted rows: 2000
✓ Raw observations stored: 36960
Single-line global trends#
这张图为每个基因只拟合一条全局趋势线，同时用细胞注释给原始散点着色。它适合区分“整体伪时间表达趋势”和“哪些细胞状态贡献了这些散点”。

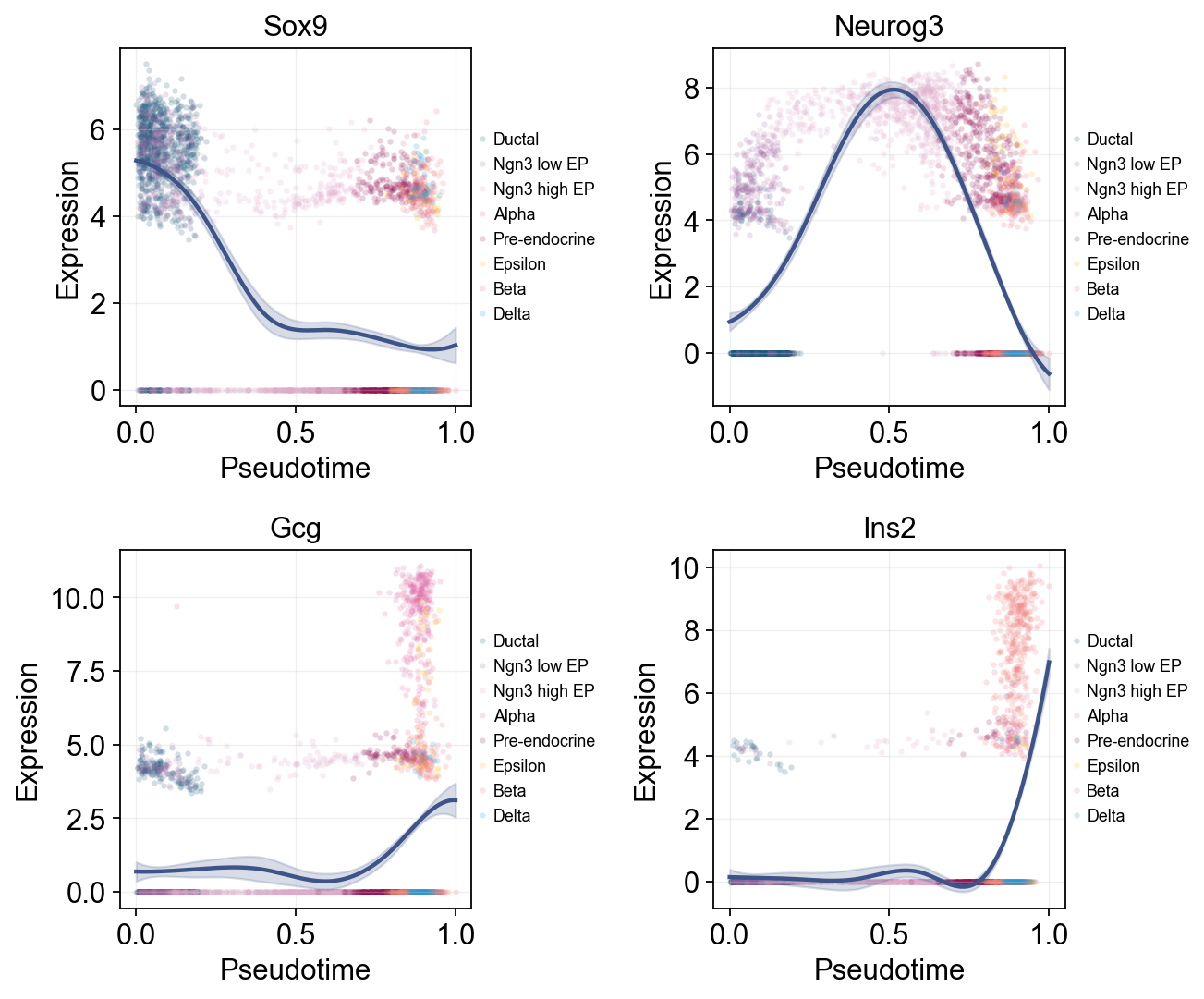

ov.pl.dynamic_trends(
diffusion_dyn,
genes=['Sox9', 'Neurog3', 'Gcg', 'Ins2'],
add_point=True,
point_color_by='clusters',
figsize=(5, 3.5),
ncols=2,
legend_loc='right margin',
legend_fontsize=8,
)
plt.show()
🔍 Dynamic trend plotting:
Features: 4 | Groups: 1
compare_features=False | compare_groups=False
✅ Dynamic trend plotting completed!
多标记基因趋势比较#
这里把多个 marker 的拟合曲线叠加在同一伪时间坐标中，方便直接比较不同程序的启动和衰减顺序。

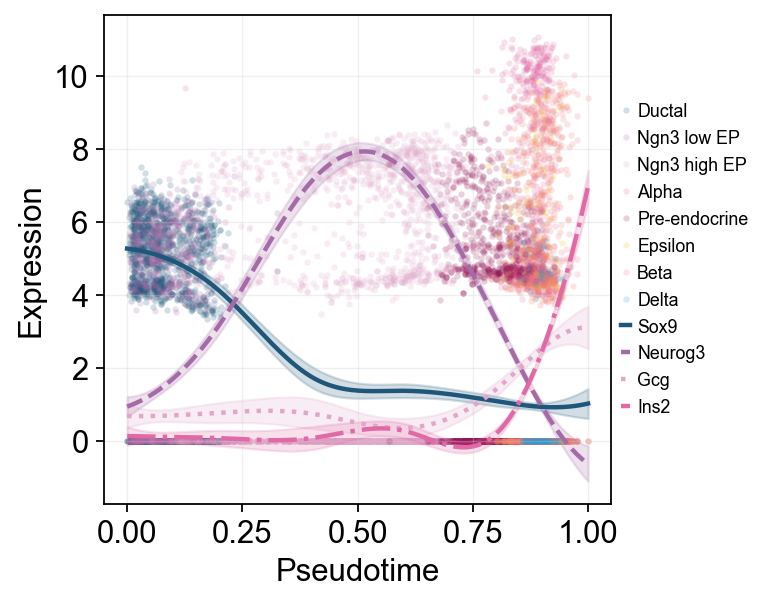

ov.pl.dynamic_trends(
diffusion_dyn,
genes=['Sox9', 'Neurog3', 'Gcg', 'Ins2'],
compare_features=True,
add_point=True,
point_color_by='clusters',
line_style_by='features',
figsize=(6, 4),
linewidth=2,
legend_loc='right margin',
legend_fontsize=8,
)
plt.show()
🔍 Dynamic trend plotting:
Features: 4 | Groups: 1
compare_features=True | compare_groups=False
✅ Dynamic trend plotting completed!
branch_clusters = ['Alpha', 'Beta']
split_mask = adata.obs['clusters'].astype(str).isin(['Ngn3 high EP', 'Pre-endocrine'])
diffusion_branch_dyn = ov.single.dynamic_features(
adata,
genes=['Gcg', 'Ins2', 'Pax4', 'Sox9'],
pseudotime='dpt_pseudotime',
groupby='clusters',
groups=branch_clusters,
use_raw=adata.raw is not None,
distribution='normal',
link='identity',
n_splines=8,
store_raw=True,
)
split_time = float(np.nanmedian(adata.obs.loc[split_mask, 'dpt_pseudotime'])) if split_mask.any() else float(np.nanmedian(adata.obs['dpt_pseudotime']))
🔍 Dynamic feature analysis:
Views: 2 | Features: 4
Pseudotime: dpt_pseudotime
Grouping: clusters
Expression source: adata.raw
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 8/8
✓ Fitted rows: 1600
✓ Raw observations stored: 4288

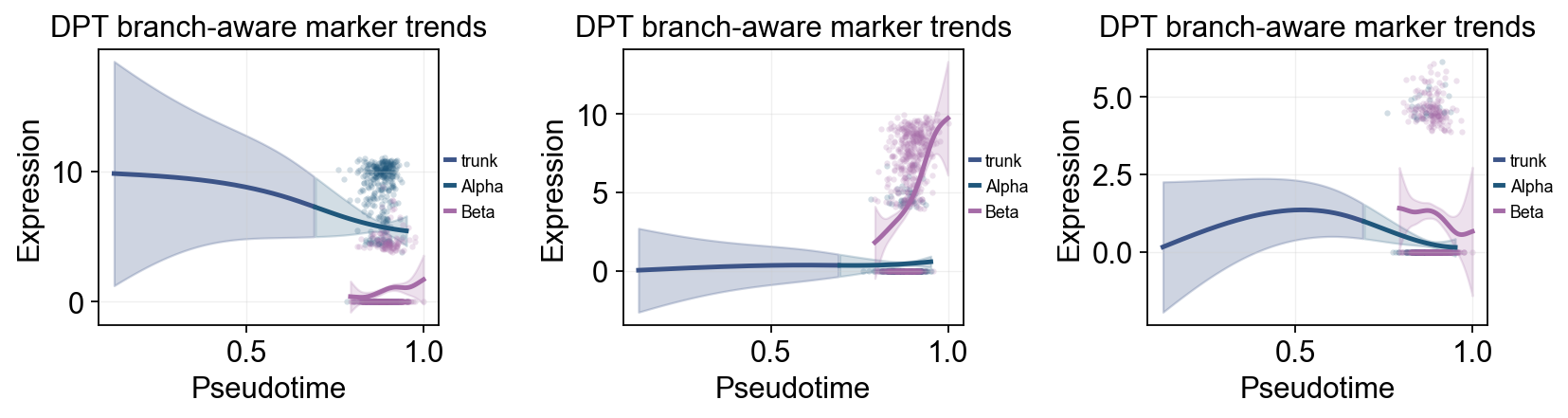

ov.pl.dynamic_trends(
diffusion_branch_dyn,
genes=['Gcg', 'Ins2', 'Pax4'],
compare_groups=True,
split_time=split_time,
shared_trunk=True,
add_point=True,
point_color_by='group',
figsize=(4.2, 3),
ncols=3,
linewidth=2.2,
legend_loc='right margin',
legend_fontsize=8,
title='DPT branch-aware marker trends',
)
plt.show()
🔍 Dynamic trend plotting:
Features: 3 | Groups: 2
compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!
使用 dynamic_heatmap 概括 DPT 标记基因程序#
ov.pl.dynamic_heatmap 可以把多组基因压缩成一张按伪时间排序的热图。这里用它检查 progenitor 和 endocrine fate marker 是否沿 DPT 伪时间按 stream plot 所提示的顺序启动。
dpt_marker = {
'Endocrine progenitor': ['Sox9', 'Neurog3', 'Fev'],
'Alpha fate': ['Gcg', 'Arx'],
'Beta fate': ['Pax4', 'Ins2', 'Pdx1'],
'Delta fate': ['Sst', 'Hhex'],
}

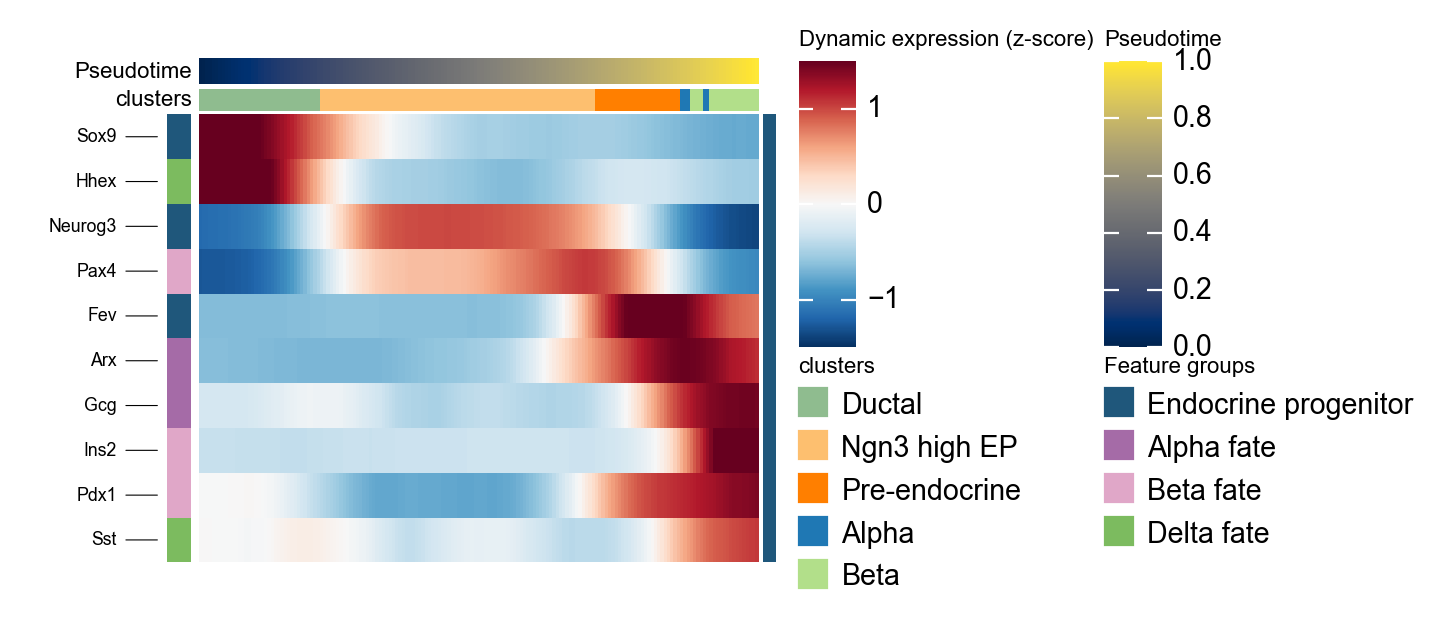

g = ov.pl.dynamic_heatmap(
adata,
var_names=dpt_marker,
pseudotime='dpt_pseudotime',
use_raw=adata.raw is not None,
use_cell_columns=False,
cell_annotation='clusters',
cell_bins=180,
smooth_window=17,
fitted_window=31,
figsize=(5, 4),
standard_scale='var',
cmap='RdBu_r',
use_fitted=True,
border=False,
show=False,
)
🔍 Dynamic heatmap:
Candidate features: 10
Pseudotime: dpt_pseudotime
Cell annotation: clusters
use_fitted=True | cell_bins=180 | cmap=RdBu_r
✅ Dynamic heatmap completed!
✓ Matrix shape: 10 features × 171 columns
