单细胞RNA-seq数据的比对和RNA速度分析

kallisto、bustools和kb-python程序是用于执行此分析的免费开源软件工具，它们可以从原始测序读数中产生基因表达定量。在本教程中，我们将使用kallisto | bustools工作流对来自La Manno et al., 2018的人类第10周胎脑数据集(SRR6470906)进行预处理和RNA速度分析。

我们在OmicVerse中改进了kallisto、bustools和kb-python程序的集成：

• 更加用户友好的函数实现：我们自动将它们封装到omicverse.alignment类中。

如果您发现本教程有帮助，请引用kb-python和OmicVerse：

• Sullivan, D.K., Min, K.H.(., Hjörleifsson, K.E. et al. kallisto, bustools and kb-python for quantifying bulk, single-cell and single-nucleus RNA-seq. Nature Protocol (2025).https://doi.org/10.1038/s41596-024-01057-0

• Melsted, P., Booeshaghi, A.S., Liu, L. et al. Modular, efficient and constant-memory single-cell RNA-seq preprocessing. Nature Biotechnology (2021). https://doi.org/10.1038/s41587-021-00870-2

import omicverse as ovimport scanpy as scimport pandas as pdimport numpy as npov.plot_set(font_path='Arial')

🔬 Starting plot initialization...
Using already downloaded Arial font from: /tmp/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ NVIDIA CUDA GPUs detected: 8
    • [CUDA 0] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 1] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 2] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 3] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 4] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 5] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 6] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
    • [CUDA 7] NVIDIA GeForce RTX 4090 D
      Memory: 23.6 GB | Compute: 8.9
✅ plot_set complete.

下载人类参考文件并构建索引

我们从Ensembl提供的人类基因组和注释中构建人类cDNA和内含子索引。

%%time!wget -P velocity ftp://ftp.ensembl.org/pub/release-108/fasta/homo_sapiens/dna/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz!wget -P velocity ftp://ftp.ensembl.org/pub/release-108/gtf/homo_sapiens/Homo_sapiens.GRCh38.108.gtf.gz

--2025-10-24 06:42:54--  ftp://ftp.ensembl.org/pub/release-108/fasta/homo_sapiens/dna/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz
           => ‘velocity/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz.1’
Resolving ftp.ensembl.org (ftp.ensembl.org)... ^C
--2025-10-24 06:42:57--  ftp://ftp.ensembl.org/pub/release-108/gtf/homo_sapiens/Homo_sapiens.GRCh38.108.gtf.gz
           => ‘velocity/Homo_sapiens.GRCh38.108.gtf.gz.1’
Resolving ftp.ensembl.org (ftp.ensembl.org)... 193.62.193.169
Connecting to ftp.ensembl.org (ftp.ensembl.org)|193.62.193.169|:21... connected.
Logging in as anonymous ... Logged in!
==> SYST ... done.    ==> PWD ... done.
==> TYPE I ... done.  ==> CWD (1) /pub/release-108/gtf/homo_sapiens ... done.
==> SIZE Homo_sapiens.GRCh38.108.gtf.gz ... 54107597
==> PASV ... done.    ==> RETR Homo_sapiens.GRCh38.108.gtf.gz ... ^C
CPU times: user 2.13 s, sys: 404 ms, total: 2.54 s
Wall time: 5.89 s

在这里，我们构建人类RNA速度索引，您可以查看此笔记本了解有关如何构建RNA速度索引的更多详细信息。

# 输入文件路径
# 生成RNA速度索引
result=ov.alignment.single.ref(
    fasta_paths='velocity/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz', # 输入
    gtf_paths='velocity/Homo_sapiens.GRCh38.108.gtf.gz', # 输入
    index_path='velocity/index.idx',  # 输出
    t2g_path='velocity/t2g.txt',  # 输出
    cdna_path='velocity/cdna.fa',  # 输出
    f2='velocity/intron.fa',  # 输出
    c1='velocity/cdna_t2c.txt',  # 输出
    c2='velocity/intron_t2c.txt',  # 输出
    workflow='lamanno',
    threads=8
)
print(result.keys())

🚀 Starting ref workflow: lamanno
    Using temporary directory: tmp-kb-06ff3e80a53545f3920a4681bc45da78
>> /opt/miniforge/envs/omicverse_working/bin/kb ref --workflow lamanno --tmp tmp-kb-06ff3e80a53545f3920a4681bc45da78 -i velocity/index.idx -g velocity/t2g.txt -t 8 --d-list-overhang 1 -f1 velocity/cdna.fa -f2 velocity/intron.fa -c1 velocity/cdna_t2c.txt -c2 velocity/intron_t2c.txt velocity/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz velocity/Homo_sapiens.GRCh38.108.gtf.gz
[2025-10-29 07:41:52,381]    INFO [ref_lamanno] Preparing velocity/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz, velocity/Homo_sapiens.GRCh38.108.gtf.gz
[2025-10-29 07:42:56,969]    INFO [ref_lamanno] Splitting genome velocity/Homo_sapiens.GRCh38.dna.primary_assembly.fa.gz into cDNA at /data/hulei/Projects/Omicverse_2/omicverse_update/tmp-kb-06ff3e80a53545f3920a4681bc45da78/tmpd6_5n02u
[2025-10-29 07:44:26,416]    INFO [ref_lamanno] Creating cDNA transcripts-to-capture at /data/hulei/Projects/Omicverse_2/omicverse_update/tmp-kb-06ff3e80a53545f3920a4681bc45da78/tmp4uoqoscv
[2025-10-29 07:44:30,592]    INFO [ref_lamanno] Splitting genome into introns at /data/hulei/Projects/Omicverse_2/omicverse_update/tmp-kb-06ff3e80a53545f3920a4681bc45da78/tmpuqw6zk3j
[2025-10-29 07:53:31,728]    INFO [ref_lamanno] Creating intron transcripts-to-capture at /data/hulei/Projects/Omicverse_2/omicverse_update/tmp-kb-06ff3e80a53545f3920a4681bc45da78/tmppqqiuleo
[2025-10-29 07:55:05,492]    INFO [ref_lamanno] Concatenating 1 cDNA FASTAs to velocity/cdna.fa
[2025-10-29 07:55:09,790]    INFO [ref_lamanno] Concatenating 1 cDNA transcripts-to-captures to velocity/cdna_t2c.txt
[2025-10-29 07:55:09,870]    INFO [ref_lamanno] Concatenating 1 intron FASTAs to velocity/intron.fa
[2025-10-29 07:56:41,579]    INFO [ref_lamanno] Concatenating 1 intron transcripts-to-captures to velocity/intron_t2c.txt
[2025-10-29 07:56:42,243]    INFO [ref_lamanno] Concatenating cDNA and intron FASTAs to /data/hulei/Projects/Omicverse_2/omicverse_update/tmp-kb-06ff3e80a53545f3920a4681bc45da78/tmp11ndpu2o
[2025-10-29 07:59:43,573]    INFO [ref_lamanno] Creating transcript-to-gene mapping at velocity/t2g.txt
[2025-10-29 08:01:22,179]    INFO [ref_lamanno] Indexing /data/hulei/Projects/Omicverse_2/omicverse_update/tmp-kb-06ff3e80a53545f3920a4681bc45da78/tmp11ndpu2o to velocity/index.idx
✓ ref workflow completed!
dict_keys(['workflow', 'technology', 'parameters', 'index_path', 't2g_path', 'cdna_path'])

生成RNA速度计数矩阵

以下命令将生成H5AD格式的RNA计数矩阵（行表示细胞，列表示基因），这是用于存储Anndata对象的二进制格式。注意，我们分别向-i和-g参数提供了在前一步骤中下载的索引和转录本到基因的映射，以及向-c1和-c2参数提供了转录本捕获列表。此外，这些读取是使用10x Genomics Chromium单细胞v2化学试剂生成的，因此使用了-x 10xv2参数。

!wget -P velocity https://caltech.box.com/shared/static/nvzqphhklk1yx938l6omursw7sr68y43.gz -O SRR6470906_S1_L001_R1_001.fastq.gz!wget -P velocity https://caltech.box.com/shared/static/63fh2xa5t82x7s74rqa0e2u2ur59y5ox.gz -O SRR6470906_S1_L001_R2_001.fastq.gz!wget -P velocity https://caltech.box.com/shared/static/zqi3durukillaw1pbns1kd1lowyfg5qk.gz -O SRR6470906_S1_L002_R1_001.fastq.gz!wget -P velocity https://caltech.box.com/shared/static/i56qojfz41ns1kw9z86sla0vawsch96t.gz -O SRR6470906_S1_L002_R2_001.fastq.gz

# 生成RNA速度计数矩阵
result=ov.alignment.single.count(
    fastq_paths=['velocity/SRR6470906_S1_L001_R1_001.fastq.gz', # 输入
                 'velocity/SRR6470906_S1_L001_R2_001.fastq.gz', # 输入
                 'velocity/SRR6470906_S1_L002_R1_001.fastq.gz', # 输入
                 'velocity/SRR6470906_S1_L002_R2_001.fastq.gz'], # 输入
    output_path='velocity/SRR6470906', # 输出
    index_path='velocity/index.idx', # 输入
    t2g_path='velocity/t2g.txt', # 输入
    c1='velocity/cdna_t2c.txt', # 输入
    c2='velocity/intron_t2c.txt', # 输入
    technology='10xv2',
    workflow='lamanno',
    h5ad=True,
    filter_barcodes=True,
)
print(result.keys())

🚀 Starting count workflow: lamanno
    Technology: 10xv2
    Output directory: velocity/SRR6470906
    Using temporary directory: tmp-kb-8f35dcc278fb4900b238db3d4c120f14
>> /opt/miniforge/envs/omicverse_working/bin/kb count --workflow lamanno --tmp tmp-kb-8f35dcc278fb4900b238db3d4c120f14 -i velocity/index.idx -g velocity/t2g.txt -x 10xv2 -o velocity/SRR6470906 -c1 velocity/cdna_t2c.txt -c2 velocity/intron_t2c.txt -t 8 -m 2G --filter bustools --h5ad -c1 velocity/cdna_t2c.txt -c2 velocity/intron_t2c.txt velocity/SRR6470906_S1_L001_R1_001.fastq.gz velocity/SRR6470906_S1_L001_R2_001.fastq.gz velocity/SRR6470906_S1_L002_R1_001.fastq.gz velocity/SRR6470906_S1_L002_R2_001.fastq.gz
[2025-10-29 10:56:35,097]    INFO [count_lamanno] Skipping kallisto bus because output files already exist. Use the --overwrite flag to overwrite.
[2025-10-29 10:56:35,097]    INFO [count_lamanno] Sorting BUS file velocity/SRR6470906/output.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.s.bus
[2025-10-29 10:57:49,007]    INFO [count_lamanno] On-list not provided
[2025-10-29 10:57:49,007]    INFO [count_lamanno] Copying pre-packaged 10XV2 on-list to velocity/SRR6470906
[2025-10-29 10:57:49,188]    INFO [count_lamanno] Inspecting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.s.bus
[2025-10-29 10:57:53,696]    INFO [count_lamanno] Correcting BUS records in tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.s.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.s.c.bus with on-list velocity/SRR6470906/10x_version2_whitelist.txt
[2025-10-29 10:58:24,943]    INFO [count_lamanno] Sorting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.s.c.bus to velocity/SRR6470906/output.unfiltered.bus
[2025-10-29 10:59:30,140]    INFO [count_lamanno] Capturing records from BUS file velocity/SRR6470906/output.unfiltered.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/spliced.bus with capture list velocity/intron_t2c.txt
[2025-10-29 11:00:02,890]    INFO [count_lamanno] Sorting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/spliced.bus to velocity/SRR6470906/spliced.unfiltered.bus
[2025-10-29 11:00:23,621]    INFO [count_lamanno] Inspecting BUS file velocity/SRR6470906/spliced.unfiltered.bus
[2025-10-29 11:00:26,426]    INFO [count_lamanno] Generating count matrix velocity/SRR6470906/counts_unfiltered/spliced from BUS file velocity/SRR6470906/spliced.unfiltered.bus
[2025-10-29 11:00:58,495]    INFO [count_lamanno] Capturing records from BUS file velocity/SRR6470906/output.unfiltered.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/unspliced.bus with capture list velocity/cdna_t2c.txt
[2025-10-29 11:01:13,821]    INFO [count_lamanno] Sorting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/unspliced.bus to velocity/SRR6470906/unspliced.unfiltered.bus
[2025-10-29 11:01:20,232]    INFO [count_lamanno] Inspecting BUS file velocity/SRR6470906/unspliced.unfiltered.bus
[2025-10-29 11:01:22,136]    INFO [count_lamanno] Generating count matrix velocity/SRR6470906/counts_unfiltered/unspliced from BUS file velocity/SRR6470906/unspliced.unfiltered.bus
[2025-10-29 11:01:41,457]    INFO [count_lamanno] Reading matrix velocity/SRR6470906/counts_unfiltered/spliced.mtx
[2025-10-29 11:01:54,826]    INFO [count_lamanno] Reading matrix velocity/SRR6470906/counts_unfiltered/unspliced.mtx
[2025-10-29 11:02:01,769]    INFO [count_lamanno] Combining matrices
[2025-10-29 11:02:02,357]    INFO [count_lamanno] Writing matrices to h5ad velocity/SRR6470906/counts_unfiltered/adata.h5ad
[2025-10-29 11:02:07,062]    INFO [count_lamanno] Filtering with bustools
[2025-10-29 11:02:07,062]    INFO [count_lamanno] Generating on-list velocity/SRR6470906/filter_barcodes.txt from BUS file velocity/SRR6470906/output.unfiltered.bus
[2025-10-29 11:02:08,466]    INFO [count_lamanno] Correcting BUS records in velocity/SRR6470906/output.unfiltered.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.unfiltered.c.bus with on-list velocity/SRR6470906/filter_barcodes.txt
[2025-10-29 11:02:34,507]    INFO [count_lamanno] Sorting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/output.unfiltered.c.bus to velocity/SRR6470906/output.filtered.bus
[2025-10-29 11:02:59,446]    INFO [count_lamanno] Capturing records from BUS file velocity/SRR6470906/output.filtered.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/spliced.bus with capture list velocity/intron_t2c.txt
[2025-10-29 11:03:28,192]    INFO [count_lamanno] Sorting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/spliced.bus to velocity/SRR6470906/spliced.filtered.bus
[2025-10-29 11:03:44,918]    INFO [count_lamanno] Generating count matrix velocity/SRR6470906/counts_filtered/spliced from BUS file velocity/SRR6470906/spliced.filtered.bus
[2025-10-29 11:04:08,504]    INFO [count_lamanno] Capturing records from BUS file velocity/SRR6470906/output.filtered.bus to tmp-kb-8f35dcc278fb4900b238db3d4c120f14/unspliced.bus with capture list velocity/cdna_t2c.txt
[2025-10-29 11:04:20,926]    INFO [count_lamanno] Sorting BUS file tmp-kb-8f35dcc278fb4900b238db3d4c120f14/unspliced.bus to velocity/SRR6470906/unspliced.filtered.bus
[2025-10-29 11:04:27,037]    INFO [count_lamanno] Generating count matrix velocity/SRR6470906/counts_filtered/unspliced from BUS file velocity/SRR6470906/unspliced.filtered.bus
[2025-10-29 11:04:46,158]    INFO [count_lamanno] Reading matrix velocity/SRR6470906/counts_filtered/spliced.mtx
[2025-10-29 11:04:54,852]    INFO [count_lamanno] Reading matrix velocity/SRR6470906/counts_filtered/unspliced.mtx
[2025-10-29 11:05:00,831]    INFO [count_lamanno] Combining matrices
[2025-10-29 11:05:01,166]    INFO [count_lamanno] Writing matrices to h5ad velocity/SRR6470906/counts_filtered/adata.h5ad
✓ count workflow completed!
dict_keys(['workflow', 'technology', 'output_path', 'parameters'])

分析

在本教程的这一部分中，我们将把kb count生成的RNA计数矩阵加载到Python中，并使用omicverse管道对其进行分析。

您可以在此网站上找到有关这些代码的更多详细信息。

adata = sc.read_h5ad("velocity/SRR6470906/counts_filtered/adata.h5ad")adata.layers['spliced'] = adata.layers['mature']adata.layers['unspliced'] = adata.layers['nascent']

velo_obj=ov.single.Velo(adata)velo_obj.filter_genes(min_shared_counts=20)velo_obj.preprocess()

In Velo module, you should keep all genes' expression not normalized.
Filtered out 53587 genes that are detected 20 counts (shared).
|-----> Running monocle preprocessing pipeline...
|-----> convert ensemble name to official gene name
|-----? Your adata object uses non-official gene names as gene index.
Dynamo is converting those names to official gene names.
|-----> Storing myGene name info into local cache db: mygene_cache.sqlite.
|-----> Subsetting adata object and removing Nan columns from adata when converting gene names.
|-----------> filtered out 1151 outlier cells
|-----------> filtered out 1502 outlier genes
|-----> PCA dimension reduction
|-----> <insert> X_pca to obsm in AnnData Object.
|-----> computing cell phase...
|-----> [Cell Phase Estimation] completed [65.5472s]
|-----> [Cell Cycle Scores Estimation] completed [0.3818s]
|-----> [Preprocessor-monocle] completed [13.5334s]
🖥️ Using Scanpy CPU to calculate neighbors...

🔍 K-Nearest Neighbors Graph Construction:
   Mode: cpu
   Neighbors: 30
   Method: umap
   Metric: euclidean
   Representation: X_pca
   PCs used: 30
computing neighbors
   🔍 Computing neighbor distances...
   🔍 Computing connectivity matrix...
   💡 Using UMAP-style connectivity
   ✓ Graph is fully connected

✅ KNN Graph Construction Completed Successfully!
   ✓ Processed: 4,331 cells with 30 neighbors each
   ✓ Results added to AnnData object:
     • 'neighbors': Neighbors metadata (adata.uns)
     • 'distances': Distance matrix (adata.obsp)
     • 'connectivities': Connectivity matrix (adata.obsp)
    finished: added to `.uns['neighbors']`
    `.obsp['distances']`, distances for each pair of neighbors
    `.obsp['connectivities']`, weighted adjacency matrix (0:00:00)

velo_obj.moments(backend='scvelo')velo_obj.dynamics(backend='scvelo',n_jobs=8)velo_obj.cal_velocity(method='scvelo')

WARNING: Did not normalize X as it looks processed already. To enforce normalization, set `enforce=True`.
Normalized count data: spliced, unspliced.
computing moments based on connectivities
    finished (0:00:05) --> added
    'Ms' and 'Mu', moments of un/spliced abundances (adata.layers)
recovering dynamics (using 8/384 cores)
finished (0:01:22) --> added
    'fit_pars', fitted parameters for splicing dynamics (adata.var)
computing velocities
finished (0:00:02) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)

velo_obj.velocity_graph(    vkey='velocity_S',    xkey='Ms',    n_jobs=8,)

computing velocity graph (using 8/384 cores)
finished (0:00:03) --> added
    'velocity_S_graph', sparse matrix with cosine correlations (adata.uns)

ov.pp.neighbors(adata, n_neighbors=15,                use_rep='X_pca')ov.pp.umap(adata)ov.pp.leiden(adata,resolution=0.2)

🖥️ Using Scanpy CPU to calculate neighbors...

🔍 K-Nearest Neighbors Graph Construction:
   Mode: cpu
   Neighbors: 15
   Method: umap
   Metric: euclidean
   Representation: X_pca
computing neighbors
   🔍 Computing neighbor distances...
   🔍 Computing connectivity matrix...
   💡 Using UMAP-style connectivity
   ✓ Graph is fully connected

✅ KNN Graph Construction Completed Successfully!
   ✓ Processed: 4,331 cells with 15 neighbors each
   ✓ Results added to AnnData object:
     • 'neighbors': Neighbors metadata (adata.uns)
     • 'distances': Distance matrix (adata.obsp)
     • 'connectivities': Connectivity matrix (adata.obsp)
    finished: added to `.uns['neighbors']`
    `.obsp['distances']`, distances for each pair of neighbors
    `.obsp['connectivities']`, weighted adjacency matrix (0:00:00)
🔍 [2025-10-29 11:08:02] Running UMAP in 'cpu' mode...
🖥️ Using Scanpy CPU UMAP...

🔍 UMAP Dimensionality Reduction:
   Mode: cpu
   Method: umap
   Components: 2
   Min distance: 0.5
{'n_neighbors': 15, 'method': 'umap', 'random_state': 0, 'metric': 'euclidean', 'use_rep': 'X_pca'}
   🔍 Computing UMAP parameters...
   🔍 Computing UMAP embedding (classic method)...

✅ UMAP Dimensionality Reduction Completed Successfully!
   ✓ Embedding shape: 4,331 cells × 2 dimensions
   ✓ Results added to AnnData object:
     • 'X_umap': UMAP coordinates (adata.obsm)
     • 'umap': UMAP parameters (adata.uns)
✅ UMAP completed successfully.
🖥️ Using Scanpy CPU Leiden...
running Leiden clustering
    finished: found 12 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)

velo_obj.velocity_embedding(    basis='umap',    vkey='velocity_S',)

computing velocity embedding
    finished (0:00:00) --> added
    'velocity_S_umap', embedded velocity vectors (adata.obsm)

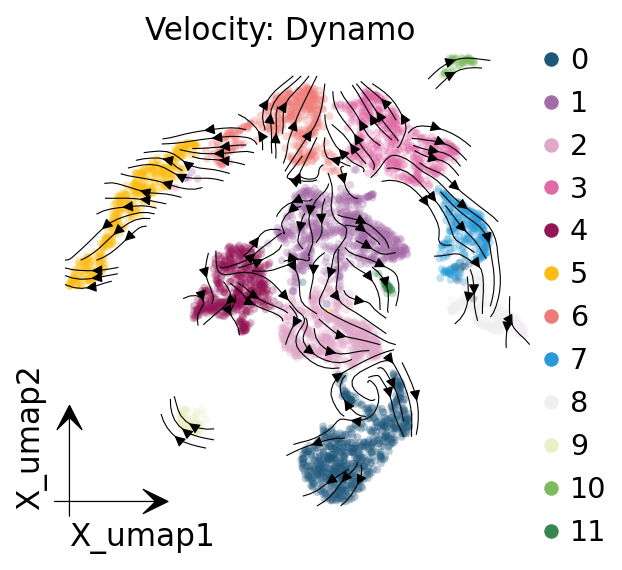

fig = ov.plt.figure(figsize=(4, 4))ax = ov.plt.subplot(1, 1, 1)ov.pl.embedding(    adata,    basis='X_umap',    color='leiden',    ax=ax,    show=False,    size=50,    alpha=0.3)ov.pl.add_streamplot(    adata,    basis='X_umap',    velocity_key='velocity_S_umap',    ax=ax,)ov.plt.title('Velocity: Dynamo')

Text(0.5, 1.0, 'Velocity: Dynamo')
