WGCNA（加权基因共表达网络分析）分析

加权基因共表达网络分析（WGCNA）是一种系统生物学方法，用于表征不同样本之间的基因关联模式，可用于识别高度协同的基因集，并根据基因集的内生性及基因集与表型的关联来识别候选生物标志物基因或治疗靶点。

Paper: WGCNA: an R package for weighted correlation network analysis

Narges Rezaie, Farilie Reese, Ali Mortazavi, PyWGCNA: a Python package for weighted gene co-expression network analysis, Bioinformatics, Volume 39, Issue 7, July 2023, btad415, https://doi.org/10.1093/bioinformatics/btad415

Code: Reproduce by Python. Raw is http://www.genetics.ucla.edu/labs/horvath/CoexpressionNetwork/Rpackages/WGCNA

Colab_Reproducibility：https://colab.research.google.com/drive/1EbP-Tq1IwYO9y1_-zzw23XlPbzrxP0og?usp=sharing

在此，您将简要了解如何使用omicverse执行WGCNA分析的基础知识。

import scanpy as sc
import omicverse as ov
import matplotlib.pyplot as plt
ov.plot_set()

____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

Version: 1.6.7, Tutorials: https://omicverse.readthedocs.io/
All dependencies are satisfied.

加载数据

分析基于内置的WGCNA教程数据。所有数据可从以下地址下载：mortazavilab/PyWGCNA

import pandas as pd
data=ov.utils.read('data/5xFAD_paper/expressionList.csv',
                           index_col=0)
data.head()

	ENSMUSG00000000003	ENSMUSG00000000028	ENSMUSG00000000031	ENSMUSG00000000037	ENSMUSG00000000049	ENSMUSG00000000056	ENSMUSG00000000058	ENSMUSG00000000078	ENSMUSG00000000085	ENSMUSG00000000088	...	ENSMUSG00000118383	ENSMUSG00000118384	ENSMUSG00000118385	ENSMUSG00000118386	ENSMUSG00000118387	ENSMUSG00000118388	ENSMUSG00000118389	ENSMUSG00000118390	ENSMUSG00000118391	ENSMUSG00000118392
sample_id
X4mo_cortex_F_5xFADHEMI_430	0.0	1.90	0.00	0.13	0.43	22.37	24.24	19.32	33.41	620.45	...	0.75	0.0	0.00	0.00	0.0	0.0	0.0	0.0	0.04	0.0
X4mo_cortex_F_5xFADHEMI_431	0.0	1.10	0.06	0.07	0.18	16.99	24.69	23.88	31.40	705.73	...	0.67	0.0	0.55	0.43	0.0	0.0	0.0	0.0	0.00	0.0
X4mo_cortex_F_5xFADHEMI_433	0.0	1.18	0.07	0.13	1.90	20.37	28.06	21.33	32.14	699.50	...	0.91	0.0	0.00	0.19	0.0	0.0	0.0	0.0	0.02	0.0
X4mo_cortex_F_5xFADHEMI_434	0.0	2.18	0.00	0.07	0.31	17.98	21.46	15.06	27.60	639.95	...	0.11	0.0	0.00	0.00	0.0	0.0	0.0	0.0	0.00	0.0
X4mo_cortex_F_5xFADHEMI_511	0.0	1.50	0.10	0.14	0.53	18.35	20.18	18.66	26.43	640.55	...	0.64	0.0	1.38	0.00	0.0	0.0	0.0	0.0	0.02	0.0

5 rows × 55448 columns

from statsmodels import robust #import package
gene_mad=data.apply(robust.mad) #use function to calculate MAD
data=data.T
data=data.loc[gene_mad.sort_values(ascending=False).index[:2000]]
data.head()

sample_id	X4mo_cortex_F_5xFADHEMI_430	X4mo_cortex_F_5xFADHEMI_431	X4mo_cortex_F_5xFADHEMI_433	X4mo_cortex_F_5xFADHEMI_434	X4mo_cortex_F_5xFADHEMI_511	X4mo_cortex_F_5xFADWT_330	X4mo_cortex_F_5xFADWT_331	X4mo_cortex_F_5xFADWT_432	X4mo_cortex_F_5xFADWT_507	X4mo_cortex_F_5xFADWT_518	...	X18mo_hipp_M_5xFADHEMI_567	X18mo_hipp_M_5xFADHEMI_617	X18mo_hipp_M_5xFADHEMI_627	X18mo_hipp_M_5xFADHEMI_640	X18mo_hipp_M_5xFADHEMI_786	X18mo_hipp_M_5xFADWT_301	X18mo_hipp_M_5xFADWT_566	X18mo_hipp_M_5xFADWT_641	X18mo_hipp_M_5xFADWT_643	X18mo_hipp_M_5xFADWT_785
ENSMUSG00000099250	38274.46	45547.41	40835.79	35162.62	52371.17	42761.19	46116.59	43595.89	50531.39	46891.88	...	36696.94	59031.53	44038.38	39537.58	43637.47	30459.36	12742.01	32803.24	38164.91	46018.27
ENSMUSG00000099021	38274.46	36885.85	46409.95	41388.72	54608.70	38940.59	52898.07	32184.16	43387.97	42442.50	...	36696.94	59031.53	37772.09	33995.79	28730.09	30459.36	12742.01	32803.24	38164.91	46018.27
ENSMUSG00000064356	13048.33	13904.76	12283.33	10654.36	11040.40	10112.12	9930.95	14263.90	14124.68	10331.52	...	26344.45	28834.11	26020.02	29152.34	24033.60	33013.99	35575.40	34328.79	27952.62	23539.78
ENSMUSG00000102070	6323.94	6086.47	6421.64	4967.26	6173.10	6186.12	4916.20	7770.57	5725.27	5272.50	...	16.31	0.01	0.00	0.00	0.00	0.00	0.14	0.00	0.00	0.00
ENSMUSG00000064357	24524.58	25345.63	27358.45	22902.01	20973.69	22306.31	23962.79	25748.21	23760.62	20068.35	...	22878.69	25651.64	22606.07	25008.25	21907.32	28164.62	30592.58	28184.02	24615.69	24156.82

5 rows × 192 columns

#import PyWGCNA
pyWGCNA_5xFAD = ov.bulk.pyWGCNA(name='5xFAD_2k',
                              species='mus musculus',
                              geneExp=data.T,
                              outputPath='',
                              save=True)
pyWGCNA_5xFAD.geneExpr.to_df().head(5)

Saving data to be True, checking requirements ...

	ENSMUSG00000099250	ENSMUSG00000099021	ENSMUSG00000064356	ENSMUSG00000102070	ENSMUSG00000064357	ENSMUSG00000106106	ENSMUSG00000101111	ENSMUSG00000064354	ENSMUSG00000064339	ENSMUSG00000064337	...	ENSMUSG00000032407	ENSMUSG00000001383	ENSMUSG00000026965	ENSMUSG00000021423	ENSMUSG00000033006	ENSMUSG00000060371	ENSMUSG00000045302	ENSMUSG00000052033	ENSMUSG00000003166	ENSMUSG00000022536
sample_id
X4mo_cortex_F_5xFADHEMI_430	38274.46	38274.46	13048.33	6323.94	24524.58	4382.70	14720.04	5719.72	5697.65	5512.88	...	16.39	117.19	68.52	43.05	12.42	43.30	79.31	35.00	57.63	86.61
X4mo_cortex_F_5xFADHEMI_431	45547.41	36885.85	13904.76	6086.47	25345.63	6045.83	15258.06	5484.94	6660.83	6870.51	...	19.84	127.13	60.90	39.82	25.63	51.73	64.67	39.35	51.67	82.65
X4mo_cortex_F_5xFADHEMI_433	40835.79	46409.95	12283.33	6421.64	27358.45	3611.95	16391.84	6015.36	6529.01	6843.43	...	16.08	118.16	67.46	50.15	28.76	60.93	71.49	34.67	56.30	87.20
X4mo_cortex_F_5xFADHEMI_434	35162.62	41388.72	10654.36	4967.26	22902.01	5336.76	14207.71	6440.73	5287.13	5244.33	...	14.58	113.54	59.20	31.26	34.34	67.71	61.14	31.38	56.13	76.05
X4mo_cortex_F_5xFADHEMI_511	52371.17	54608.70	11040.40	6173.10	20973.69	7221.82	13444.75	4451.85	5671.34	6160.46	...	17.60	116.65	61.78	28.27	34.48	66.95	64.82	22.43	58.19	78.15

5 rows × 2000 columns

预处理工作流程

PyWGCNA允许您轻松预处理数据，包括删除缺失值过多的基因或在样本中低表达的基因（默认情况下，我们建议删除表达量低于1 TPM的基因）以及删除缺失值过多的样本。请记住，这些选项可以通过更改TPMcutoff和cut来调整。

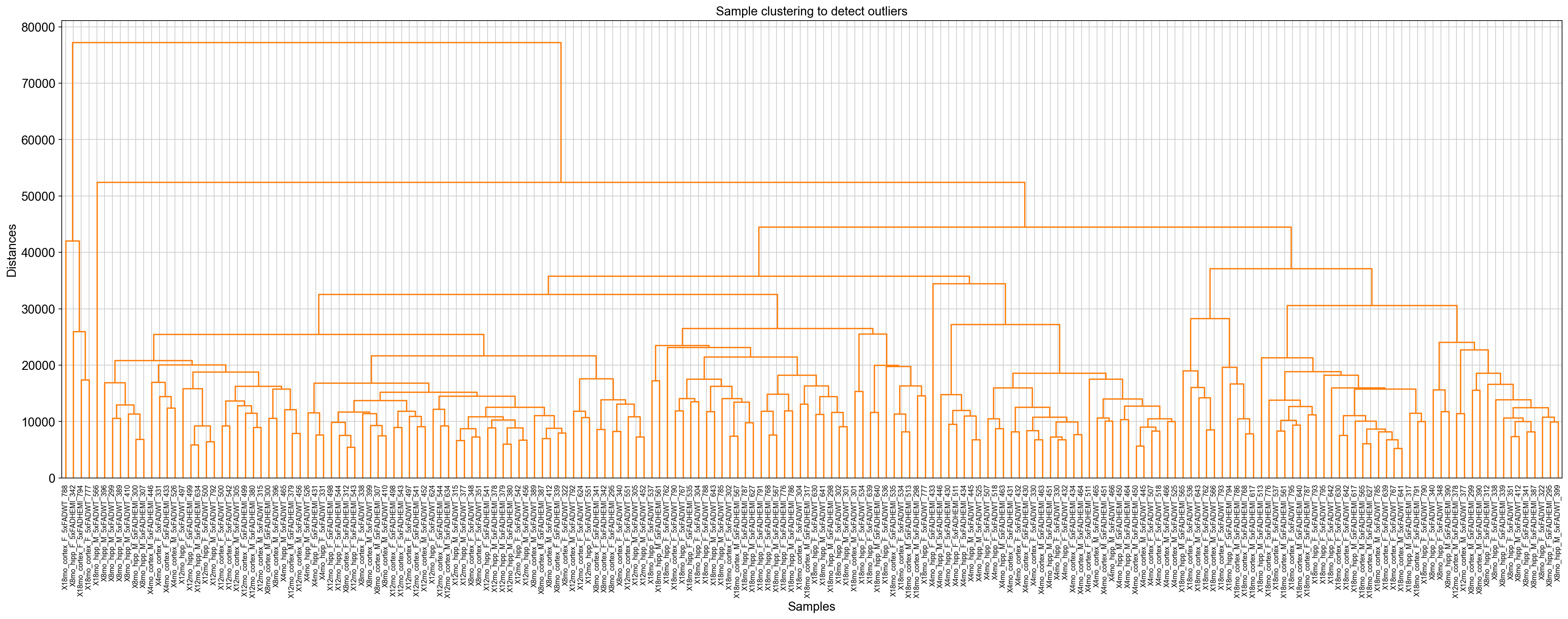

pyWGCNA_5xFAD.preprocess()

Pre-processing...
	Detecting genes and samples with too many missing values...
	Done pre-processing..

构建基因网络和识别模块

PyWGCNA将网络构建和模块检测的所有步骤压缩到一个名为findModules的函数中，该函数执行以下步骤：

1. 选择软阈值幂：网络拓扑分析

2. 共表达相似性和邻接矩阵

3. 拓扑重叠矩阵（TOM）

4. 基于TOM的聚类

5. 合并表达谱非常相似的模块

在本教程中，我们将逐步执行分析。

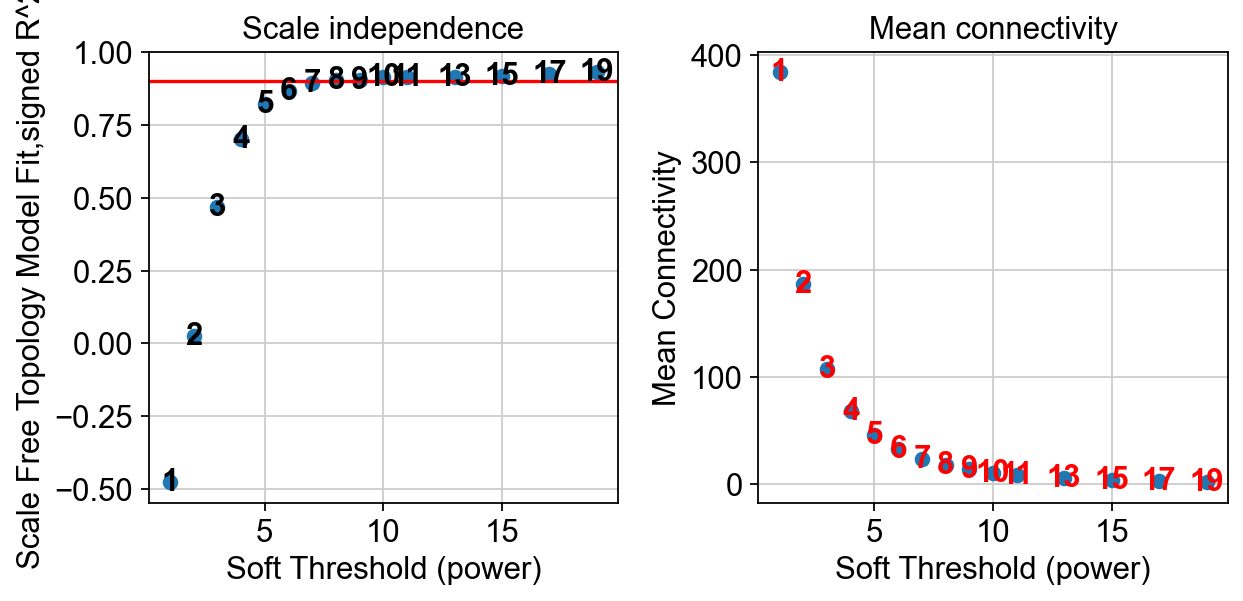

pyWGCNA_5xFAD.calculate_soft_threshold()

Run pyWGCNA...
pickSoftThreshold: calculating connectivity for given powers...
will use block size  2000
    Power  SFT.R.sq     slope truncated R.sq     mean(k)   median(k)  \
0       1  0.475634  0.858089       0.916615  384.051226   365.47651
1       2  0.024359  -0.12182       0.744927  187.032023  156.365157
2       3  0.467144 -0.639564       0.811331  107.526153   82.679754
3       4  0.700621 -0.901753       0.891559   68.076955   49.542257
4       5  0.822088  -1.08531       0.951344   45.940993   31.233385
5       6  0.865329 -1.199273       0.964283   32.453619   21.109319
6       7  0.891881  -1.25357       0.981805    23.73344   14.598084
7       8  0.902572 -1.323021        0.98498   17.836142   10.342337
8       9  0.902377 -1.373948       0.978787    13.70429    7.363482
9      10  0.914352 -1.389264       0.986473   10.725253    5.465437
10     11  0.913148 -1.411199       0.985258    8.525814    4.015487
11     13  0.914821 -1.453348       0.985572    5.599609    2.303557
12     15  0.915594 -1.462192       0.975418    3.834091    1.385649
13     17  0.924773 -1.464537       0.983127     2.71403      0.8921
14     19  0.929837 -1.472707       0.985362    1.974494    0.574689

        max(k)
0   693.078408
1   435.524992
2   307.107883
3   229.135821
4   177.363314
5   140.898711
6   114.120987
7    94.281721
8    78.981805
9    66.861011
10   57.108349
11   42.602877
12   32.562859
13    25.38005
14   20.226308
Selected power to have scale free network is 8.

pyWGCNA_5xFAD.calculating_adjacency_matrix()

calculating adjacency matrix ...
	Done..

pyWGCNA_5xFAD.calculating_TOM_similarity_matrix()

calculating TOM similarity matrix ...
	Done..

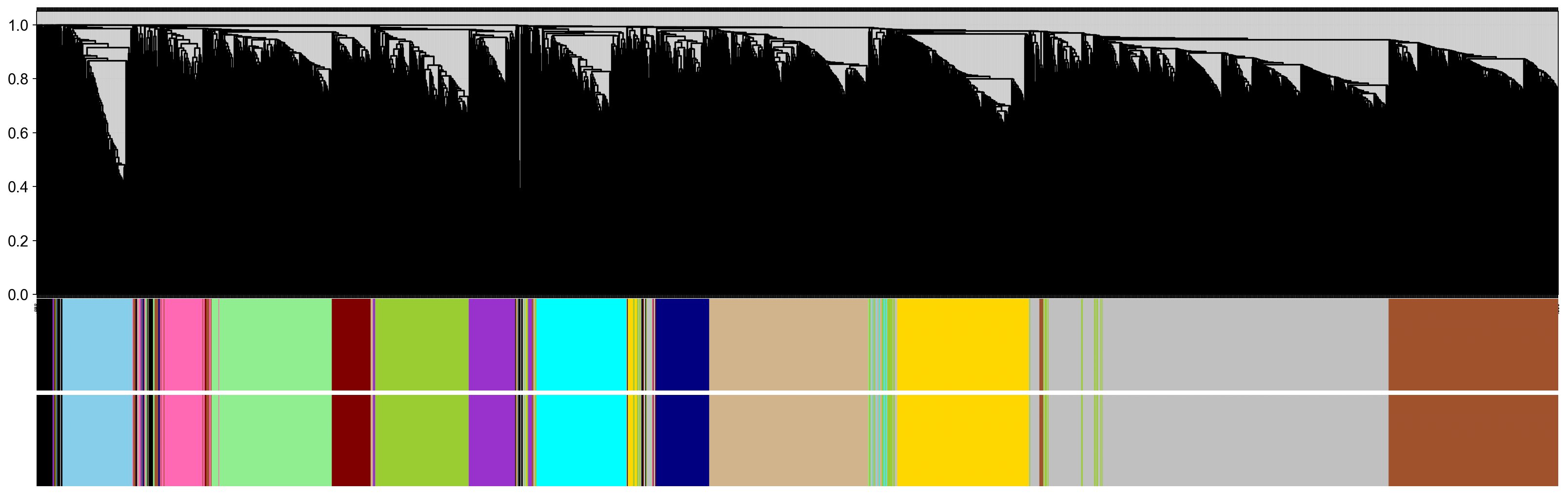

构建共表达网络

我们使用dynamicTree基于TOM矩阵构建共表达模块。

pyWGCNA_5xFAD.calculate_geneTree()
pyWGCNA_5xFAD.calculate_dynamicMods(kwargs_function={'cutreeHybrid': {'deepSplit': 2, 'pamRespectsDendro': False}})
pyWGCNA_5xFAD.calculate_gene_module(kwargs_function={'moduleEigengenes': {'softPower': 8}})

Going through the merge tree...
..cutHeight not given, setting it to 0.9970417414225616  ===>  99% of the (truncated) height range in dendro.
..done.
Calculating 13 module eigengenes in given set...
	Done..

mergeCloseModules: Merging modules whose distance is less than 0.2
fixDataStructure: data is not a Dictionary: converting it into one.
multiSetMEs: Calculating module MEs.
  Working on set 1 ...
Calculating 13 module eigengenes in given set...
	Done..

  Calculating new MEs...
multiSetMEs: Calculating module MEs.
  Working on set 1 ...
Calculating 13 module eigengenes in given set...
	Done..

Calculating 13 module eigengenes in given set...
	Done..

fixDataStructure: data is not a Dictionary: converting it into one.
orderMEs: order not given, calculating using given set 0

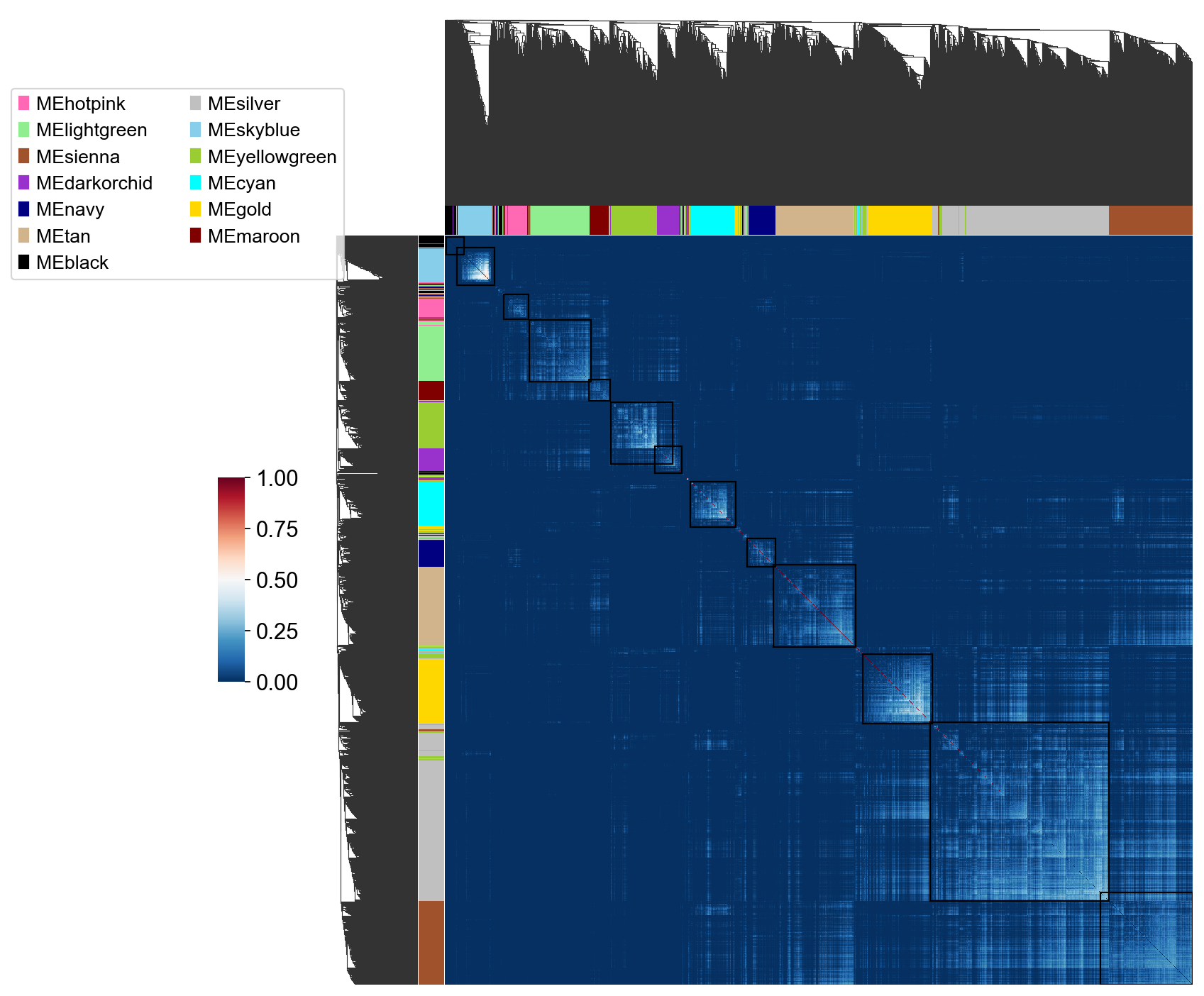

pyWGCNA_5xFAD.plot_matrix(save=False)

<seaborn.matrix.ClusterGrid at 0x7f1851de79d0>

保存和加载PyWGCNA对象

您可以分别使用saveWGCNA()或readWGCNA()函数保存或加载PyWGCNA对象。

pyWGCNA_5xFAD.saveWGCNA()

Saving WGCNA as 5xFAD_2k.p

pyWGCNA_5xFAD=ov.bulk.readWGCNA('5xFAD_2k.p')

Reading 5xFAD_2k WGCNA done!

pyWGCNA_5xFAD.mol.head()

	ivl	module	name	dynamo_color	module_color
0	682	0	ENSMUSG00000065947	black	black
1	111	0	ENSMUSG00000077990	black	black
2	1124	0	ENSMUSG00000096768	black	black
3	1663	0	ENSMUSG00000110669	black	black
4	24	0	ENSMUSG00000105145	black	black

pyWGCNA_5xFAD.datExpr.var.head()

	dynamicColors	moduleColors	moduleLabels
ENSMUSG00000099250	hotpink	hotpink	4
ENSMUSG00000099021	hotpink	hotpink	4
ENSMUSG00000064356	lightgreen	lightgreen	5
ENSMUSG00000102070	sienna	sienna	8
ENSMUSG00000064357	darkorchid	darkorchid	2

子共表达模块

有时我们对某个基因或通路的模块感兴趣，需要提取基因的子模块进行分析和映射。例如，我们选择了模块6和12作为子模块进行分析。

sub_mol=pyWGCNA_5xFAD.get_sub_module(['gold','lightgreen'],
                            mod_type='module_color')
sub_mol.head(),sub_mol.shape

(      ivl  module                name dynamo_color module_color
 24     23       4  ENSMUSG00000015090         gold         gold
 133  1694       6  ENSMUSG00000006412   lightgreen   lightgreen
 143    83       6  ENSMUSG00000060143   lightgreen   lightgreen
 144   829       6  ENSMUSG00000020857   lightgreen   lightgreen
 153   274       6  ENSMUSG00000080921   lightgreen   lightgreen,
 (351, 5))

我们共找到了’gold’和’lightgreen’模块的151个基因。接下来，我们使用之前构建的无标度网络（阈值设为0.95），为’gold’和’lightgreen’模块构建基因相关网络图。

G_sub=pyWGCNA_5xFAD.get_sub_network(mod_list=['lightgreen'],
                            mod_type='module_color',correlation_threshold=0.2)
G_sub

<networkx.classes.graph.Graph at 0x7f184da05b10>

len(G_sub.edges())

137

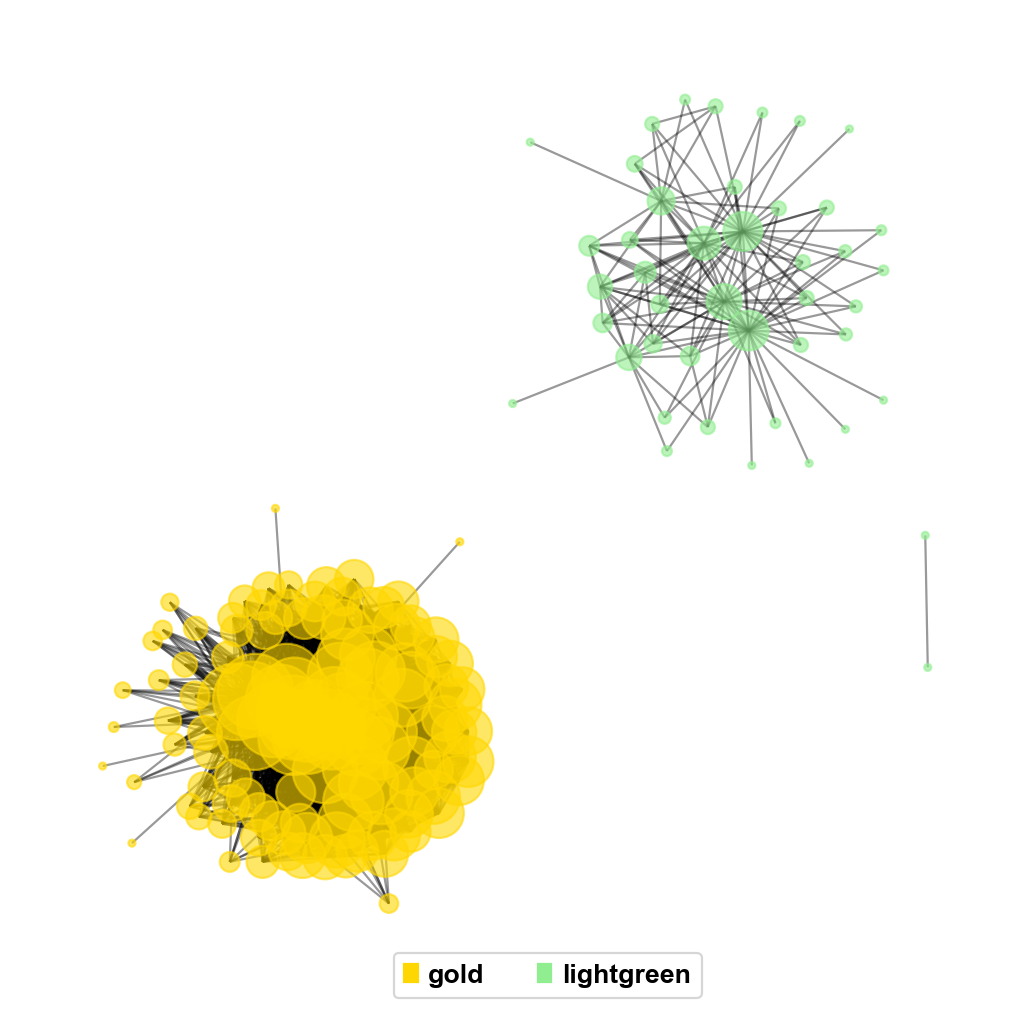

pyWGCNA提供了一个简单的可视化函数plot_sub_network，用于可视化我们感兴趣的基因网络。

pyWGCNA_5xFAD.plot_sub_network(['gold','lightgreen'],pos_type='kamada_kawai',pos_scale=10,pos_dim=2,
                         figsize=(8,8),node_size=10,label_fontsize=8,correlation_threshold=0.2,
                        label_bbox={"ec": "white", "fc": "white", "alpha": 0.6})

(<Figure size 640x640 with 1 Axes>, <AxesSubplot: >)

我们也可以通过调用runWGCNA()函数合并前面两个步骤。

更新样本信息并为下游分析分配颜色

pyWGCNA_5xFAD.updateSampleInfo(path='data/5xFAD_paper/sampleInfo.csv', sep=',')

# add color for metadata
pyWGCNA_5xFAD.setMetadataColor('Sex', {'Female': 'green',
                                       'Male': 'yellow'})
pyWGCNA_5xFAD.setMetadataColor('Genotype', {'5xFADWT': 'darkviolet',
                                            '5xFADHEMI': 'deeppink'})
pyWGCNA_5xFAD.setMetadataColor('Age', {'4mon': 'thistle',
                                       '8mon': 'plum',
                                       '12mon': 'violet',
                                       '18mon': 'purple'})
pyWGCNA_5xFAD.setMetadataColor('Tissue', {'Hippocampus': 'red',
                                          'Cortex': 'blue'})

注意：在进行下游分析时，我们保留Gray模块，它是无法分配到其他模块的基因集合。

将模块与外部信息关联并识别重要基因

PyWGCNA在analyseWGCNA()函数中识别模块后会进行一些重要分析，包括：

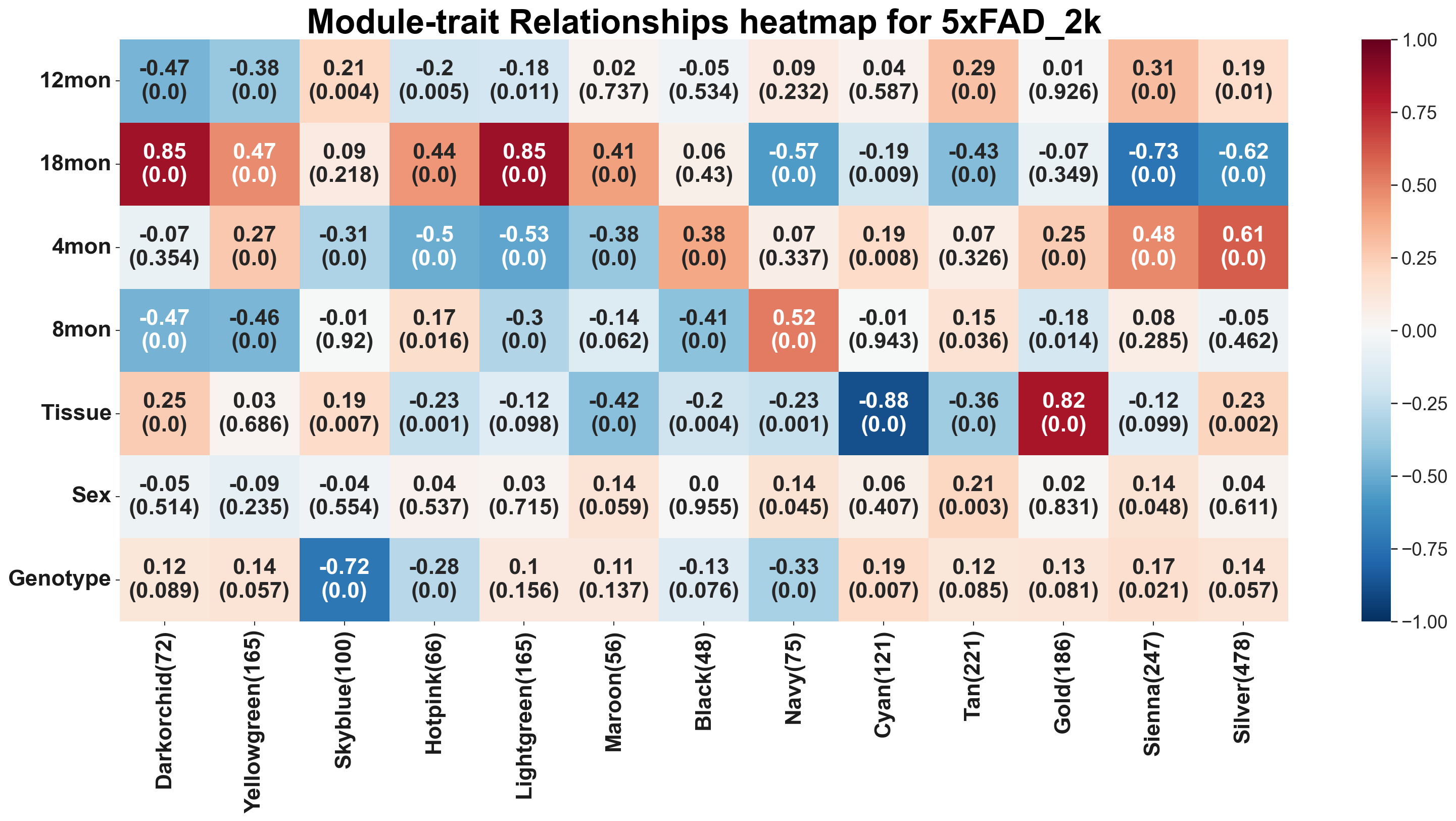

1. 量化模块-性状关系

2. 基因与性状和模块的关系

在开始分析之前，请记得添加样本或基因信息。

要显示模块关系热图，PyWGCNA需要用户使用setMetadataColor()函数从Matplotlib颜色中选择并设置元数据的颜色。

您也可以选择在模块特征基因热图中以何种顺序显示哪些数据性状。

pyWGCNA_5xFAD.analyseWGCNA()

Analysing pyWGCNA...
Calculating module trait relationship ...
	Done..

Adding (signed) eigengene-based connectivity (module membership) ...
	Done..

'Done'

metadata = pyWGCNA_5xFAD.datExpr.obs.columns.tolist()

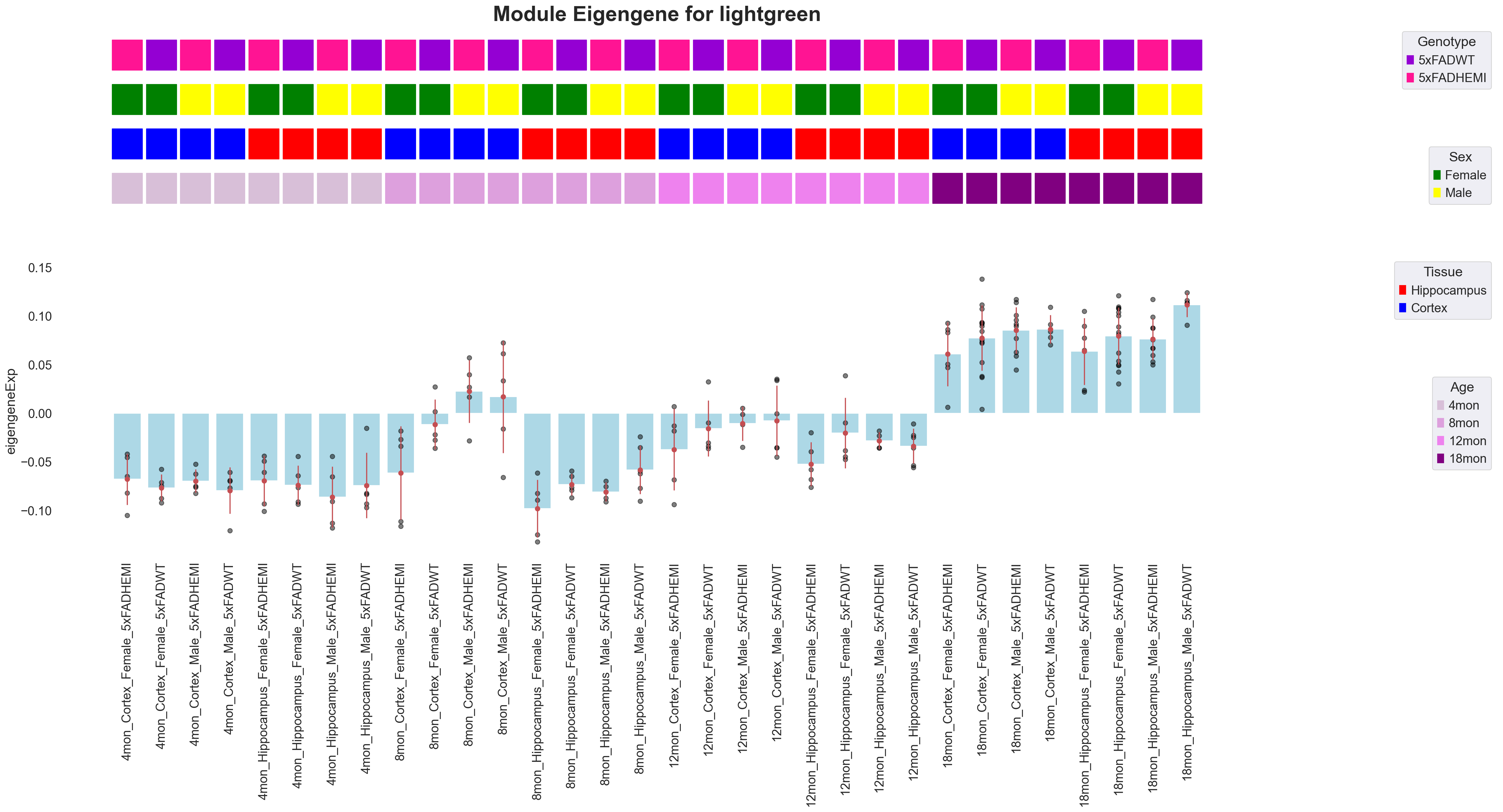

pyWGCNA_5xFAD.plotModuleEigenGene('lightgreen', metadata, show=True)

array([[<AxesSubplot: title={'center': 'Module Eigengene for lightgreen'}>,
        <AxesSubplot: >],
       [<AxesSubplot: ylabel='eigengeneExp'>, <AxesSubplot: >],
       [<AxesSubplot: xlabel='sample_id'>, <AxesSubplot: >]], dtype=object)

pyWGCNA_5xFAD.barplotModuleEigenGene('lightgreen', metadata, show=True)

寻找每个模块的枢纽基因

您也可以使用top_n_hub_genes()函数根据连接性查询每个模块中的枢纽基因。

它将给出按连接性排序的DataFrame，以及您在表达数据中拥有的额外基因信息。

pyWGCNA_5xFAD.top_n_hub_genes(moduleName="lightgreen", n=10)

calculating adjacency matrix ...
	Done..

	connectivity	dynamicColors	moduleColors	moduleLabels
ENSMUSG00000030647	21.795590	lightgreen	lightgreen	5
ENSMUSG00000014313	19.976527	lightgreen	lightgreen	5
ENSMUSG00000017778	19.927416	lightgreen	lightgreen	5
ENSMUSG00000021520	19.277455	lightgreen	lightgreen	5
ENSMUSG00000039221	18.339987	lightgreen	lightgreen	5
ENSMUSG00000078784	18.180421	lightgreen	lightgreen	5
ENSMUSG00000045996	18.124036	lightgreen	lightgreen	5
ENSMUSG00000052033	16.840824	lightgreen	lightgreen	5
ENSMUSG00000071528	16.746133	lightgreen	lightgreen	5
ENSMUSG00000026154	16.186290	lightgreen	lightgreen	5
