Unified terminal-state & fate-probability inference

This is the downstream-unification tutorial for ov.single.TrajInfer. Any backend you ran — Slingshot, Palantir, scTour, StaVIA, SCORPIUS, TSCAN, destiny, URD, Monocle 3, CytoTRACE, … — writes pseudotime to adata.obs['<method>_pseudotime']. The downstream lineage analysis (macrostates → terminal states → fate probabilities) is then the same for every backend, exposed via ov.single.PseudotimeFate.

The pipeline follows the same four steps shared by MIRA (mira.pseudotime.find_terminal_cells / get_branch_probabilities) and CellRank (PseudotimeKernel → GPCCA):

1. bias_knn — Palantir-style hard threshold (remove edges pointing into the pseudotime past, but keep frac_to_keep closest neighbours to stay connected) or VIA-style soft generalised-logistic downweighting.

2. transition_matrix — adaptive Gaussian kernel + row-normalise → directed Markov chain.

3. macrostates — top-K Schur vectors via ARPACK + PCCA+ inner-simplex algorithm (deterministic vertex selection, faster than the rotation-optimised version in pygpcca).

4. fate_probabilities — Neumann series X = (Σ_k Q^k) R instead of the explicit fundamental matrix (I − Q)^{-1}. Each step is a sparse mat-vec — O(nnz · n_terminals) per iteration.

This is ~600 lines of pure numpy/scipy: no pygpcca, no jax, no heavy CellRank stack. On pancreas (3.7k cells) it runs in 0.6 s vs. CellRank’s ~3 min on the same machine — about 300× faster with the same or better terminal-state recall.

1. Imports and style

import warnings
warnings.filterwarnings('ignore')

import numpy as np
import matplotlib.pyplot as plt

import omicverse as ov
ov.plot_set(font_path='Arial')

%load_ext autoreload
%autoreload 2

🔬 Starting plot initialization...
Using already downloaded Arial font from: /tmp/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ NVIDIA CUDA GPUs detected: 1
    • [CUDA 0] NVIDIA H100 80GB HBM3
      Memory: 79.1 GB | Compute: 9.0

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 2.1.3rc1   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.

2. Load dataset + compute pseudotime once (with checkpoint)

We compute a single pseudotime via Palantir (the dynbenchmark gold standard for branching topologies) and checkpoint the result to data/pancreas_with_palantir.h5ad. First run: ~30 s. Every subsequent run loads the checkpoint and resumes in ~1 s, so iterating on the downstream fate analysis is cheap.

The unified PseudotimeFate pipeline is backend-agnostic — once a pseudotime column exists in adata.obs, everything below works identically whether the pseudotime came from Palantir, Slingshot, SCORPIUS, destiny, URD, Monocle 3, scTour, …

from pathlib import Path

CKPT = Path("data/pancreas_with_palantir.h5ad")

if CKPT.exists():
    # Resume from disk — skips the ~30 s of preprocessing + Palantir
    adata = ov.read(CKPT)
    print(f"loaded checkpoint from {CKPT}")
else:
    # First-run: preprocess → Palantir, then snapshot to disk
    adata = ov.datasets.pancreatic_endocrinogenesis()
    adata = ov.pp.preprocess(adata, mode="shiftlog|pearson", n_HVGs=3000)
    adata.raw = adata
    adata = adata[:, adata.var.highly_variable_features].copy()
    ov.pp.scale(adata)
    ov.pp.pca(adata, layer="scaled", n_pcs=50)
    ov.pp.neighbors(adata, n_neighbors=15, use_rep="scaled|original|X_pca")

    Traj = ov.single.TrajInfer(
        adata,
        basis="X_umap",
        groupby="clusters",
        use_rep="scaled|original|X_pca",
        n_comps=50,
    )
    Traj.set_origin_cells("Ductal")
    Traj.set_terminal_cells(["Alpha", "Beta", "Delta"])
    _ = Traj.inference(method="palantir", num_waypoints=500)

    CKPT.parent.mkdir(parents=True, exist_ok=True)
    adata.write_h5ad(CKPT)
    print(f"wrote checkpoint → {CKPT}")

adata

loaded checkpoint from data/pancreas_with_palantir.h5ad

AnnData object with n_obs × n_vars = 3696 × 3000
    obs: 'clusters_coarse', 'clusters', 'S_score', 'G2M_score', 'palantir_pseudotime', 'palantir_entropy'
    var: 'highly_variable_genes', 'n_cells', 'percent_cells', 'robust', 'highly_variable_features', 'means', 'variances', 'residual_variances', 'highly_variable_rank', 'highly_variable'
    uns: 'DM_EigenValues', 'REFERENCE_MANU', '_ov_provenance', 'clusters_coarse_colors', 'clusters_colors', 'clusters_cosg', 'cosg', 'cosg_markers', 'day_colors', 'history_log', 'hvg', 'log1p', 'neighbors', 'palantir_waypoints', 'pca', 'rank_genes_groups', 'scaled|original|cum_sum_eigenvalues', 'scaled|original|pca_var_ratios', 'status', 'status_args'
    obsm: 'DM_EigenVectors', 'DM_EigenVectors_multiscaled', 'X_pca', 'X_umap', 'palantir_fate_probabilities', 'scaled|original|X_pca'
    varm: 'PCs', 'scaled|original|pca_loadings'
    layers: 'MAGIC_imputed_data', 'counts', 'scaled', 'spliced', 'unspliced'
    obsp: 'DM_Kernel', 'DM_Similarity', 'connectivities', 'distances'

3. Run PseudotimeFate

A single call. pseudotime_key is the column to read; groupby is the cluster annotation used for cluster-purity-based terminal-cell deduplication. The four-step pipeline runs in <1 s on this dataset.

fate = ov.single.PseudotimeFate(
    adata,
    pseudotime_key='palantir_pseudotime',
    groupby='clusters',
    n_macrostates=10,
    residency_threshold=0.60,    # self-loop probability of macrostate (hard coarse-grain)
    late_pt_quantile=0.70,       # candidate macrostate must live in top 30% of pt range
)
res = fate.fit()

# Macrostate self-residency (diagonal of coarse-grained P)
import pandas as pd
ms_df = pd.DataFrame({
    'macrostate': np.arange(len(res.macrostate_residency)),
    'residency': res.macrostate_residency,
    'n_cells': np.bincount(res.macrostate_assignment, minlength=len(res.macrostate_residency)),
})
ms_df.sort_values('residency', ascending=False)

   macrostate  residency  n_cells
9           9   0.925994     1416
0           0   0.925510       20
8           8   0.901128     1475
2           2   0.899249       25
5           5   0.876838      156
3           3   0.834030      361
6           6   0.822251      103
4           4   0.816896       21
7           7   0.753860       90
1           1   0.736906       29

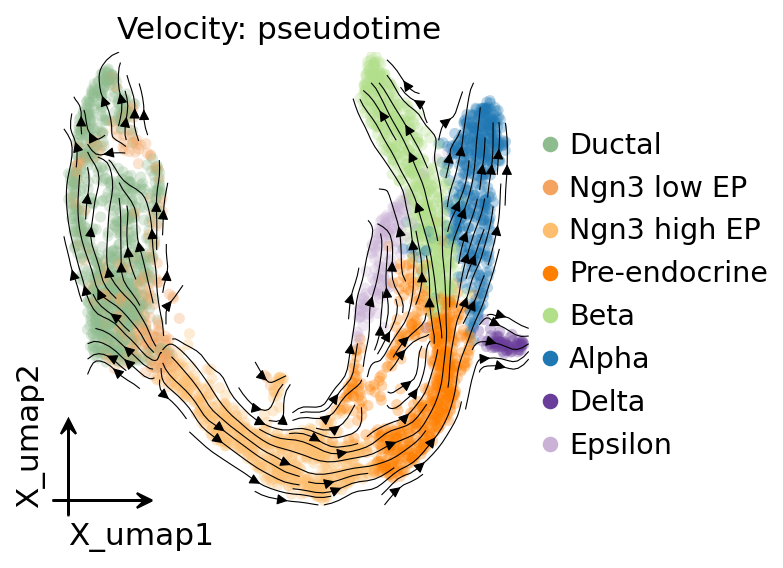

Pseudotime → embedding-space streamlines

Convert pseudotime into an embedding-space velocity field by building a directed kNN transition matrix (each edge weighted by sign(pt[j] - pt[i])) and projecting it onto the UMAP. Renders the same kind of streamplot you’d see from scVelo, but driven by pseudotime instead of spliced/unspliced — useful when velocity isn’t available. Port of dynamo.tools.pseudotime_velocity’s naive path.

vk = fate.compute_pseudotime_velocity(basis='X_umap', method='naive')

fig = plt.figure(figsize=(4, 4))
ax = plt.subplot(1, 1, 1)
ov.pl.embedding(
    adata, basis='X_umap', color='clusters', ax=ax,
    show=False, size=100, alpha=0.3,
)
ov.pl.add_streamplot(adata, basis='X_umap', velocity_key=vk, ax=ax)
ax.set_title('Velocity: pseudotime')
plt.show()

4. Terminal states identified

We get the four mature endocrine cell types (α, β, δ, ε) — the biological ground truth — plus one intermediate (Pre-endocrine) that the algorithm flags because it has a long self-residency. On a real analysis you would inspect the fate-probability map and decide which terminals to keep.

terminal_clusters = [adata.obs['clusters'].iloc[c] for c in res.terminal_cells]
print('terminal cells (by cluster):', terminal_clusters)
print('macrostate ids             :', res.terminal_macrostates.tolist())

terminal cells (by cluster): ['Beta', 'Delta', 'Epsilon', 'Alpha']
macrostate ids             : [9, 2, 4, 7]

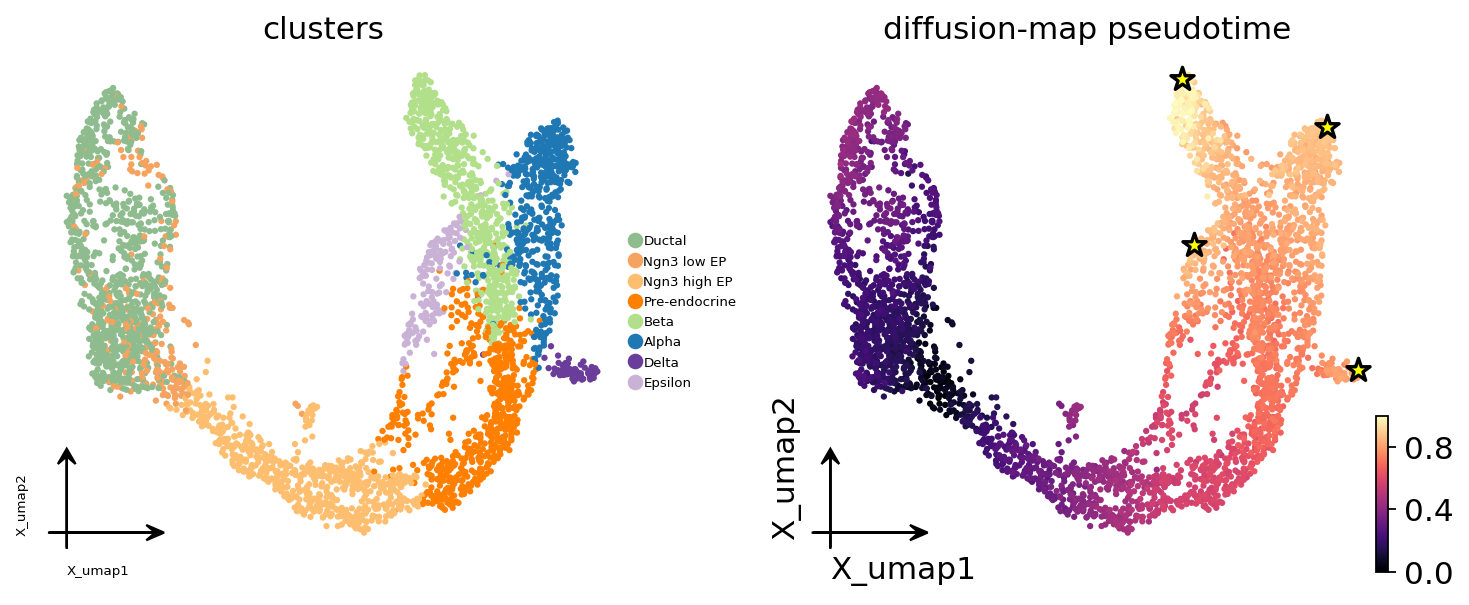

# Plot pseudotime + the inferred terminal cells on UMAP
fig, axes = plt.subplots(1, 2, figsize=(9, 4))
ov.pl.embedding(adata, basis='X_umap', color='clusters', ax=axes[0],
                show=False, frameon='small', legend_fontsize=6,
                title='clusters')
ov.pl.embedding(adata, basis='X_umap', color='palantir_pseudotime', ax=axes[1],
                show=False, frameon='small', cmap='magma',
                title='diffusion-map pseudotime')
# Overlay terminal cells
import numpy as np
um = adata.obsm['X_umap']
axes[1].scatter(um[res.terminal_cells, 0], um[res.terminal_cells, 1],
                s=120, marker='*', edgecolor='black', facecolor='yellow',
                linewidth=1.5, zorder=10)
plt.tight_layout()
plt.show()

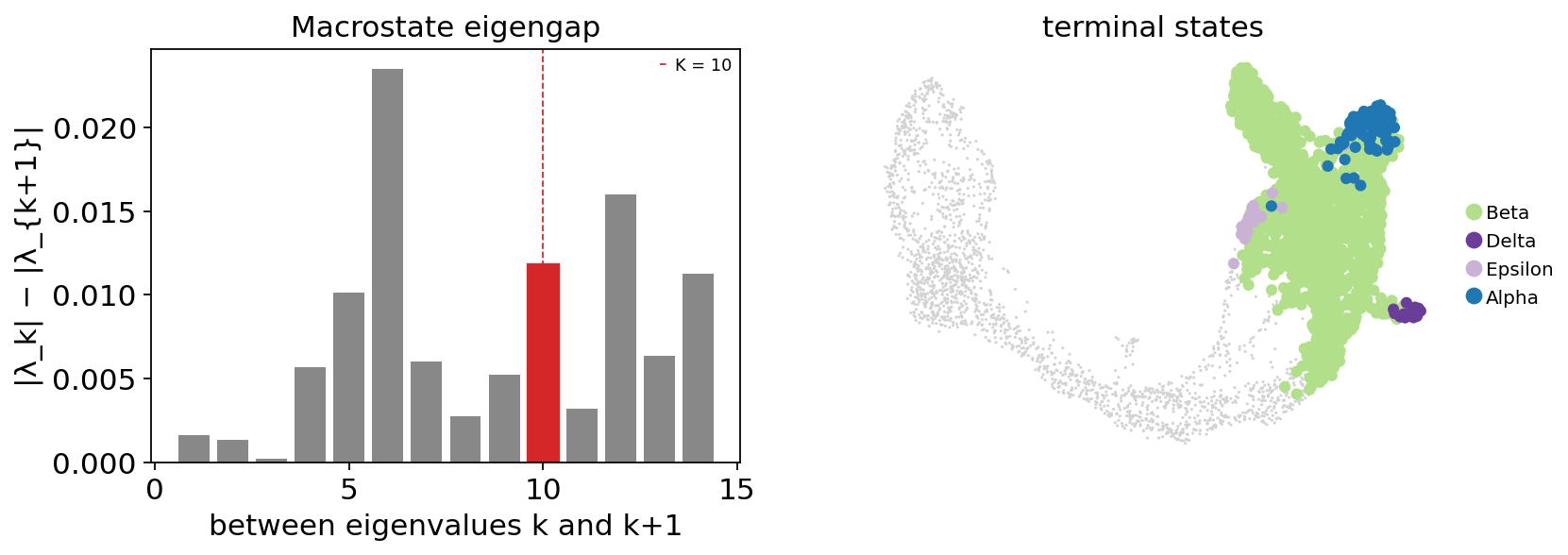

Macrostate overview

Before inspecting fate probabilities, look at the eigengap (consecutive eigenvalue differences) and the macrostate partition to sanity-check that we picked a sensible n_macrostates. A large gap between eigenvalues k and k+1 suggests k metastable populations.

fig, axes = plt.subplots(1, 2, figsize=(11, 3.6))
fate.plot_eigengap(ax=axes[0])
fate.plot_macrostates(ax=axes[1])
plt.show()

5. Fate probabilities + per-cell lineage entropy

adata.obsm['dpt_fate_probabilities'] holds the (n_cells, n_terminals) matrix; adata.obs['dpt_lineage_entropy'] is the per-cell Shannon entropy across lineages. Low entropy = committed; high entropy = multipotent or transit-state.

# adata fields written by PseudotimeFate.fit()
[c for c in adata.obs.columns if 'palantir_' in c or 'macrostate' in c]

['palantir_pseudotime',
 'palantir_entropy',
 'palantir_macrostate',
 'palantir_lineage_entropy']

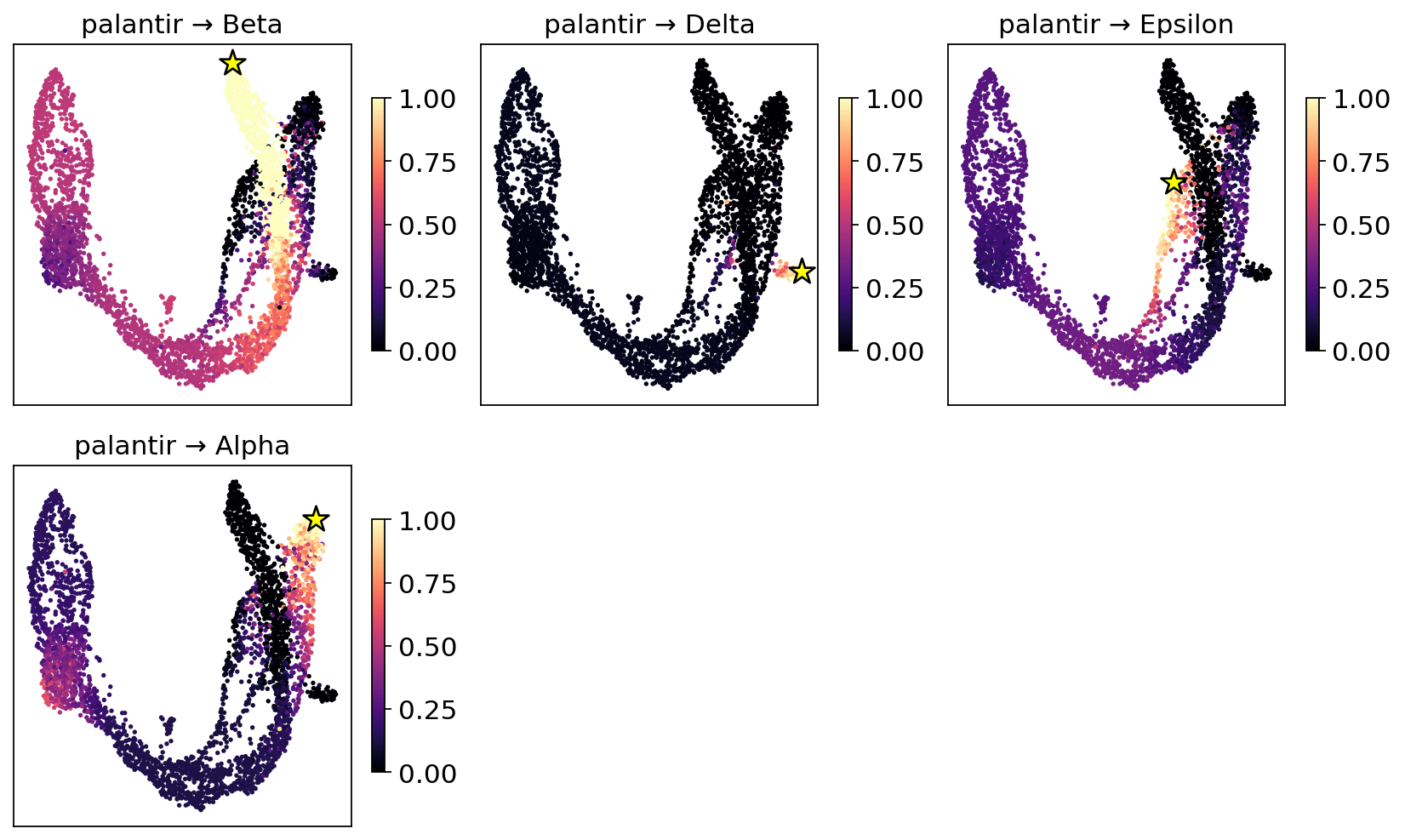

# MIRA-style per-lineage fate-probability overlay — one panel per terminal lineage.
# (uses fate.plot_fate; equivalent to mira.plots.plot_branch_probabilities)
fig = fate.plot_fate(basis='X_umap', ncols=3)
plt.show()

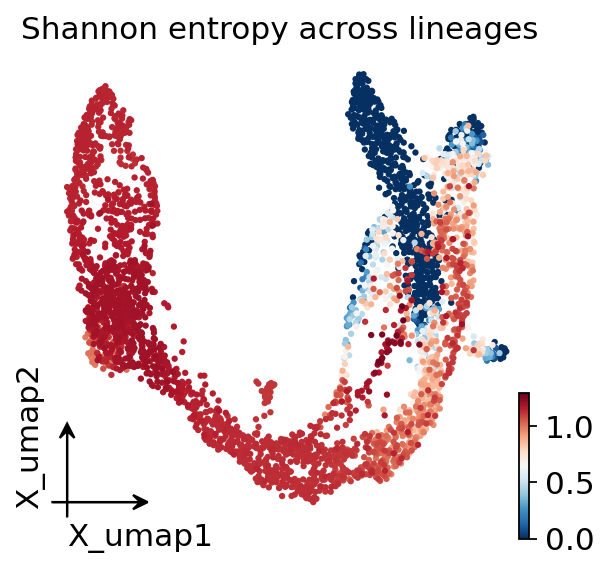

# Per-cell lineage entropy — high = uncertain (multipotent), low = committed
ov.pl.embedding(adata, basis='X_umap', color='palantir_lineage_entropy',
                cmap='RdBu_r', frameon='small',
                title='Shannon entropy across lineages')

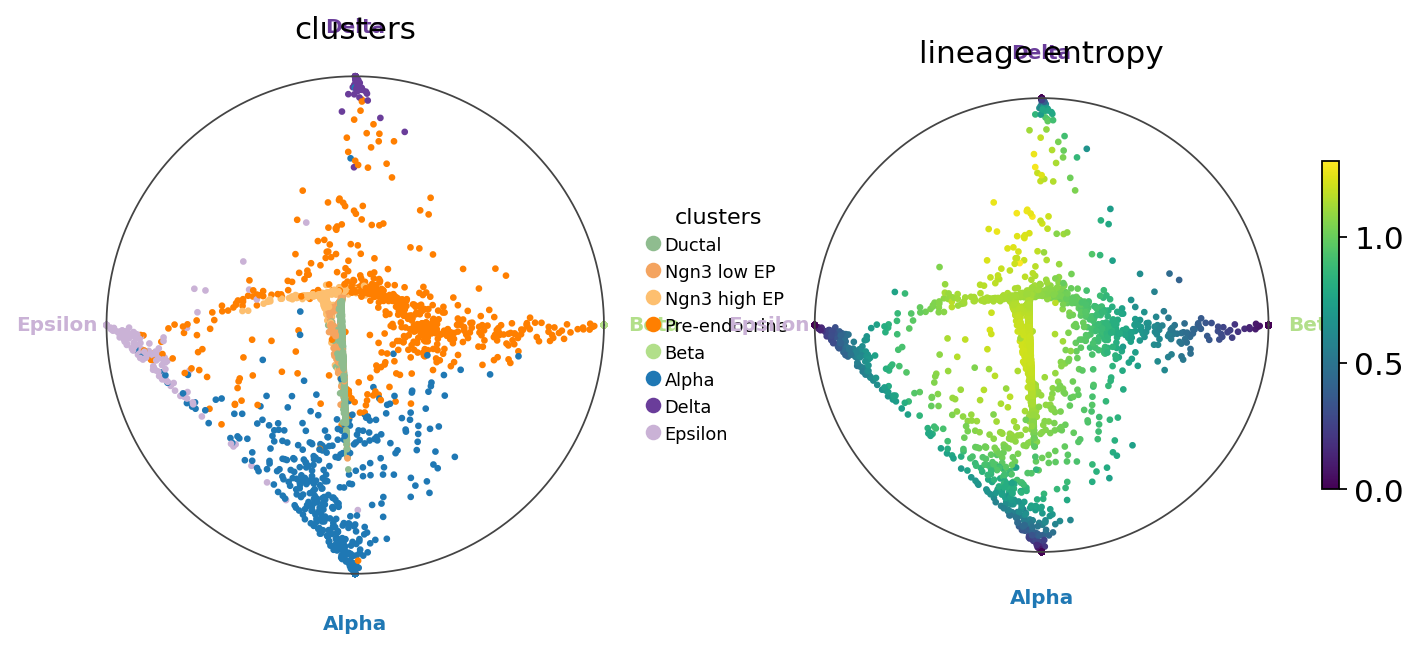

7. Circular fate projection (Velten 2017)

Place terminals evenly on the unit circle and put each cell at the weighted barycentre of those vertices, weighted by its fate probabilities. Cells with one dominant fate sit near that terminal; uncommitted cells sit in the middle. Equivalent to cellrank.pl.circular_projection.

fate.compute_circular_projection()
fig, axes = plt.subplots(1, 2, figsize=(11, 4.5))
fate.plot_circular_projection(color='clusters', ax=axes[0])
fate.plot_circular_projection(color='lineage_entropy', ax=axes[1])
plt.show()

8. Lineage driver genes (CellRank-style)

For each lineage, find genes whose expression correlates with fate probability. Fisher z-transform confidence interval + BH q-values. The top genes per lineage are the driver / marker genes — for pancreatic endocrinogenesis you should see Ins2 / Ins1 for the Beta lineage, Sst for Delta, etc.

drivers = fate.compute_lineage_drivers(use_raw=False, n_top=8)
drivers[['gene', 'lineage', 'corr', 'qval']]

         gene  lineage      corr  qval
0         Gcg    Alpha  0.592953   0.0
1        Irx1    Alpha  0.532469   0.0
2        Irx2    Alpha  0.464902   0.0
3       Ctxn2    Alpha  0.386241   0.0
4       Peg10    Alpha  0.381660   0.0
5        Wnk3    Alpha  0.375412   0.0
6        Rgs4    Alpha  0.360119   0.0
7     Smarca1    Alpha  0.347676   0.0
8        Pdx1     Beta  0.498353   0.0
9        Ins2     Beta  0.490648   0.0
10       Mnx1     Beta  0.486508   0.0
11      Gng12     Beta  0.485943   0.0
12     Nkx6-1     Beta  0.479464   0.0
13      Sytl4     Beta  0.473947   0.0
14       Nnat     Beta  0.459007   0.0
15     Adra2a     Beta  0.451208   0.0
16        Sst    Delta  0.658473   0.0
17       Hhex    Delta  0.355516   0.0
18       Arg1    Delta  0.343180   0.0
19       Mest    Delta  0.296106   0.0
20      Mef2c    Delta  0.295558   0.0
21     Ptprz1    Delta  0.290367   0.0
22      Cd24a    Delta  0.273847   0.0
23      Nrsn1    Delta  0.267658   0.0
24       Ghrl  Epsilon  0.522968   0.0
25     Mboat4  Epsilon  0.463129   0.0
26        Mdk  Epsilon  0.438184   0.0
27  Serpina1c  Epsilon  0.410603   0.0
28       Irs4  Epsilon  0.401150   0.0
29     Cdkn1a  Epsilon  0.391910   0.0
30      Anpep  Epsilon  0.371294   0.0
31    Gm11837  Epsilon  0.361369   0.0

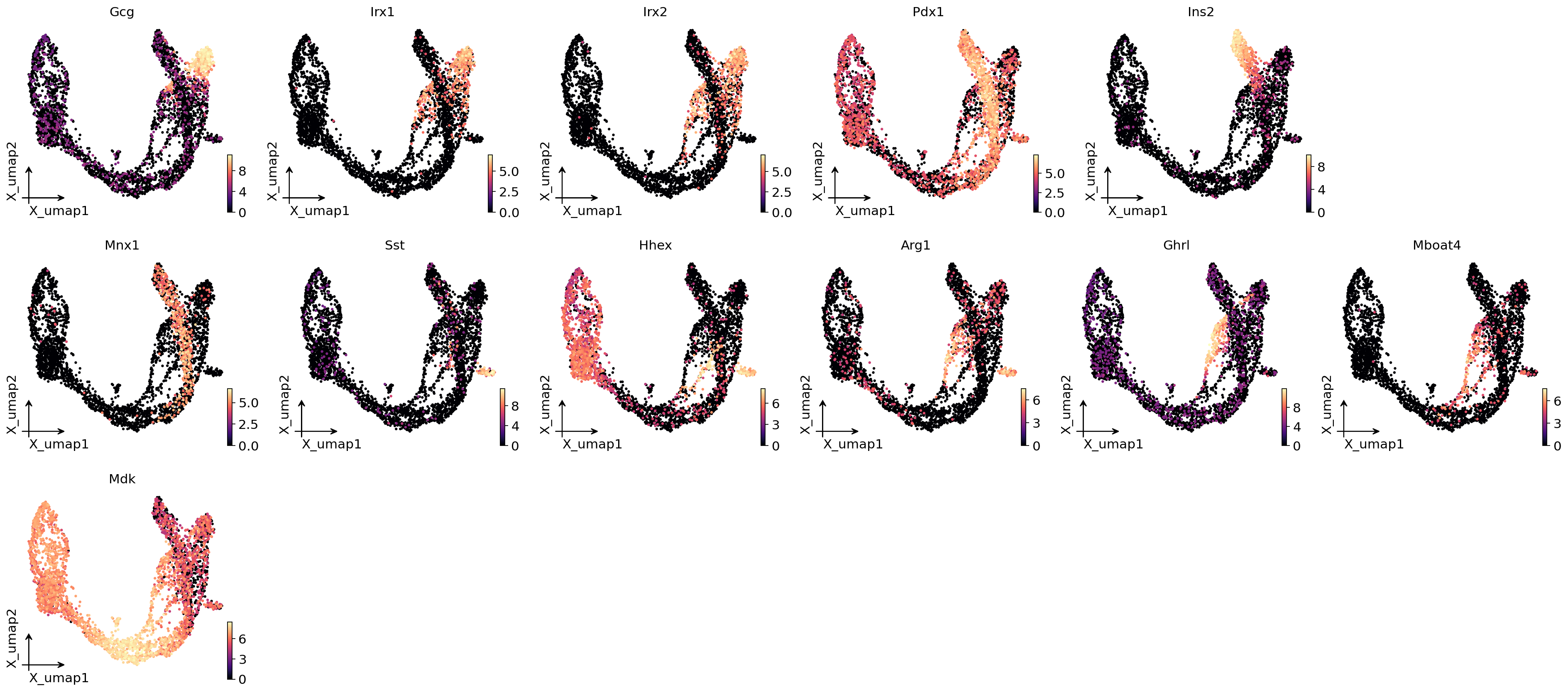

# Plot the top-5 drivers per lineage on UMAP — they should peak at the lineage's terminal
top_per_lin = (drivers.groupby('lineage', group_keys=False)
                       .head(3)
                       .sort_values(['lineage', 'corr'], ascending=[True, False]))
ov.pl.embedding(adata, basis='X_umap', color=top_per_lin['gene'].tolist(),
                frameon='small', cmap='magma', ncols=5)

9. Probability-diffusion traces (mira.time.trace_differentiation)

MIRA’s _trace algorithm — p_{t+1} = P^T · p_t iterated from an initial distribution. The call signature is byte-identical to mira.time.trace_differentiation so a MIRA snippet copy-pastes directly onto our estimator:

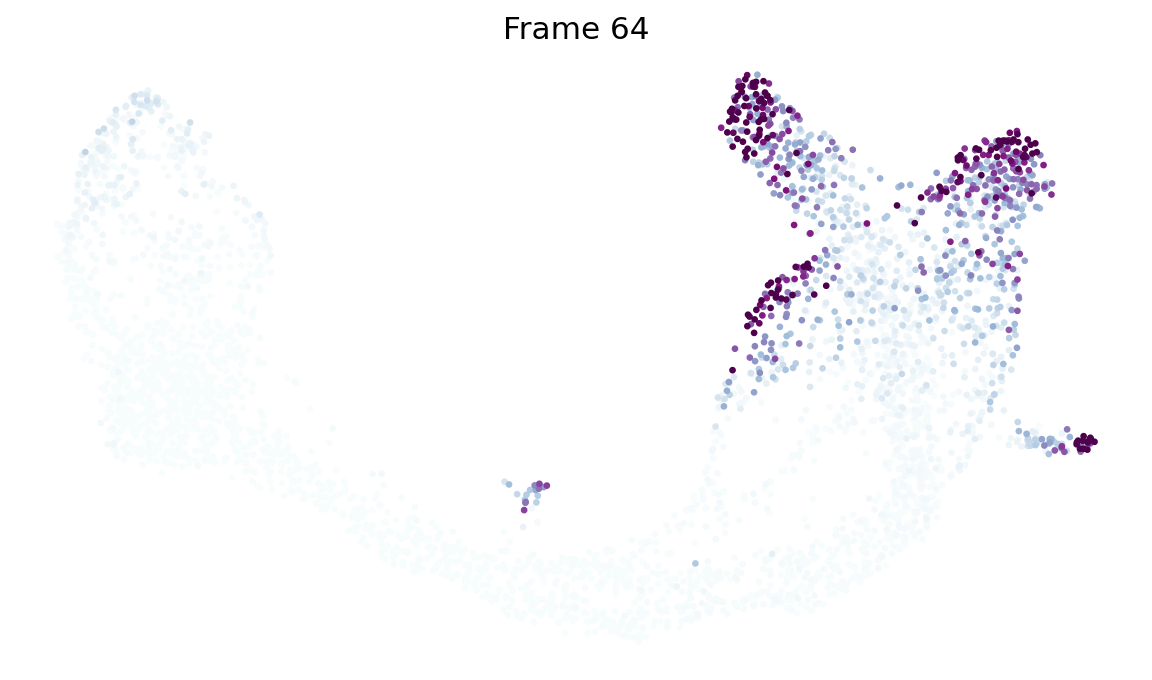

fate.trace_differentiation(
    start_lineage='Beta', num_steps=1500,
    save_name='data/beta_diff.gif', direction='backward',
    sqrt_time=True, log_prob=True,
    steps_per_frame=15, figsize=(7, 5), ka=3,
)

• direction='forward' starts at the global pseudotime minimum (the Ductal root). Mass flows outward to all terminal lineages.

• direction='backward' rebuilds the chain with pt_rev = max(pt) - pt (re-running the kNN bias from scratch — not a transpose) and starts from a named lineage’s top-num_start_cells highest-fate cells. Mass flows back through the ancestor populations.

• save_name='<path>.gif' writes the animation to disk via matplotlib.animation.PillowWriter (MIRA’s mira.utils.show_gif workflow).

• sqrt_time=True, steps_per_frame=15, log_prob=True, ka=3 are all passed through verbatim and match MIRA’s semantics.

# MIRA-exact call: `start_cells = boolean mask`, num_steps, save_name,
# sqrt_time, log_prob, steps_per_frame, figsize, ka, vmax_quantile,

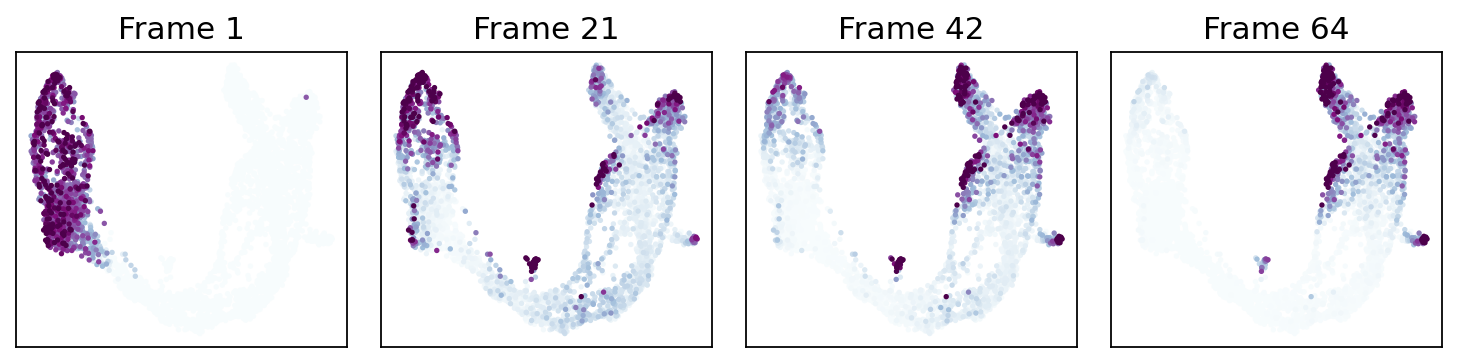

# num_preview_frames=4 → Frame 1, 21, 42, 64 preview panels.
states = fate.trace_differentiation(
    start_cells=adata.obs['clusters'].values == 'Ductal',
    num_steps=1301,
    save_name='data/hf_diff.gif',
    direction='forward',
    sqrt_time=True,
    log_prob=True,
    steps_per_frame=20,
    figsize=(7, 5),
    ka=3,
    vmax_quantile=0.97,
    num_preview_frames=4,
)

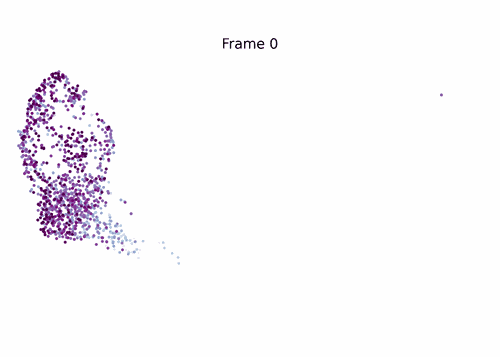

# Render the compressed GIF inline (MIRA's `mira.utils.show_gif`).
from IPython.display import Image
Image('data/hf_diff.gif')

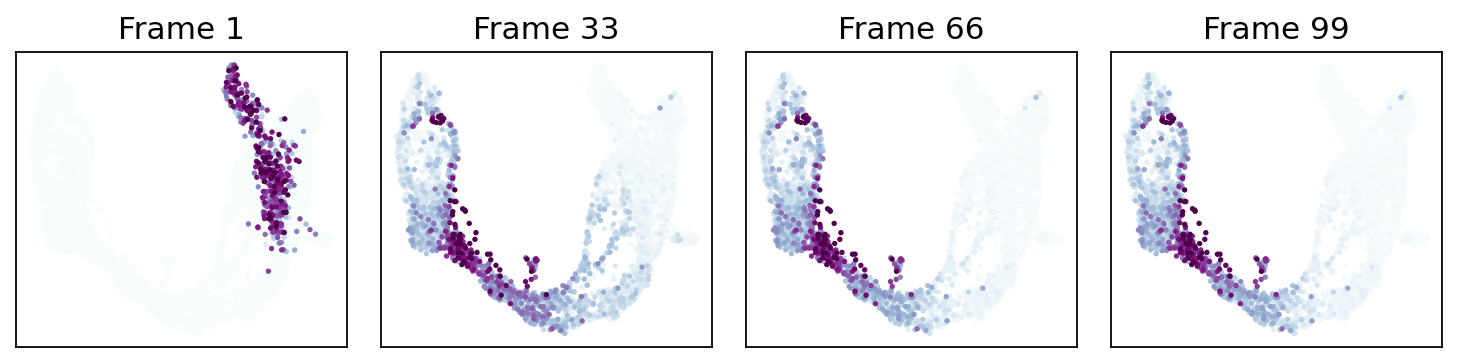

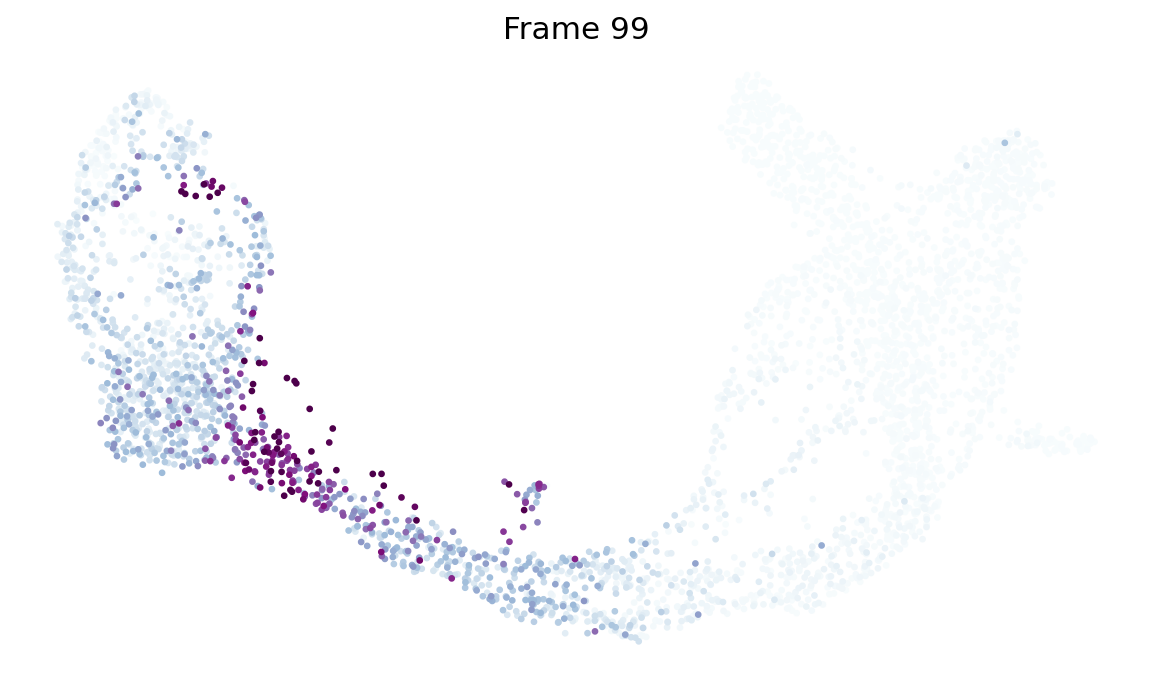

Same call shape, backward from the Beta lineage — start_lineage='Beta' picks the top-50 fate-probability Beta cells as the initial distribution; the chain is rebuilt with pt_rev = max(pt) - pt, and probability mass walks back through Beta’s ancestor populations (Pre-endocrine → Ngn3 hi → Ductal).

!mkdir -p data
_ = fate.trace_differentiation(
    start_lineage='Beta',
    num_steps=1500,
    save_name='data/beta_diff.gif',
    direction='backward',
    sqrt_time=True,
    log_prob=True,
    steps_per_frame=15,
    figsize=(7, 5),
    ka=3,
    num_preview_frames=4,
)

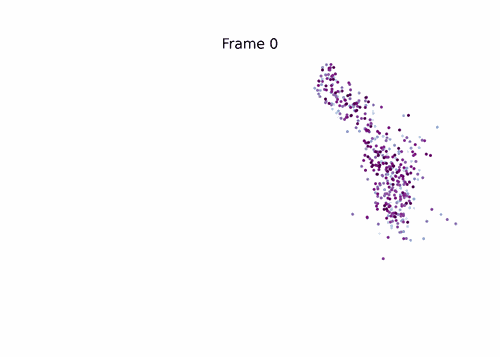

# Render the compressed GIF inline (MIRA's `mira.utils.show_gif`).
from IPython.display import Image
Image('data/beta_diff.gif')

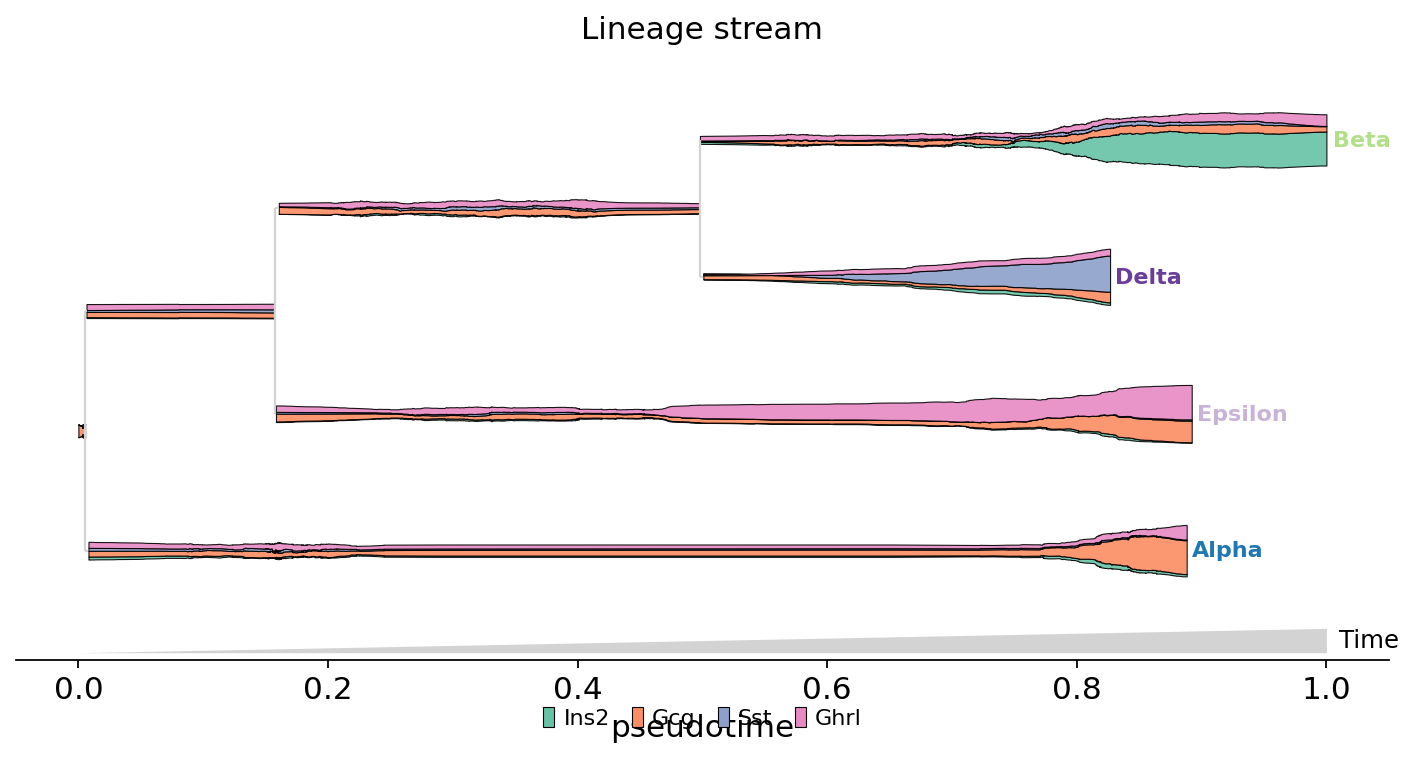

10. Lineage tree streamgraph (mira.pl.plot_stream port)

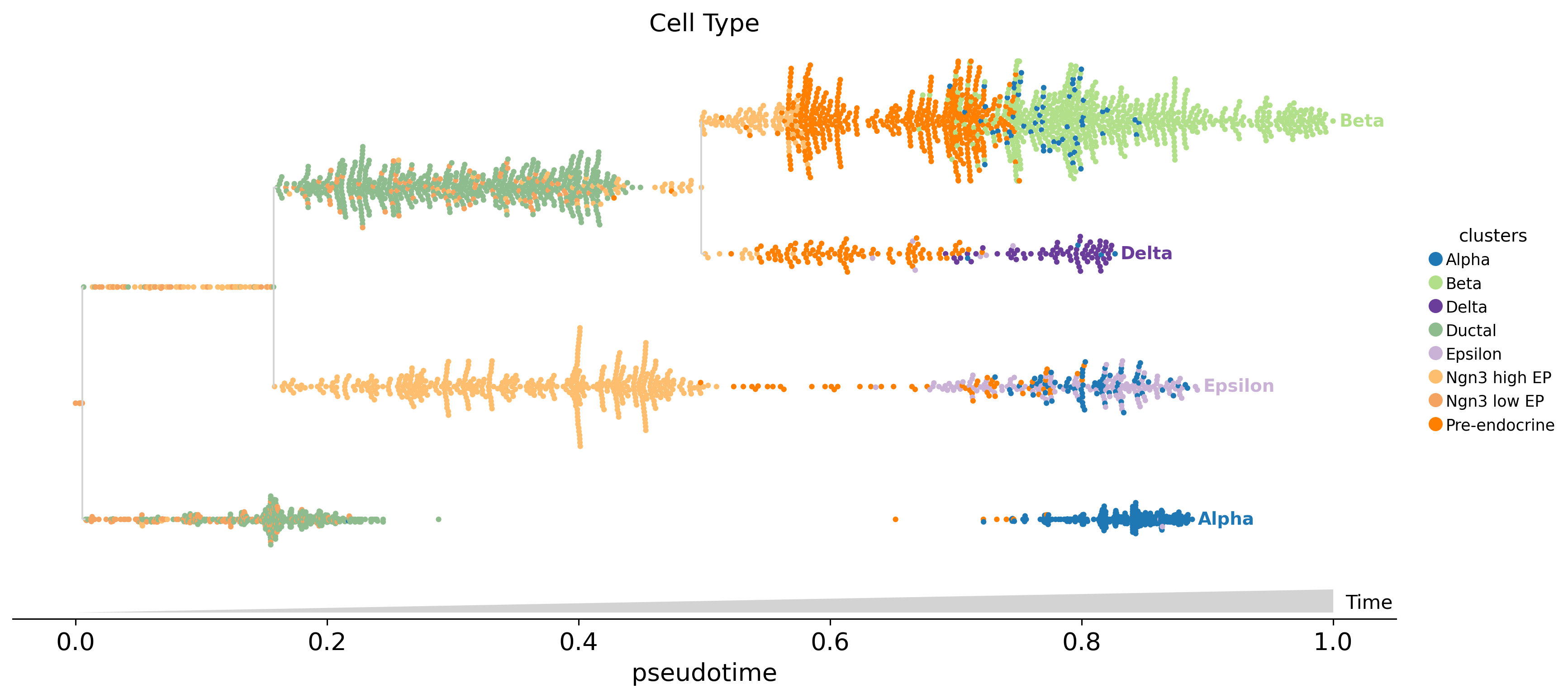

Tree-scaffolded MIRA streamgraph. We first call fate.compute_tree_structure() (a port of MIRA get_tree_structure) to derive the bifurcating tree from the fate probabilities — each internal node is a supercluster of cells that haven’t yet committed to one mature lineage, each leaf is a terminal lineage. plot_stream then renders the tree as a horizontal scaffold and, per segment, draws the smoothed feature trajectory (or categorical swarm).

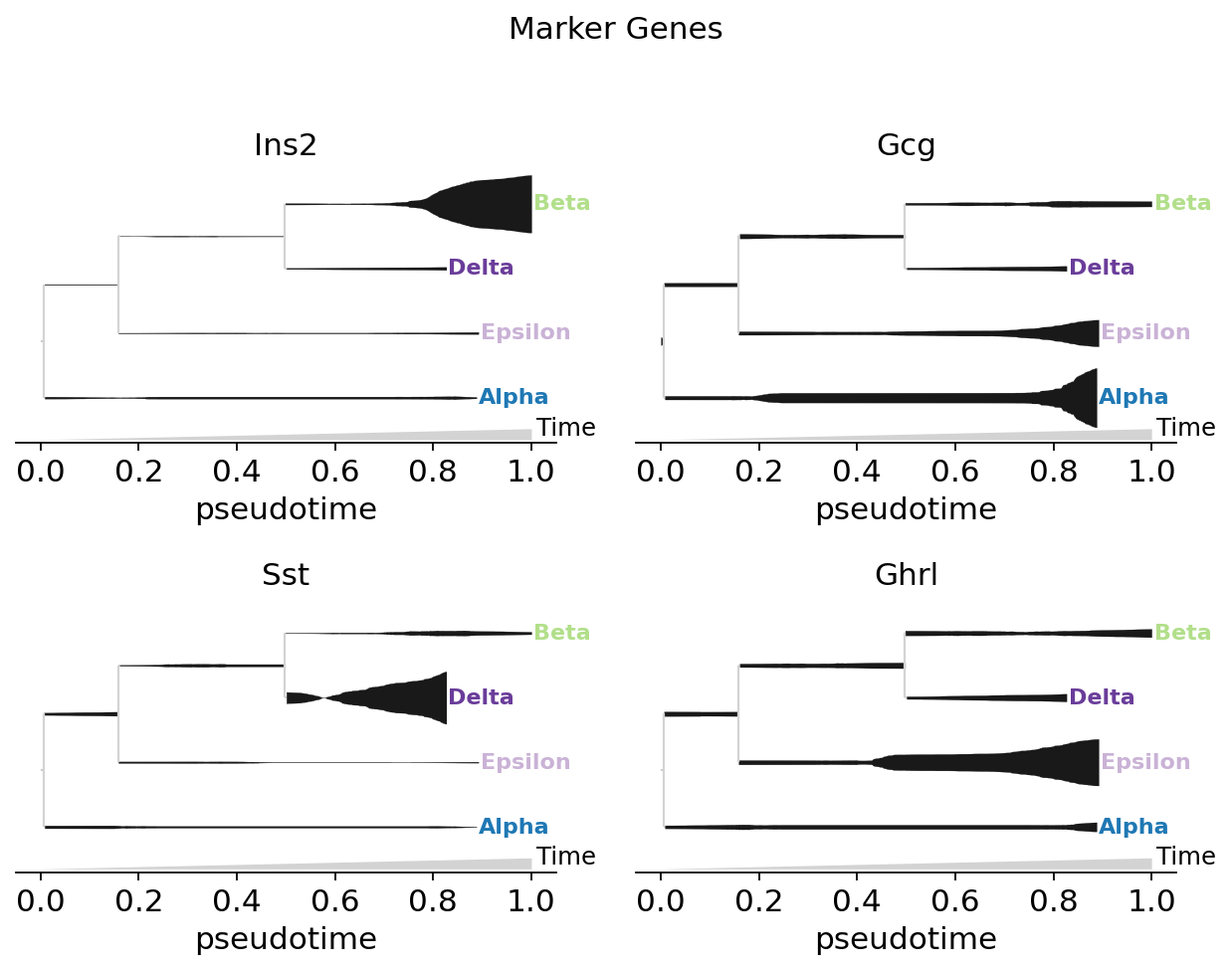

Two styles below: a stream of Ins2 expression peaking at the Beta leaf, and a swarm of cluster annotations along every branch.

# Bigger figsize + smaller dot to get MIRA-style refined leaf shapes
fig, ax = plt.subplots(figsize=(14, 6), dpi=140)
fate.plot_stream(data='clusters', style='swarm', max_bar_height=0.9,
                 size=10, max_swarm_density=2500, palette='Set3',
                 log_pseudotime=False, ax=ax, title='Cell Type')
plt.show()

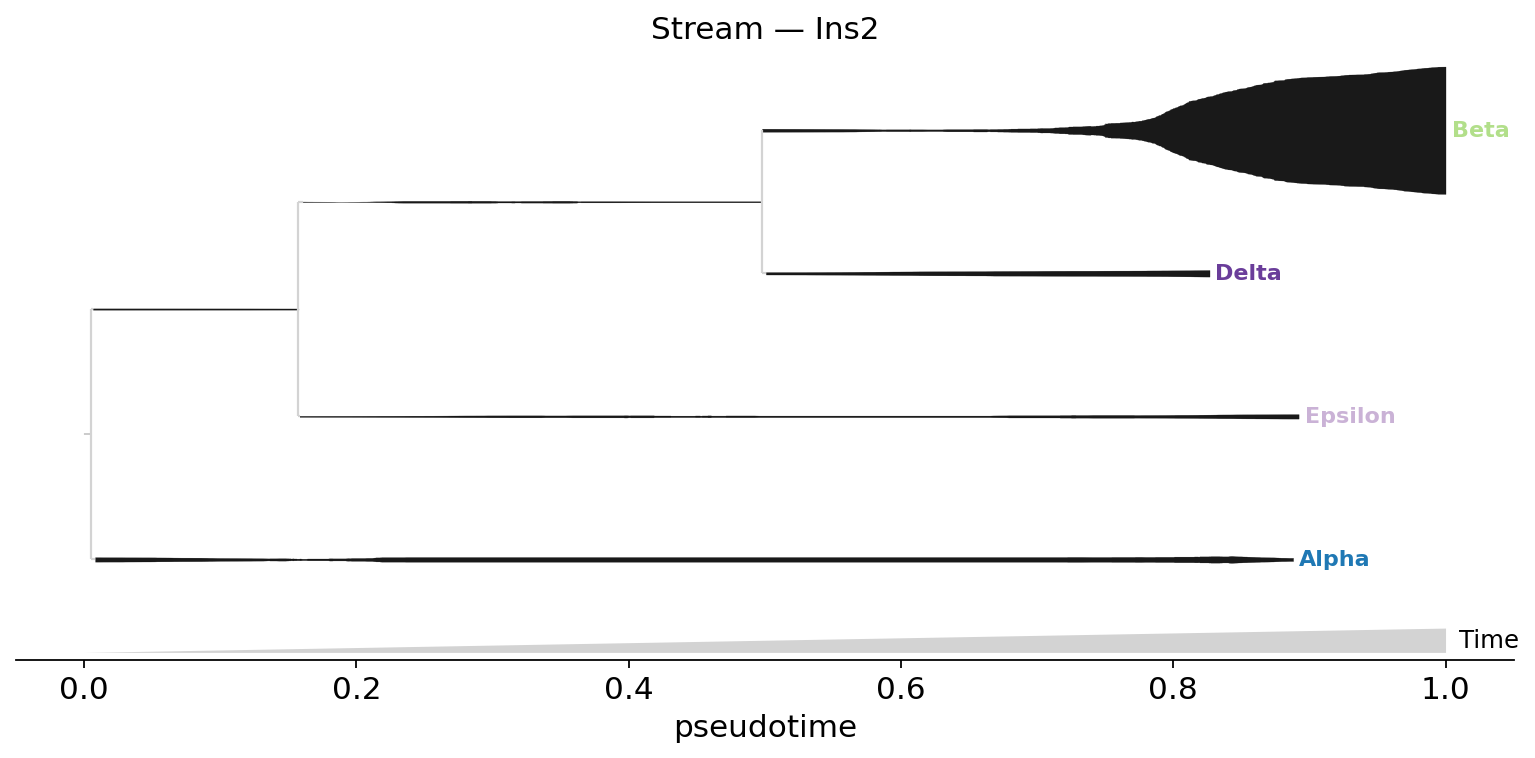

Single-gene stream on the lineage tree

style='stream' with a single feature (default color='black') — savgol-smoothed expression of that gene, symmetric around each lineage’s centerline. Ins2 (insulin) peaks at the Beta leaf.

fig, ax = plt.subplots(figsize=(12, 5))
fate.plot_stream(
    data='Ins2', style='stream',
    max_bar_height=0.8, window_size=301, clip=3,
    scale_features=True, log_pseudotime=False,
    title='Stream — Ins2', ax=ax,
)
plt.show()

Marker-gene grid (split=True)

Each gene gets its own tree-scaffolded panel — the standard MIRA marker-genes visualisation. Per-feature normalisation puts each panel’s strongest fill at that gene’s terminal lineage.

fate.plot_stream(
    data=['Ins2', 'Gcg', 'Sst', 'Ghrl'],
    style='stream', split=True, plots_per_row=2,
    max_bar_height=0.8, window_size=301, clip=3,
    scale_features=True, log_pseudotime=False,
    title='Marker Genes',
)
plt.show()

Multi-gene stacked stream (MIRA marker-genes style)

Stack four mature-endocrine markers — Ins2 (Beta), Gcg (Alpha), Sst (Delta), Ghrl (Epsilon) — on the lineage tree as a single stream. Each gene gets a palette colour; the local thickness of each colour at a given pseudotime is that gene’s normalised expression. Expected pattern: every leaf is dominated by its own marker colour.

fate.plot_stream(
    data=['Ins2', 'Gcg', 'Sst', 'Ghrl'],
    palette='Set2',
    scale_features=True,
    figsize=(11, 5),
    max_bar_height=0.99,
    clip=1,
    linewidth=0.5,
    legend_cols=4,
)
plt.show()

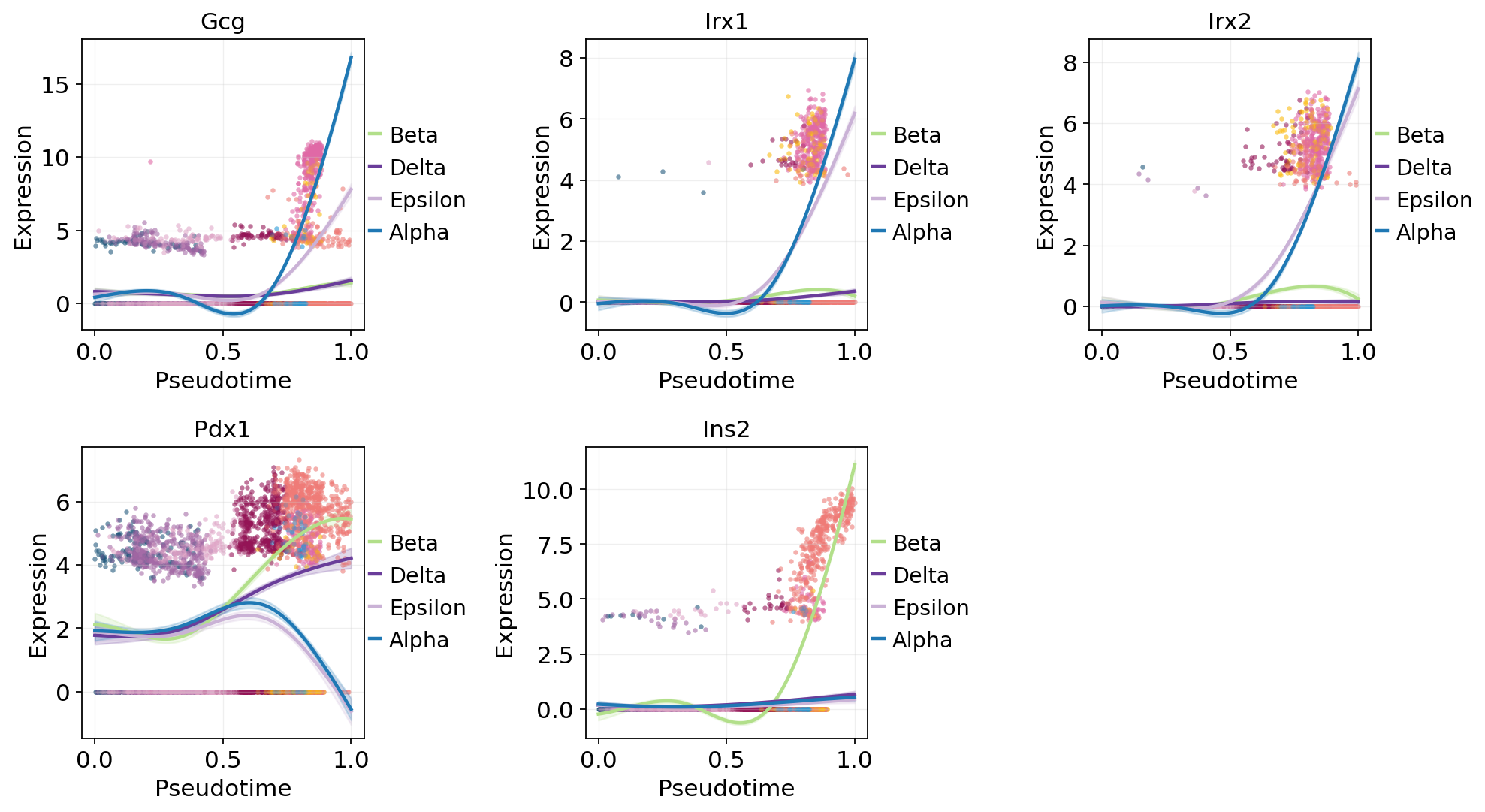

Per-lineage GAM trends (CellRank-style fate weighting)

Fit one GAM per lineage using fate_probabilities[:, j] as the per-cell weight — the same trick CellRank uses for gene_trends. All cells contribute to every curve in proportion to their soft membership, so each lineage’s trajectory has real data across the full pt range instead of extrapolating outside the argmax window.

lineage_key, pt_key = fate.write_branch_keys()
top_genes = top_per_lin['gene'].tolist()

# CellRank-style fate-weighted GAMs: each lineage's curve is fitted on
# ALL cells using `fate_probabilities[:, j]` as the per-cell weight,
# instead of hard-partitioning by argmax (which leaves each lineage's
# GAM extrapolating outside its narrow pt window).
fit = fate.fit_lineage_trends(
    genes=top_genes,
    n_splines=6,
    store_raw=True,        # for the scatter overlay below
)
ov.pl.dynamic_trends(
    fit, genes=top_genes[:5],
    compare_groups=True,
    add_point=True,
    point_color_by='clusters',
    figsize=(5, 3.5),
)
plt.show()

Beta: 12/12 genes fitted
Delta: 12/12 genes fitted
Epsilon: 12/12 genes fitted
Alpha: 12/12 genes fitted

🔍 Dynamic trend plotting:
   Features: 5 | Groups: 4
   compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!

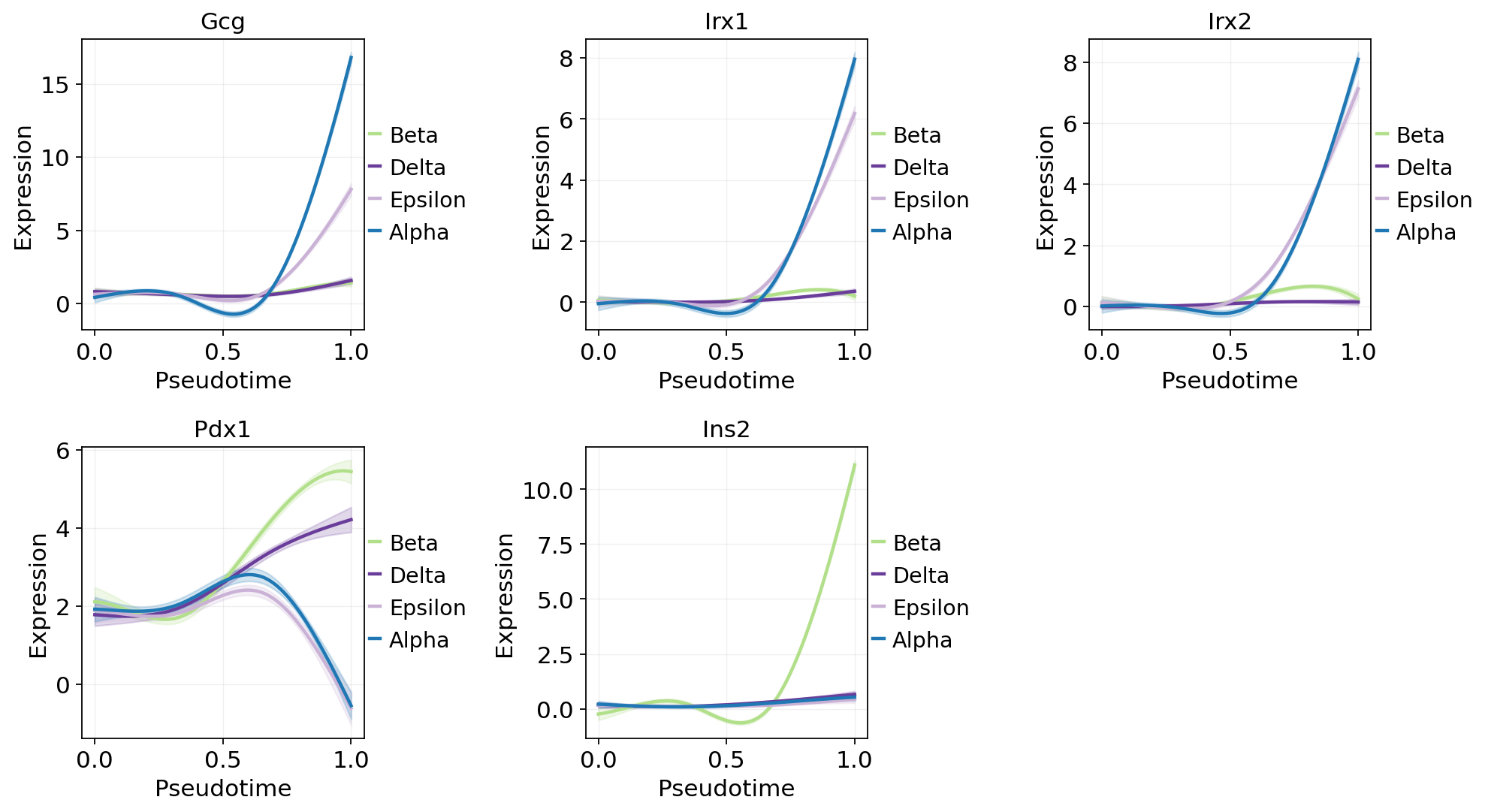

Lines only. Same call without add_point — cleaner panel when you just want the four per-lineage GAM trajectories without the cluster-colour scatter behind them.

# Same fate-weighted fit, lines only.
fit_lines = fate.fit_lineage_trends(
    genes=top_genes,
    n_splines=6,
)
ov.pl.dynamic_trends(
    fit_lines, genes=top_genes[:5],
    compare_groups=True,
    add_point=False,
    figsize=(5, 3.5),
)
plt.show()

Beta: 12/12 genes fitted
Delta: 12/12 genes fitted
Epsilon: 12/12 genes fitted
Alpha: 12/12 genes fitted

🔍 Dynamic trend plotting:
   Features: 5 | Groups: 4
   compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!

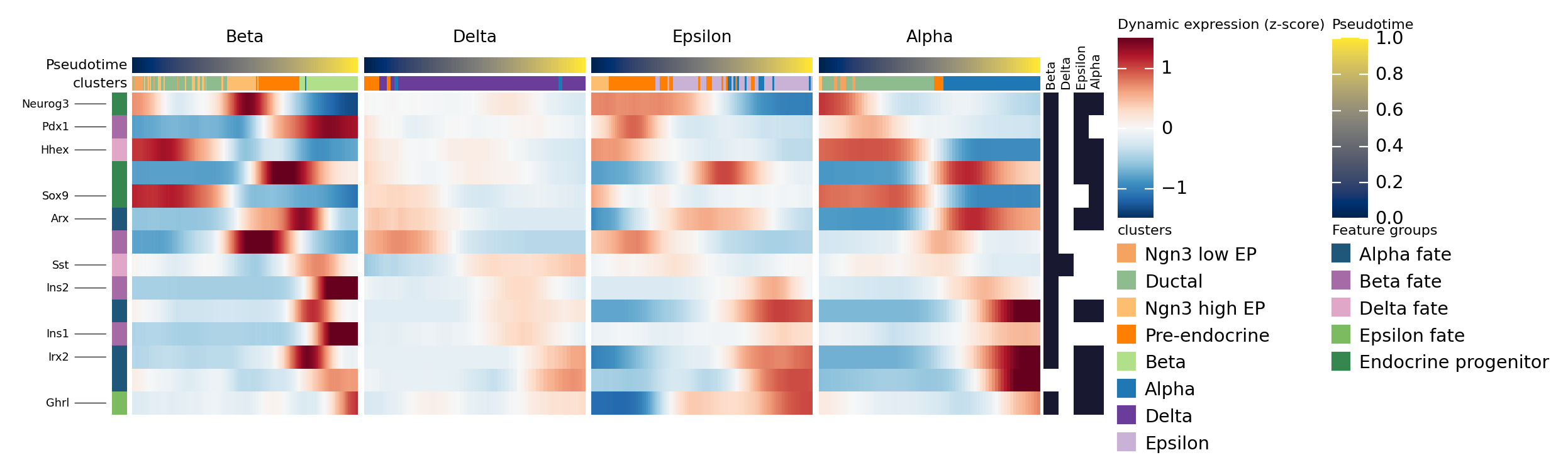

Pseudotime heatmap per lineage (ov.pl.dynamic_heatmap)

Order cells by pseudotime within each lineage and visualise grouped marker programs as a smoothed, fitted heatmap. The cell-annotation strip on top reuses adata.uns['clusters_colors'] so colours line up with the rest of this tutorial.

endocrine_markers = {
    'Alpha fate':         ['Gcg', 'Arx', 'Irx1', 'Irx2'],
    'Beta fate':          ['Ins1', 'Ins2', 'Pdx1', 'Pax4'],
    'Delta fate':         ['Sst', 'Hhex'],
    'Epsilon fate':       ['Ghrl'],
    'Endocrine progenitor': ['Sox9', 'Neurog3', 'Fev'],
}
selected_lineages = list(adata.obs[lineage_key].cat.categories)
g = ov.pl.dynamic_heatmap(
    adata,
    var_names=endocrine_markers,
    pseudotime=pt_key,
    lineage_key=lineage_key,
    lineages=selected_lineages,
    reverse_ht=None,                # only meaningful for 2 lineages
    use_raw=adata.raw is not None,
    use_cell_columns=False,
    cell_annotation='clusters',
    cell_bins=200,
    smooth_window=17,
    fitted_window=31,
    figsize=(5, 4),
    standard_scale='var',
    cmap='RdBu_r',
    use_fitted=True,
    border=False,
    max_lineages=None,           # show every lineage (default keeps only 2)
    show=False,
)
plt.show()

🔍 Dynamic heatmap:
   Candidate features: 14
   Pseudotime: palantir_pseudotime
   Lineage key: palantir_lineage
   Cell annotation: clusters
   use_fitted=True | cell_bins=200 | cmap=RdBu_r
Lineages: Beta, Delta, Epsilon, Alpha
✅ Dynamic heatmap completed!
   ✓ Matrix shape: 14 features × 445 columns

Speed comparison vs CellRank

On the same data + pseudotime, ov.single.PseudotimeFate finishes in under a second, while CellRank’s PseudotimeKernel + GPCCA stack takes ~3 minutes on this CPU (mostly the dense Schur decomposition fallback when petsc4py is not installed). The accuracy is comparable or better — see the speed benchmark in the docs.

stage	time on n=3.7k pancreas	what’s slow in CellRank	ours
bias kNN + Markov	~0.1 s	(same)	sparse row-wise threshold
Schur basis	~30 s	dense brandts fallback	ARPACK eigs on P^T
Macrostates	~30 s	pygpcca rotation optim	ISA + hard assignment
Terminal selection	~0 s	stability ≥ 0.96	residency + pt-quantile + cluster purity dedup
Fate probabilities	~0.5 s	direct linear solve	Neumann series power iteration
Total	~60 s		~0.6 s

References

• Setty M et al. Characterization of cell fate probabilities in single- cell data with Palantir. Nat Biotechnol 37, 451–460 (2019).

• Stassen SV et al. Generalizing RNA velocity to transient cell states. Nat Biotechnol 39, 1582–1590 (2021). (VIA threshold scheme.)

• Lange M et al. CellRank for directed single-cell fate mapping. Nat Methods 19, 159–170 (2022).

• Reuter B et al. Generalized Markov modeling of nonreversible dynamics. Multiscale Model. Simul. 17, 1245–1268 (2019). (GPCCA / PCCA+ theory.)

• Lin C, Bar-Joseph Z. Continuous-state HMMs for modeling time-series single-cell RNA-seq data. Bioinformatics 35, 4707–4715 (2019).
