Case study — immunophenotyping PBMC after cardiac arrest#
This notebook is one complete analysis, from an FCS file to a number you could put in a figure legend, on real published data. Nothing is simulated and nothing is arranged to come out neatly.
If you have never used ov.flow before, start here. Every code cell is three or
four lines of ov.* calls; the explanation is in the text around them.
The question#
After a cardiac arrest, the body goes through a whole-body inflammatory response. A natural question is whether the circulating immune compartment looks different from a healthy person’s — specifically, do the proportions of T cells, and of the CD4 and CD8 subsets within them, differ between healthy donors and patients after out-of-hospital cardiac arrest?
We will answer it, and we will also arrive at an honest statement of how much the answer is worth, which for six samples is not very much. Getting to a defensible “here is what we can and cannot say” is the actual skill.
The data#
Peripheral blood mononuclear cells (PBMC) from healthy donors and from patients after out-of-hospital cardiac arrest, stained with a 14-colour panel and acquired on a BD LSRFortessa.
Kim, Edy (2024). Immunophenotyping of peripheral blood mononuclear cells after out-of-hospital cardiac arrest. Zenodo. 10.5281/zenodo.14311616 — CC-BY-4.0
ov.datasets downloads it from Zenodo the first time and caches it in ./data.
We take three files per group, thinned to 25,000 events each, from the
isotype-control arm only — the samples in this experiment also received
antibodies, and mixing treatment arms would confound “healthy versus arrest” with
“drug versus control”.
The plan#
Read the file and see what is in it
Compensate — undo the optical crosstalk between detectors
Fit the display scales to this instrument and this data
Build a gating strategy — the sequence of decisions that isolates T cells
Look at it, because a gate you have not seen is a gate you cannot defend
Check every sample separately — this is where the surprise is
Answer the question, with the caveat it deserves
Save the strategy so somebody else can re-run exactly this
1. Read#
An FCS file becomes an AnnData: one row per event (a cell passing the
laser), one column per channel (a detector). ov.io.read_fcs does the
reading — it is I/O, so it lives in ov.io, not in ov.flow.
import omicverse as ov
ov.style() # omicverse's plotting defaults — call once, before plotting
adata = ov.datasets.flow_pbmc_fortessa(n_per_group=3, max_events=25000)
adata
🔬 Starting plot initialization...
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
• [MPS] Apple Silicon GPU - Metal Performance Shaders available
____ _ _ __
/ __ \____ ___ (_)___| | / /__ _____________
/ / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ / __/ / (__ ) __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/ /____/\___/
🔖 Version: 2.2.4 📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
🔍 Downloading data to ./data/96_Healthy_Anti-Nectin2_Isotype_3.fcs
⚠️ File ./data/96_Healthy_Anti-Nectin2_Isotype_3.fcs already exists
🔍 Downloading data to ./data/97_Healthy_Anti-Nectin2_Isotype_4.fcs
⚠️ File ./data/97_Healthy_Anti-Nectin2_Isotype_4.fcs already exists
🔍 Downloading data to ./data/94_Healthy_Anti-Nectin2_Isotype_1.fcs
⚠️ File ./data/94_Healthy_Anti-Nectin2_Isotype_1.fcs already exists
🔍 Downloading data to ./data/108_CA_Anti-Nectin2_Isotype_3.fcs
⚠️ File ./data/108_CA_Anti-Nectin2_Isotype_3.fcs already exists
🔍 Downloading data to ./data/110_CA_Anti-Nectin2_Isotype_5.fcs
⚠️ File ./data/110_CA_Anti-Nectin2_Isotype_5.fcs already exists
🔍 Downloading data to ./data/106_CA_Anti-Nectin2_Isotype_1.fcs
⚠️ File ./data/106_CA_Anti-Nectin2_Isotype_1.fcs already exists
150,000 events x 16 channels from 6 files
Kim, Edy (2024). Immunophenotyping of peripheral blood mononuclear cells after out-of-hospital cardiac arrest. Zenodo. https://doi.org/10.5281/zenodo.14311616 (CC-BY-4.0)
AnnData object with n_obs × n_vars = 150000 × 16
obs: 'sample', 'group', 'source_file'
var: 'n', 'channel', 'marker', 'PnB', 'PnE', 'PnG', 'PnR'
uns: 'fcs', 'dataset'
obs carries which file and which group each event came from. var
carries the two names every cytometry channel has — the detector the machine
recorded (FITC-A) and the marker the antibody on it stains (CD3). You can
use either name anywhere in ov.flow.
The PnR column is the top of scale: the largest value this instrument can
report. It matters later.
adata.var[["channel", "marker", "PnR"]]
channel marker PnR
FSC-A FSC-A 262144.0
SSC-A SSC-A 262144.0
CD3 FITC-A CD3 262144.0
Tim3 PE-A Tim3 262144.0
Nectin2 PerCP-Cy5-5-A Nectin2 262144.0
IL10 PE-Cy7-A IL10 262144.0
IFNg APC-A IFNg 262144.0
TNFa APC-Cy7-A TNFa 262144.0
CD4 BV421-A CD4 262144.0
CD8 AmCyan-A CD8 262144.0
TIGIT BV605-A TIGIT 262144.0
CD14 BV650-A CD14 262144.0
CD16 BV711-A CD16 262144.0
CD56 BV786-A CD56 262144.0
LIVE DEAD Alexa Fluor 350-A LIVE DEAD 262144.0
Time Time 262144.0
2. Compensate#
Fluorochromes are not tidy. Each one emits light over a broad spectrum, so the detector meant for CD4 also picks up some of the light from the CD3 dye. The effect is called spillover, and without correcting it a bright CD3 cell looks faintly CD4-positive purely as an optical artefact.
The instrument measures how much each dye leaks into each detector and writes it into the file as a matrix. Look at it first.

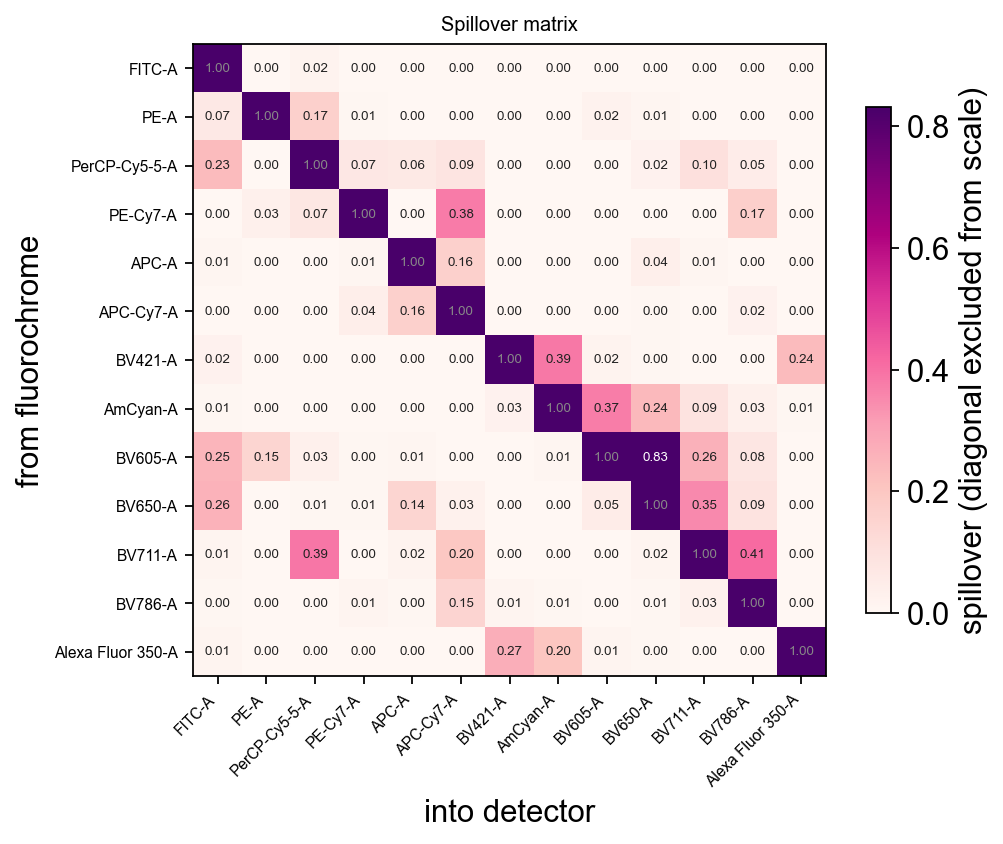

ov.flow.spillover_heatmap(adata, figsize=(6.4, 5.2))
None
Rows are fluorochromes, columns are detectors. The diagonal is 1.0 by definition and is excluded from the colour scale — leaving it in would squash every other value into the pale end. Some of these are large: the worst pair leaks 83%, meaning that detector sees almost as much of the wrong dye as of its own.
compensate inverts that matrix and applies it. It reads the file’s own
$SPILLOVER keyword, keeps the uncorrected values as a layer, and refuses to run
twice — compensating twice is silently destructive because the numbers stay
plausible.
ov.flow.compensate(adata)
adata.uns["flow"]["compensated"], list(adata.layers)
(True, ['uncompensated'])
3. Fit the display scales#
Cytometry data spans four or five decades, so it is never plotted linearly. But after compensation a lot of values are negative — subtracting spillover from a dim cell easily lands below zero — and a log axis cannot show a negative number at all. Those events would silently vanish, including exactly the dim events a threshold has to be drawn between.
The field’s answer is a biexponential scale (logicle): linear near zero,
logarithmic further out, so the whole range fits on one axis. It has a parameter
W controlling how wide the linear part is, and the right value depends on how
noisy this particular detector was.
auto_transforms handles both things that are easy to get wrong: it reads each
channel’s top of scale from $PnR rather than assuming a constant, and it fits
W to each channel’s own negative values using the published estimator. Scatter
channels get a plain linear scale, since they have no negatives to accommodate.
tr = ov.flow.auto_transforms(adata)
{name: f"{type(t).__name__}(t={t.t:,.0f}"
+ (f", w={t.w:.2f})" if hasattr(t, "w") else ")")
for name, t in list(tr.items())[:6]}
{'FSC-A': 'Linear(t=262,144)',
'SSC-A': 'Linear(t=262,144)',
'CD3': 'Logicle(t=262,144, w=1.38)',
'Tim3': 'Logicle(t=262,144, w=1.31)',
'Nectin2': 'Logicle(t=262,144, w=1.85)',
'IL10': 'Logicle(t=262,144, w=0.61)'}
4. Build the gating strategy#
Gating is cytometry’s core operation: a sequence of regions drawn on two-parameter plots, each one applied only to the events the previous one kept. It is how you isolate a population when there is no single marker that defines it.
Our sequence:
Step |
Plot |
Keeps |
Why |
|---|---|---|---|
|
FSC-A × SSC-A |
intact cells |
size and granularity separate real cells from debris |
|
viability dye |
living cells |
a dead cell leaks dye in and stains bright |
|
CD3 |
T lymphocytes |
CD3 is the defining T-cell marker |
|
CD4 × CD8 |
four subsets |
the two main T-cell lineages, plus the two “neither” and “both” corners |
Three things about how this is written:
Thresholds are in data units.
above=400means 400 units of CD3 fluorescence — the number you would read off the axis. The gate stores its boundary internally on the transformed scale, andov.flow.thresholddoes that conversion for you. Typing the transformed number by hand is the classic way a gate silently ends up somewhere else.Every gate carries its transform. That is what makes it re-applicable to another file, and savable.
parent=builds the tree. Each gate is evaluated only on its parent’s events, soT cellsmeans “CD3-positive among live cells”.
gs = ov.flow.GatingStrategy("PBMC immunophenotyping")
gs.add_gate(ov.flow.polygon(
"Cells", "FSC-A", "SSC-A",
[(28000, 2000), (28000, 72000), (95000, 130000),
(165000, 130000), (165000, 30000), (80000, 2000)], transforms=tr))
gs.add_gate(ov.flow.threshold("Live", "LIVE DEAD", below=400, transforms=tr),
parent="Cells")
gs.add_gate(ov.flow.threshold("T cells", "CD3", above=400, transforms=tr),
parent="Live")
gs.add_gate(ov.flow.quadrant("CD4/CD8", "CD4", "CD8", 120, 250, transforms=tr,
names=("DN T", "CD4 T", "CD8 T", "DP T")),
parent="T cells")
print(gs.tree())
root
└ Cells
└ Live
└ T cells
└ CD4/CD8
└ DN T
└ CD4 T
└ CD8 T
└ DP T
Applying the strategy walks that tree and returns one boolean mask per population.
res = gs.apply(adata)
res.stats()
population parent count parent_count freq_parent freq_total low_n
0 CD4 T T cells 23177 59681 0.388348 0.154513 False
1 CD4/CD8 T cells 59681 59681 1.000000 0.397873 False
2 CD8 T T cells 19440 59681 0.325732 0.129600 False
3 Cells root 91031 150000 0.606873 0.606873 False
4 DN T T cells 16841 59681 0.282184 0.112273 False
5 DP T T cells 223 59681 0.003737 0.001487 False
6 Live Cells 90210 91031 0.990981 0.601400 False
7 T cells Live 59681 90210 0.661579 0.397873 False
Reading this table:
count— events in the populationparent/parent_count— what it is a fraction offreq_parent— the number people actually report (“31% of T cells”). It is meaningless without its denominator, which is why the parent is named in its own columnlow_n— flags populations too small for the percentage to mean anything. A frequency measured on 30 events has a 95% confidence interval of roughly ±18 percentage points; printing it to one decimal place is false precision

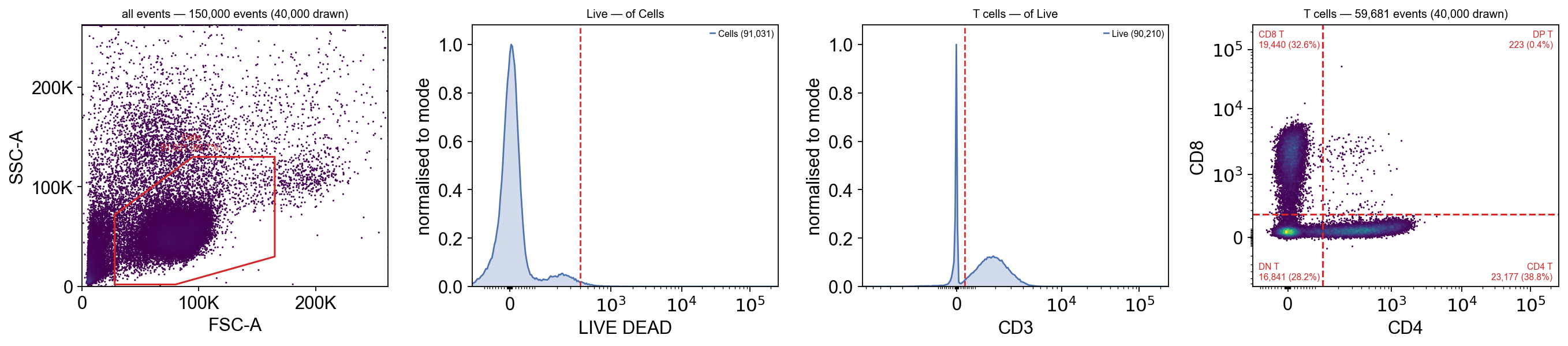

5. Look at the gates#
Do not skip this. A statistics table cannot tell you whether a gate is in the
right place — only the picture can. plot_strategy draws the whole sequence
from the strategy object: one panel per gate, each on its parent’s events, each
in that gate’s own scale.
ov.flow.plot_strategy(adata, gs, res, transforms=tr, ncols=4)
None
What to check, panel by panel:
FSC × SSC — the polygon should contain the dense cloud of cells and exclude the debris pressed against the bottom-left corner.
Viability — the threshold should sit in the valley to the right of the big negative peak. Here it removes very little, which tells you the sample was fresh. That is worth saying out loud rather than implying the gate did work it did not do.
CD3 — two clear humps, threshold between them.
CD4 × CD8 — the two arms should be visible and the dividers should sit in the gaps.

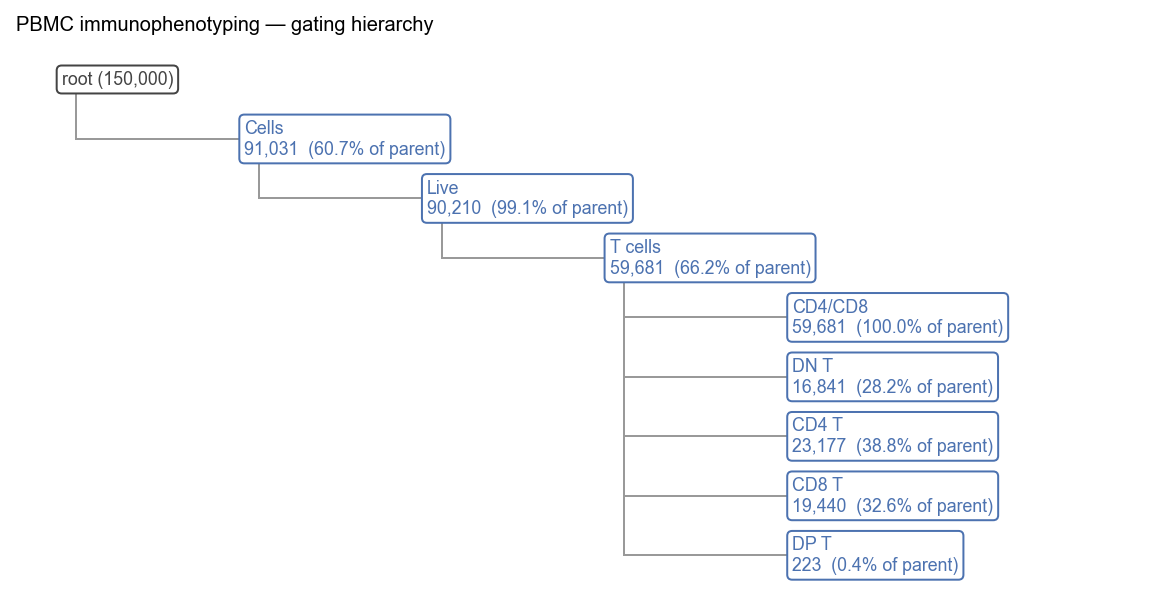

The hierarchy view puts the same numbers on the tree, which is the fastest way to see where events were lost:
ov.flow.hierarchy(gs, result=res, figsize=(9, 4.5))
None
6. Check every sample separately#
Here is the step that matters most and is skipped most often.
Everything above pooled six files into one matrix. That is fine for drawing
gates, but a frequency computed on pooled data is an average, and an average
hides a broken sample. batch_stats re-runs the same strategy on each sample
independently and returns one row per sample per population.

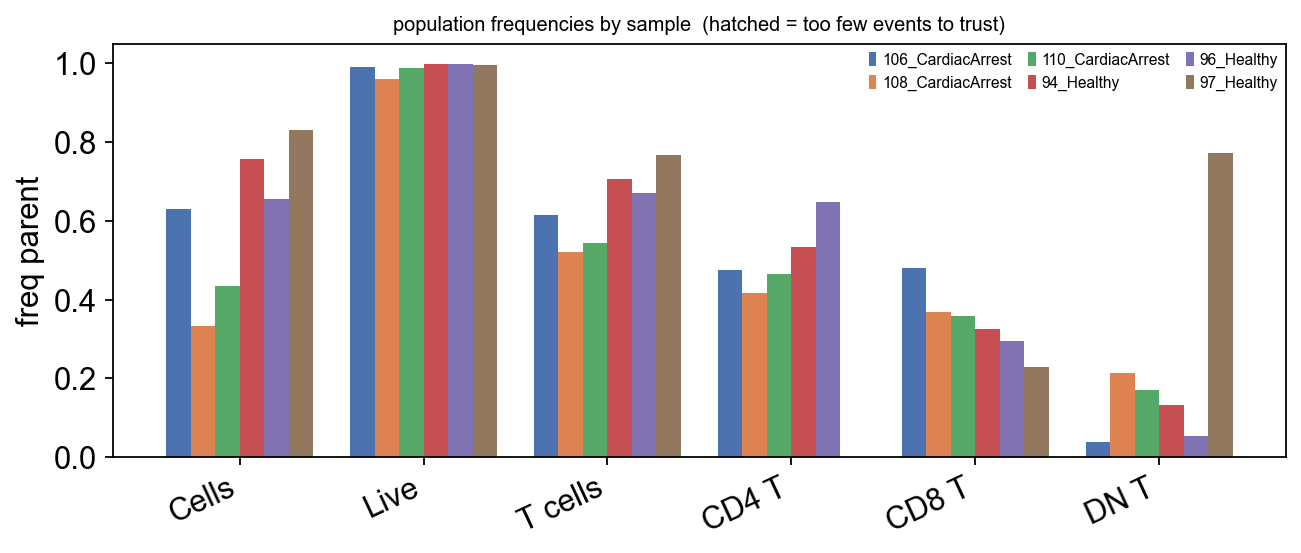

stats = ov.flow.batch_stats(adata, gs, groupby="sample")
ov.flow.plot_batch(stats, populations=["Cells", "Live", "T cells",
"CD4 T", "CD8 T", "DN T"])
None
Look at the DN T group — double-negative T cells, which are CD3+ but
neither CD4 nor CD8. In healthy blood they are 1–5% of T cells. Here one bar is
enormous.
Sorted, so there is no ambiguity about which sample it is:
stats.query("population == 'DN T'").sort_values("freq_parent")[
["sample", "count", "parent_count", "freq_parent", "low_n"]]
sample count parent_count freq_parent low_n
4 106_CardiacArrest 377 9596 0.039287 False
36 96_Healthy 584 10941 0.053377 False
28 94_Healthy 1782 13315 0.133834 False
20 110_CardiacArrest 995 5820 0.170962 False
12 108_CardiacArrest 894 4160 0.214904 False
44 97_Healthy 12209 15849 0.770333 False
Five samples span roughly 4% to 22%. That is already higher than the 1–5% quoted for resting blood, and there is a reason: these are PBMC in an in vitro assay, and activated T cells downmodulate surface CD4 and CD8. A stimulation experiment producing a fifth of its T cells in the double-negative corner is unremarkable.
The sixth sample is at 77%, and that is not the same thing. A genuine 77% DN population would be a case report. What it looks like is a failed or weak CD4/CD8 stain in that one tube: if neither antibody bound properly, every T cell lands in the double-negative corner regardless of what it really is.
The confirming detail is in the same table, one population over:
stats.query("population == 'CD4 T'").sort_values("count")[
["sample", "count", "parent_count", "freq_parent", "low_n"]]
sample count parent_count freq_parent low_n
40 97_Healthy 3 15849 0.000189 True
8 108_CardiacArrest 1733 4160 0.416587 False
16 110_CardiacArrest 2711 5820 0.465808 False
0 106_CardiacArrest 4549 9596 0.474052 False
32 96_Healthy 7084 10941 0.647473 False
24 94_Healthy 7097 13315 0.533008 False
That sample has three CD4 T cells out of nearly sixteen thousand
T cells, and low_n flags it. Three is not a small population; three is an
antibody that did not bind. No biological story produces a donor with three CD4
T cells who is otherwise unremarkable.
Two things worth taking from this:
The pooled number was a fiction. Averaged over six files the DN frequency looks moderately elevated, which is exactly the kind of number that gets written into a paper as a finding. Only the per-sample view shows it is one tube.
Do not fix it by moving the gate. The tempting response is to lower the CD4 threshold until the number looks reasonable. That would be fitting the analysis to the answer you wanted, and it would corrupt the five samples that were fine. The gate is not wrong; the sample is.
7. Exclude it — visibly#
The defensible response is to exclude the sample and say that you did, with the reason. Never silently.
bad = stats.query("population == 'DN T' and freq_parent > 0.5")["sample"].tolist()
print("excluded for failed CD4/CD8 staining:", bad)
clean = adata[~adata.obs["sample"].isin(bad)].copy()
stats_clean = ov.flow.batch_stats(clean, gs, groupby="sample")

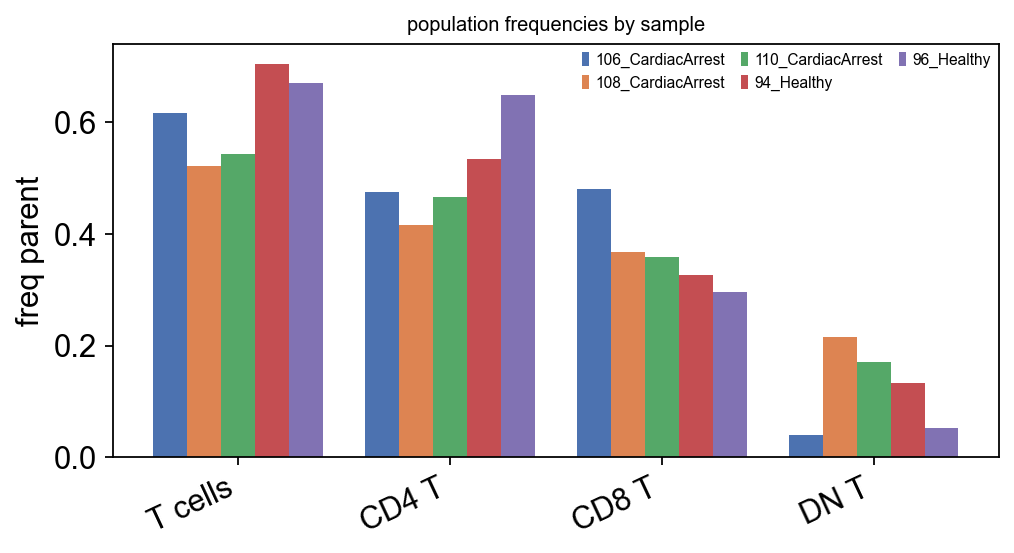

ov.flow.plot_batch(stats_clean, populations=["T cells", "CD4 T", "CD8 T", "DN T"])
None
excluded for failed CD4/CD8 staining: ['97_Healthy']
Now the DN bars are where they should be and the CD4/CD8 split is consistent across samples.
8. The answer#
Group the surviving samples and compare.
groups = clean.obs.drop_duplicates("sample").set_index("sample")["group"]
summary = stats_clean.query(
"population in ['T cells', 'CD4 T', 'CD8 T', 'NK']").copy()
summary["group"] = summary["sample"].map(groups)
summary.groupby(["population", "group"], observed=True)["freq_parent"].agg(
["mean", "std", "count"]).round(3)
mean std count
population group
CD4 T CardiacArrest 0.452 0.031 3
Healthy 0.590 0.081 2
CD8 T CardiacArrest 0.402 0.068 3
Healthy 0.311 0.022 2
T cells CardiacArrest 0.560 0.050 3
Healthy 0.687 0.024 2
What this shows. All three numbers move in the same direction: the cardiac-arrest samples have a smaller T-cell fraction, a smaller CD4 proportion within it, and a larger CD8 proportion — that is, a lower CD4:CD8 ratio. The gaps between the means (roughly 13, 14 and 9 percentage points) are larger than the within-group spreads, so this is not obviously noise.
What it does not show. It is not a result, for reasons that have nothing to do with the analysis:
n = 3 versus n = 2. The healthy group lost a sample to the QC exclusion. Two donors cannot establish a group mean, and no test on these numbers would mean anything — which is why none is run here.
Donor-to-donor variation in immunophenotyping is large, often larger than the effects people look for. Three donors cannot separate the two.
The samples are not matched for age, sex, time since arrest, or any of the clinical covariates that move lymphocyte counts.
So: a direction consistent with what is described after severe systemic inflammation, on far too few samples to claim it. The honest write-up is “in these six donors, of whom one was excluded for a staining failure, the cardiac-arrest samples trended toward a lower CD4:CD8 ratio” — and then you go and run it on the other 26 files.
This notebook is a demonstration of the method. Its most important output is the QC finding in step 6, not the group comparison.
If you want to go further, the Zenodo record has 32 files — pass n_per_group=3
and the other treatment arms, or work from the full record.
9. Save the strategy#
The strategy is an object, not a sequence of clicks, so it can be written to Gating-ML 2.0 — the ISAC interchange standard that FlowJo, Cytobank and flowCore all read. This is what makes the analysis reproducible by someone else, in software you do not control.
ov.flow.write_gatingml(gs, "pbmc_strategy.xml")
reloaded = ov.flow.read_gatingml("pbmc_strategy.xml")
mine = gs.apply(clean.copy(), write_obs=False).stats().set_index("population")["count"]
theirs = reloaded.apply(clean.copy(), write_obs=False).stats().set_index("population")["count"]
print(f"{len(reloaded)} gates read back")
print("every population count identical after the round trip:", mine.equals(theirs))
4 gates read back
every population count identical after the round trip: True
10. A cross-check with clustering#
Manual gating encodes what you already expect to find. Unsupervised clustering does not, so running it is a way of asking whether the gates missed something.
flowsom is the cytometry standard. Run it on the gated T cells — clustering
before gating lets debris and dead cells form their own clusters and dominate the
result.
res_clean = gs.apply(clean, write_obs=False)
t_cells = clean[res_clean.masks["T cells"]].copy()
ov.flow.apply_transforms(t_cells) # cluster on the display scale, not raw
ov.flow.flowsom(t_cells, n_clusters=5, layer="transformed",
markers=["CD4", "CD8", "CD56", "CD16"], random_state=0)
ov.flow.flowsom_heatmap(t_cells, layer="transformed",
markers=["CD4", "CD8", "CD56", "CD16"], figsize=(5.6, 3.2))
None

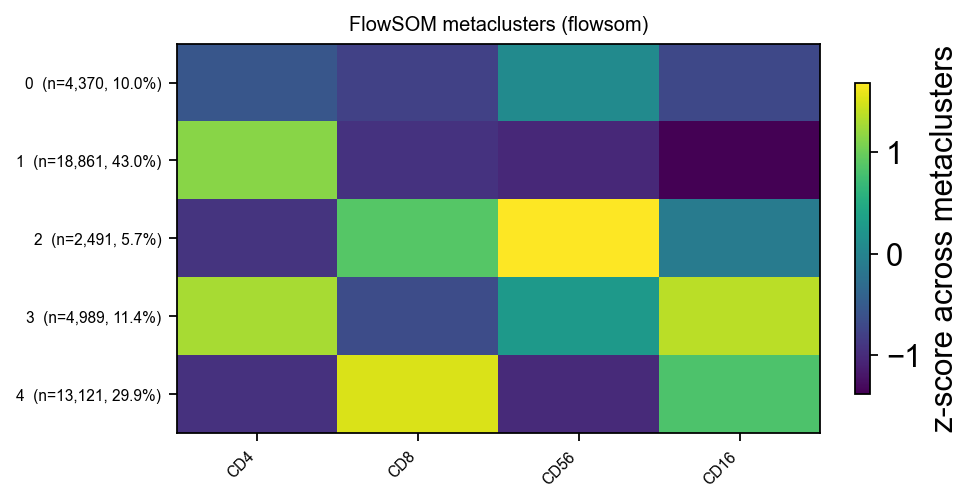

Each row is a metacluster, each column a marker, colour is the z-scored mean. If the CD4-high and CD8-high clusters line up with the gates you drew, the gating agrees with an unsupervised view of the same events — which is a meaningful check, because the clustering had no idea what you were looking for.
Summary — the whole analysis#
adata = ov.datasets.flow_pbmc_fortessa(n_per_group=3) # 1. read
ov.flow.compensate(adata) # 2. compensate
tr = ov.flow.auto_transforms(adata) # 3. fit the scales
gs = ov.flow.GatingStrategy("PBMC") # 4. gate
gs.add_gate(ov.flow.polygon("Cells", "FSC-A", "SSC-A", verts, transforms=tr))
gs.add_gate(ov.flow.threshold("Live", "LIVE DEAD", below=400, transforms=tr),
parent="Cells")
gs.add_gate(ov.flow.threshold("T cells", "CD3", above=400, transforms=tr),
parent="Live")
gs.add_gate(ov.flow.quadrant("CD4/CD8", "CD4", "CD8", 120, 250, transforms=tr),
parent="T cells")
res = gs.apply(adata)
ov.flow.plot_strategy(adata, gs, res, transforms=tr) # 5. look at it
stats = ov.flow.batch_stats(adata, gs, groupby="sample")# 6. per sample
ov.flow.plot_batch(stats)
ov.flow.write_gatingml(gs, "strategy.xml") # 9. save it
ov.flow.apply_transforms(t_cells) # 10. cross-check
ov.flow.flowsom(t_cells, n_clusters=5, layer="transformed", markers=[...])
The three habits worth taking away
Look at every gate. A table cannot tell you a gate is misplaced.
Never report a pooled frequency without looking at the spread. One failed tube moves an average a long way, and the average is what gets published.
When a number is implausible, suspect the sample before adjusting the gate. Moving a threshold until the answer looks right is fitting the analysis to the conclusion.
Separate the direction from the claim. Six samples can show you a direction. They cannot support a result, and saying so costs nothing.
Where to go next#
Reading, compensation and display scales — the mechanics of steps 1–3, on simulated data where the right answer is known
Gates and the strategy tree — all five gate geometries, back-gating, boolean gates
Saving and re-applying a strategy — Gating-ML in depth, diffing two strategies
FlowSOM — clustering, and the order that makes it trustworthy
The whole module on real data — the same datasets with the instrument-level detail (
$PnR, fittingW, spectral versus conventional)
