The whole module on real data

Every other notebook in this series runs on ov.datasets.flow_demo(), which is simulated — deliberately, because a simulation is the only way to show what spillover did, and the only way to check a gate against the answer.

This one runs on two real, published, openly-licensed experiments. Nothing here is arranged for convenience, and three things break that never break on simulated data:

1. the top of scale is not 262,144 — it is whatever the instrument wrote into $PnR, and it differs between instruments and between channels;

2. the logicle W that looked fine on simulated data crushes the negative population into the axis, because real detector noise is far wider;

3. the populations overlap, so a gate is a judgement call rather than a line between two clean clouds.

The two datasets, and why it takes two

No openly-licensed cytometry dataset carries a full CD3/CD4/CD8/CD19 hierarchy and a real spillover matrix and the FSC-H a singlet gate needs. Each of these has two of the three, so the notebook uses both and is explicit about which lesson each one supports.

	flow_pbmc_fortessa	flow_pbmc_spectral
Instrument	BD LSRFortessa (conventional)	Cytek Aurora (full spectrum)
Spillover	real 13×13, uncompensated	9×9 identity — unmixed at acquisition

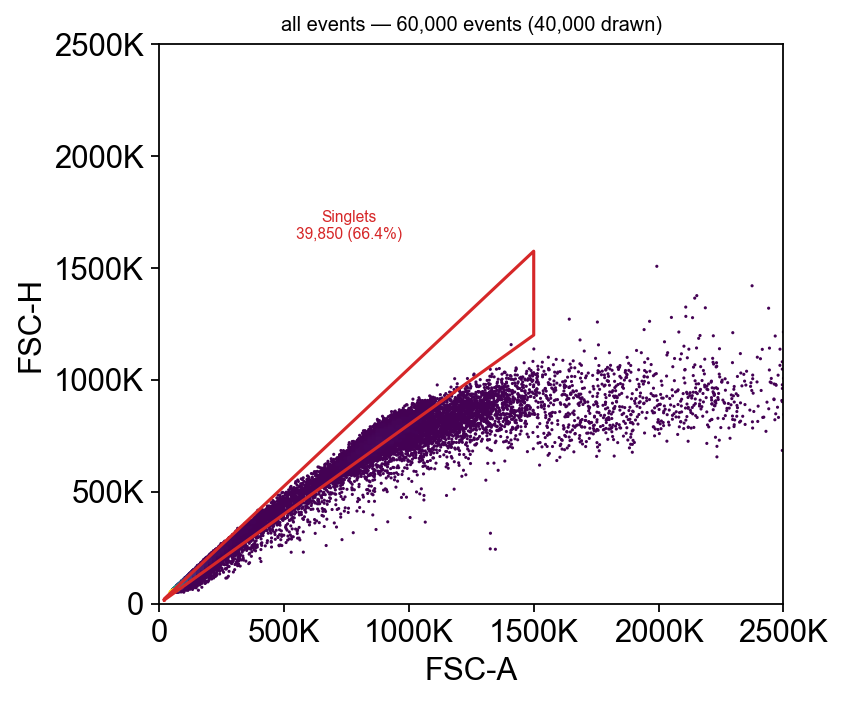

Singlet gate	✗ no FSC-H	✓ FSC-A + FSC-H
B cells	✗ no CD19	✓ CD19
Samples	32 files, identical panel	6 donors

Citations — both are CC-BY-4.0 and are downloaded from their original repositories rather than re-hosted:

• Kim, Edy (2024). Immunophenotyping of peripheral blood mononuclear cells after out-of-hospital cardiac arrest. Zenodo. 10.5281/zenodo.14311616

• Gootjes C, Zwaginga JJ, Nikolic T, Roep BO (2026). Limited efficacy of a therapeutic anti-CD40 monoclonal antibody to inhibit activated CD4 T cell autoimmunity in vitro. PLOS ONE. 10.1371/journal.pone.0351131

The loaders cache into ./data, so the download happens once.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import omicverse as ov

ov.style()          # omicverse's plotting defaults

adata = ov.datasets.flow_pbmc_fortessa(n_per_group=2, max_events=25000)
adata

🔬 Starting plot initialization...
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
    • [MPS] Apple Silicon GPU - Metal Performance Shaders available

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 2.2.4   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.

🔍 Downloading data to ./data/96_Healthy_Anti-Nectin2_Isotype_3.fcs
⚠️ File ./data/96_Healthy_Anti-Nectin2_Isotype_3.fcs already exists
🔍 Downloading data to ./data/97_Healthy_Anti-Nectin2_Isotype_4.fcs
⚠️ File ./data/97_Healthy_Anti-Nectin2_Isotype_4.fcs already exists
🔍 Downloading data to ./data/108_CA_Anti-Nectin2_Isotype_3.fcs
⚠️ File ./data/108_CA_Anti-Nectin2_Isotype_3.fcs already exists
🔍 Downloading data to ./data/110_CA_Anti-Nectin2_Isotype_5.fcs
⚠️ File ./data/110_CA_Anti-Nectin2_Isotype_5.fcs already exists
100,000 events x 16 channels from 4 files
Kim, Edy (2024). Immunophenotyping of peripheral blood mononuclear cells after out-of-hospital cardiac arrest. Zenodo. https://doi.org/10.5281/zenodo.14311616 (CC-BY-4.0)

AnnData object with n_obs × n_vars = 100000 × 16
    obs: 'sample', 'group', 'source_file'
    var: 'n', 'channel', 'marker', 'PnB', 'PnE', 'PnG', 'PnR'
    uns: 'fcs', 'dataset'

The top of scale comes from the file

ov.flow.Linear(t=262144) is what a BD instrument happens to use. It is not a constant of nature, and hard-coding it is the first thing that breaks when a file from another cytometer arrives. read_fcs keeps $PnR — the top of scale the acquisition software declared — per channel.

adata.var[["channel", "marker", "PnR"]]

                     channel     marker       PnR
FSC-A                  FSC-A             262144.0
SSC-A                  SSC-A             262144.0
CD3                   FITC-A        CD3  262144.0
Tim3                    PE-A       Tim3  262144.0
Nectin2        PerCP-Cy5-5-A    Nectin2  262144.0
IL10                PE-Cy7-A       IL10  262144.0
IFNg                   APC-A       IFNg  262144.0
TNFa               APC-Cy7-A       TNFa  262144.0
CD4                  BV421-A        CD4  262144.0
CD8                 AmCyan-A        CD8  262144.0
TIGIT                BV605-A      TIGIT  262144.0
CD14                 BV650-A       CD14  262144.0
CD16                 BV711-A       CD16  262144.0
CD56                 BV786-A       CD56  262144.0
LIVE DEAD  Alexa Fluor 350-A  LIVE DEAD  262144.0
Time                    Time             262144.0

# Build the transforms from the file, not from a constant.
T = float(adata.var.loc["FSC-A", "PnR"])
lin = ov.flow.Linear(t=T)
print(f"scatter top of scale from $PnR: {T:,.0f}")

scatter top of scale from $PnR: 262,144

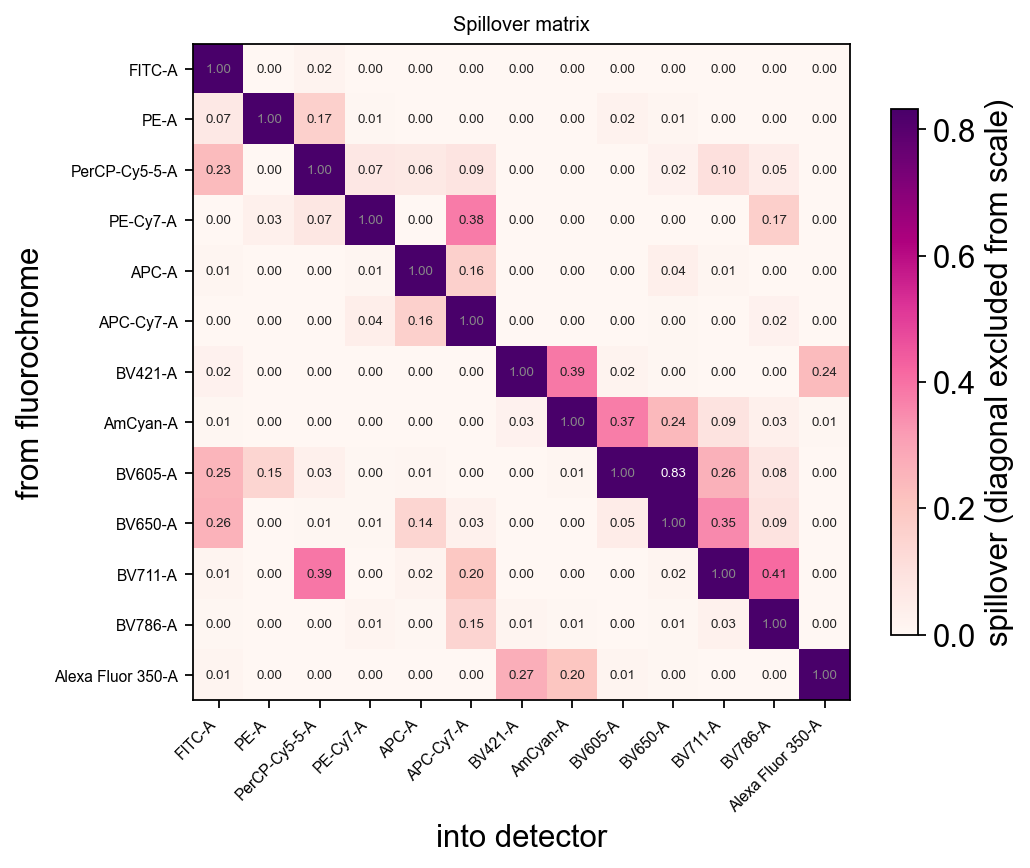

The spillover matrix is real here

93 of the 156 off-diagonal entries are non-zero and the largest is 0.83 — that is, one detector picks up 83% as much signal from the wrong fluorochrome as from its own. This is why the compensation step exists.

spill = adata.uns["fcs"]["spillover"]
off = spill.to_numpy()[~np.eye(spill.shape[0], dtype=bool)]
print(f"{spill.shape[0]}x{spill.shape[1]} matrix, "
      f"{int((off != 0).sum())}/{off.size} off-diagonal terms non-zero, "
      f"largest {off.max():.3f}")
ov.flow.spillover_heatmap(adata, figsize=(6.6, 5.4))
None

13x13 matrix, 93/156 off-diagonal terms non-zero, largest 0.832

Compensating

compensate uses the file’s own matrix. Keep an uncompensated copy — the comparison is the whole point, and the operation is refused if run twice.

sp = spill.to_numpy().copy()
np.fill_diagonal(sp, 0.0)
i, j = np.unravel_index(np.argmax(sp), sp.shape)
src_det, dst_det = spill.index[i], spill.columns[j]
det2marker = dict(zip(adata.var["channel"], adata.var.index))
src, dst = det2marker[src_det], det2marker[dst_det]
print(f"worst pair: {src} ({src_det}) spills {sp[i, j]:.1%} into {dst} ({dst_det})")

raw = adata.copy()
ov.flow.compensate(adata)

worst pair: TIGIT (BV605-A) spills 83.2% into CD14 (BV650-A)

AnnData object with n_obs × n_vars = 100000 × 16
    obs: 'sample', 'group', 'source_file'
    var: 'n', 'channel', 'marker', 'PnB', 'PnE', 'PnG', 'PnR'
    uns: 'fcs', 'dataset', 'flow'
    layers: 'uncompensated'

The transform has to be fitted to the data

Before looking at anything, the display scale has to be fitted — and this is the part a simulated tutorial cannot teach honestly. W sets how wide the logicle’s linear region is, and the value that looked right on simulated data is far too narrow for a real detector: real compensated negatives run to tens of thousands of units below zero, not tens. (Fit it after compensation, since compensation is what creates most of those negatives.)

There is a published estimator for it.

def auto_w(values, T, M=4.5):
    """The Parks/Moore auto-logicle width.

    W = (M - log10(T / |r|)) / 2, with r the 5th percentile of the NEGATIVE
    values — i.e. make the linear region just wide enough to hold the noise the
    detector actually produced. Published in Parks, Roederer & Moore (2006),
    Cytometry A 69:541, the same paper the logicle scale comes from.
    """
    negatives = values[values < 0]
    if negatives.size < 10:
        return 0.5                      # nothing below zero: nothing to make room for
    r = np.percentile(negatives, 5)
    w = (M - np.log10(T / abs(r))) / 2.0
    return float(np.clip(w, 0.1, M / 2 - 0.1))

markers = ["CD3", "CD4", "CD8", "CD14", "CD16", "CD56", "LIVE DEAD"]
rows = []
for m in markers:
    v = adata[:, m].X.ravel()
    Tm = float(adata.var.loc[m, "PnR"])
    rows.append({"marker": m, "$PnR": Tm,
                 "5th pct of negatives": np.percentile(v[v < 0], 5) if (v < 0).any() else np.nan,
                 "% below zero": (v < 0).mean(),
                 "W": auto_w(v, Tm)})
widths = pd.DataFrame(rows).set_index("marker")
widths.style.format({"$PnR": "{:,.0f}", "5th pct of negatives": "{:,.0f}",
                     "% below zero": "{:.1%}", "W": "{:.2f}"})

	$PnR	5th pct of negatives	% below zero	W
marker
CD3	262,144	-5,594	46.7%	1.41
CD4	262,144	-155	28.3%	0.64
CD8	262,144	-511	7.2%	0.89
CD14	262,144	-4,288	78.0%	1.36
CD16	262,144	-102	28.6%	0.55
CD56	262,144	-118	34.3%	0.58
LIVE DEAD	262,144	-122	29.3%	0.58

tr = {m: ov.flow.Logicle(t=float(adata.var.loc[m, "PnR"]), m=4.5,
                         w=widths.loc[m, "W"], a=0.0)
      for m in markers}

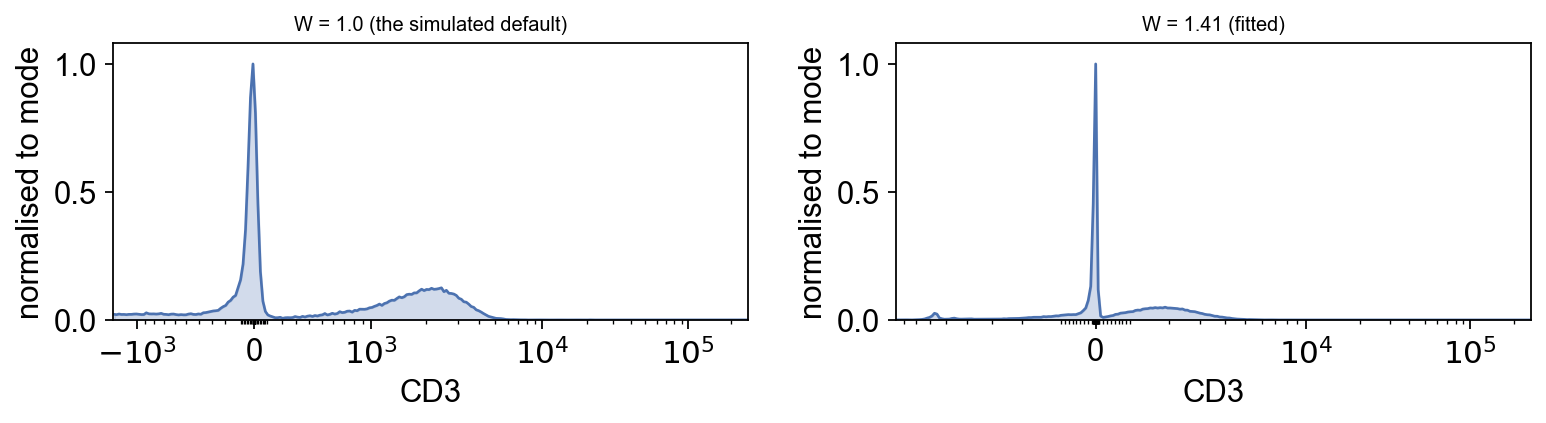

# What the simulated notebooks used, for comparison.
lg_rough = ov.flow.Logicle(t=T, m=4.5, w=1.0, a=0.0)

fig, axes = plt.subplots(1, 2, figsize=(10, 2.9))
ov.flow.histogram(adata, "CD3", transforms={"CD3": lg_rough}, ax=axes[0],
                  title="W = 1.0 (the simulated default)")
ov.flow.histogram(adata, "CD3", transforms={"CD3": tr["CD3"]}, ax=axes[1],
                  title=f"W = {widths.loc['CD3', 'W']:.2f} (fitted)")
plt.tight_layout()

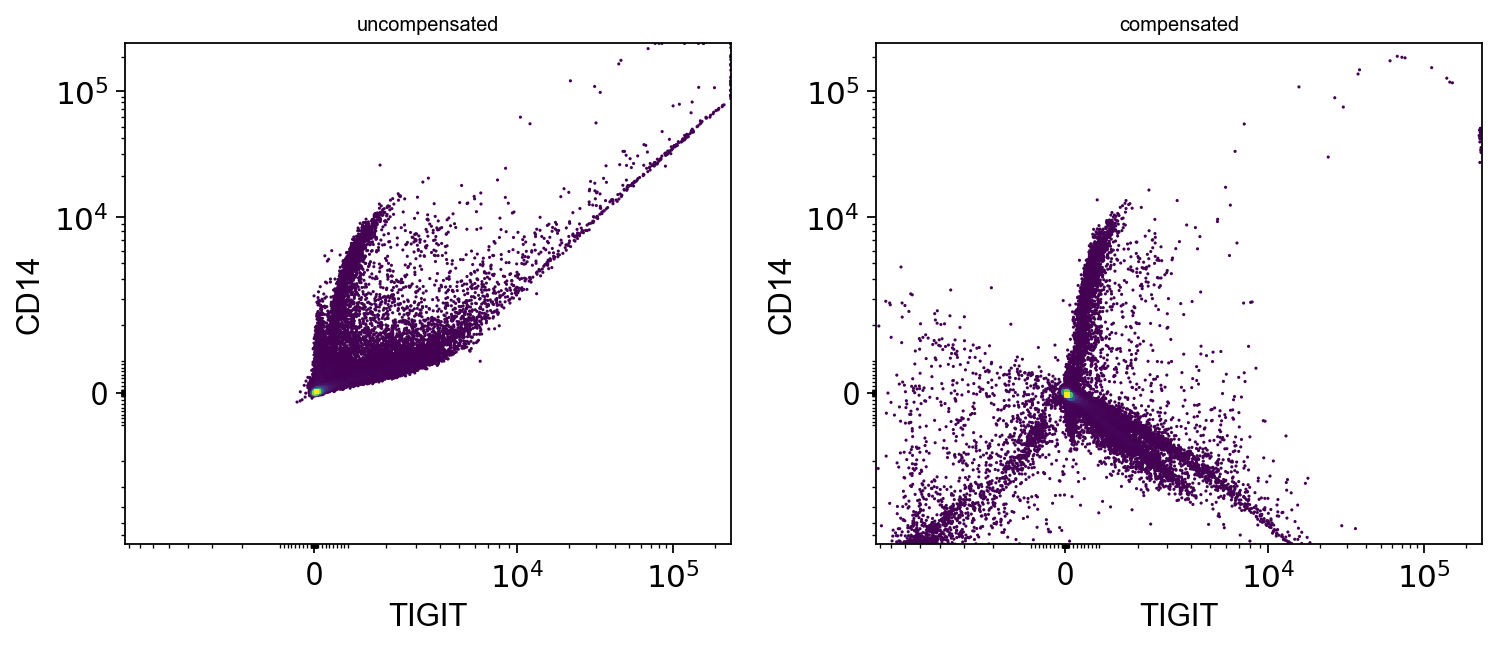

Now the before-and-after is readable

The same pair, on the fitted scale. Uncompensated, {src} leaking into the {dst} detector produces the classic diagonal smear — every {src}-bright event looks slightly {dst}-positive in proportion to how bright it is.

Compensated, the smear is gone. What replaces it is a fan of negative values, and that is not an error: subtracting 83% of one detector from another pushes dim events well below zero. It is the price of a correction that large, and it is the reason the axis has to be biexponential.

fig, axes = plt.subplots(1, 2, figsize=(9.6, 4.3))
pair_tr = {src: tr[src] if src in tr else ov.flow.Logicle(
               t=float(adata.var.loc[src, "PnR"]), m=4.5,
               w=auto_w(adata[:, src].X.ravel(), float(adata.var.loc[src, "PnR"])), a=0.0),
           dst: tr[dst] if dst in tr else ov.flow.Logicle(
               t=float(adata.var.loc[dst, "PnR"]), m=4.5,
               w=auto_w(adata[:, dst].X.ravel(), float(adata.var.loc[dst, "PnR"])), a=0.0)}
for ax, sample, title in ((axes[0], raw, "uncompensated"),
                          (axes[1], adata, "compensated")):
    ov.flow.biaxial(sample, src, dst, transforms=pair_tr, ax=ax,
                    title=title, max_events=40000)
plt.tight_layout()

The negative population is a population. At the default width it is a spike against the axis; fitted, it is a distribution you can put a threshold next to.

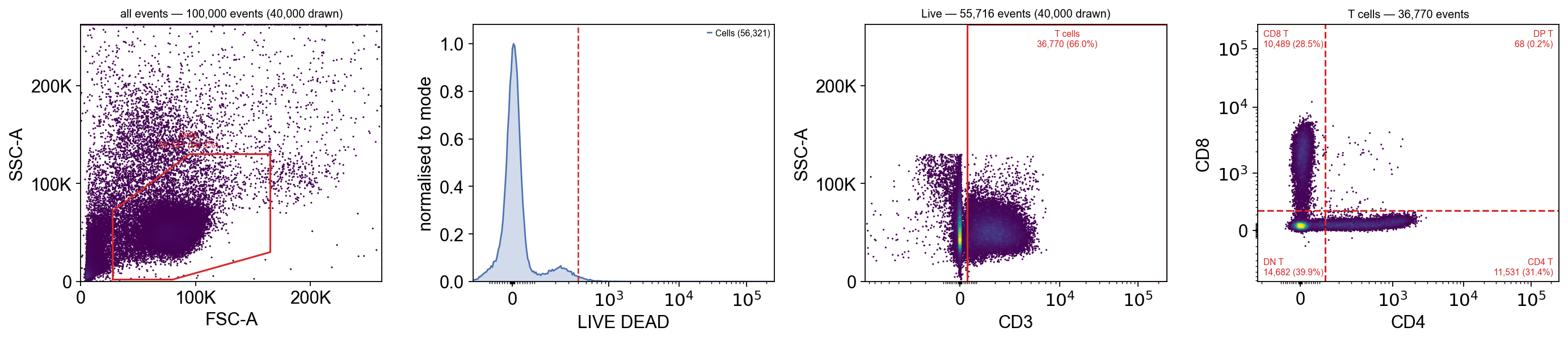

The gating strategy

Scatter, then viability, then lineage. Thresholds are written as data values and converted with at(), never as the scale-space numbers they happen to equal.

def at(marker, value):
    """A data value expressed on that marker's own scale."""
    return float(tr[marker].apply(np.array([float(value)]))[0])

def scat(value):
    return float(lin.apply(np.array([float(value)]))[0])

cells_gate = ov.flow.PolygonGate(
    name="Cells", dims=("FSC-A", "SSC-A"),
    transforms={"FSC-A": lin, "SSC-A": lin},
    vertices=np.array([[scat(28000), scat(2000)], [scat(28000), scat(72000)],
                       [scat(95000), scat(130000)], [scat(165000), scat(130000)],
                       [scat(165000), scat(30000)], [scat(80000), scat(2000)]]))

live = ov.flow.RectangleGate(
    name="Live", dims=("LIVE DEAD",), transforms={"LIVE DEAD": tr["LIVE DEAD"]},
    bounds=((None, at("LIVE DEAD", 400)),))

cd3 = ov.flow.RectangleGate(
    name="T cells", dims=("CD3",), transforms={"CD3": tr["CD3"]},
    bounds=((at("CD3", 400), None),))

quad = ov.flow.QuadrantGate(
    name="CD4/CD8", dims=("CD4", "CD8"),
    transforms={"CD4": tr["CD4"], "CD8": tr["CD8"]},
    dividers=(at("CD4", 120), at("CD8", 250)),
    quadrant_names=("DN T", "CD4 T", "CD8 T", "DP T"))

not_t = ov.flow.RectangleGate(
    name="CD3-", dims=("CD3",), transforms={"CD3": tr["CD3"]},
    bounds=((None, at("CD3", 400)),))

nk = ov.flow.RectangleGate(
    name="NK", dims=("CD56",), transforms={"CD56": tr["CD56"]},
    bounds=((at("CD56", 300), None),))

mono = ov.flow.RectangleGate(
    name="Monocytes", dims=("CD14",), transforms={"CD14": tr["CD14"]},
    bounds=((at("CD14", 800), None),))

gs = ov.flow.GatingStrategy("PBMC immunophenotyping")
gs.add_gate(cells_gate)
gs.add_gate(live,  parent="Cells")
gs.add_gate(cd3,   parent="Live")
gs.add_gate(quad,  parent="T cells")
gs.add_gate(not_t, parent="Live")
gs.add_gate(nk,    parent="CD3-")
gs.add_gate(mono,  parent="CD3-")

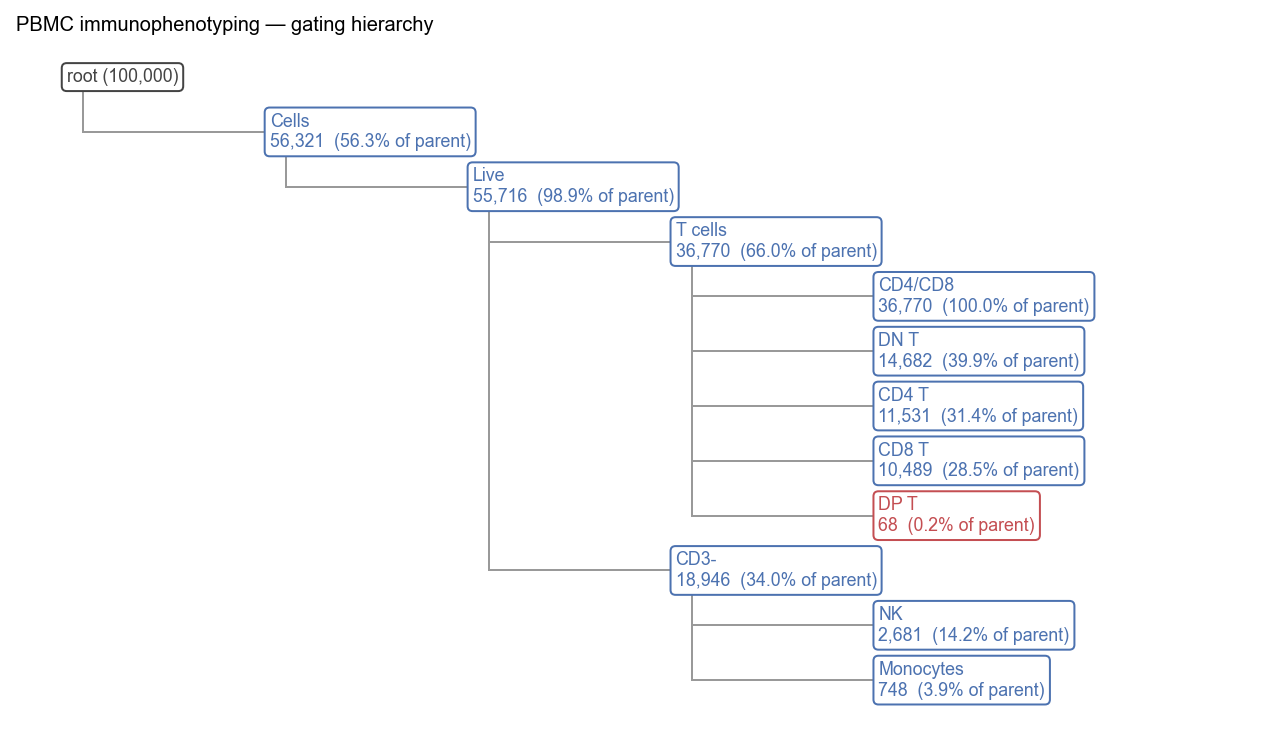

print(gs.tree())

root
  └ Cells
    └ Live
      └ T cells
        └ CD4/CD8
        └ DN T
        └ CD4 T
        └ CD8 T
        └ DP T
      └ CD3-
        └ NK
        └ Monocytes

res = gs.apply(adata)
res.stats()

   population   parent  count  parent_count  freq_parent  freq_total  low_n
0        CD3-     Live  18946         55716     0.340046     0.18946  False
1       CD4 T  T cells  11531         36770     0.313598     0.11531  False
2     CD4/CD8  T cells  36770         36770     1.000000     0.36770  False
3       CD8 T  T cells  10489         36770     0.285260     0.10489  False
4       Cells     root  56321        100000     0.563210     0.56321  False
5        DN T  T cells  14682         36770     0.399293     0.14682  False
6        DP T  T cells     68         36770     0.001849     0.00068   True
7        Live    Cells  55716         56321     0.989258     0.55716  False
8   Monocytes     CD3-    748         18946     0.039481     0.00748  False
9          NK     CD3-   2681         18946     0.141507     0.02681  False
10    T cells     Live  36770         55716     0.659954     0.36770  False

# What did the viability gate actually remove? On a fresh sample the
# answer can be "almost nothing", and that is worth stating rather than
# implying the gate did work it did not do.
removed = int(res.masks["Cells"].sum() - res.masks["Live"].sum())
print(f"viability gate removed {removed:,} of {int(res.masks['Cells'].sum()):,} "
      f"events ({removed / res.masks['Cells'].sum():.1%})")

viability gate removed 605 of 56,321 events (1.1%)

Two things in that table are worth stopping on.

low_n is doing its job on DP T — a frequency quoted off a few dozen events is not a measurement, and the column says so rather than leaving the reader to notice.

And DN T is about 40% of T cells, where healthy peripheral blood is 1–5%. That is not a rounding error, it is a factor of ten, and it is the first thing a reviewer would ask about. Hold onto it; the batch section below explains it, and the explanation is not “move the gate”.

Seeing it

fig, axes = plt.subplots(1, 4, figsize=(17.5, 4.0))
ov.flow.biaxial(adata, "FSC-A", "SSC-A", gates=[cells_gate], result=res,
                ax=axes[0], max_events=40000)
ov.flow.histogram(adata, "LIVE DEAD", gates=[live], result=res,
                  transforms={"LIVE DEAD": tr["LIVE DEAD"]},
                  populations=["Cells"], ax=axes[1])
ov.flow.biaxial(adata, "CD3", "SSC-A", gates=[cd3],
                transforms={"CD3": tr["CD3"], "SSC-A": lin},
                result=res, population="Live", ax=axes[2], max_events=40000)
ov.flow.biaxial(adata, "CD4", "CD8", gates=[quad], result=res,
                population="T cells", ax=axes[3], max_events=40000)
plt.tight_layout()

This is what real data looks like: the CD4 and CD8 arms are there and they are separable, but they are not the two tidy islands a simulation produces. The CD4 arm in particular sits low — that is the panel, not the gate.

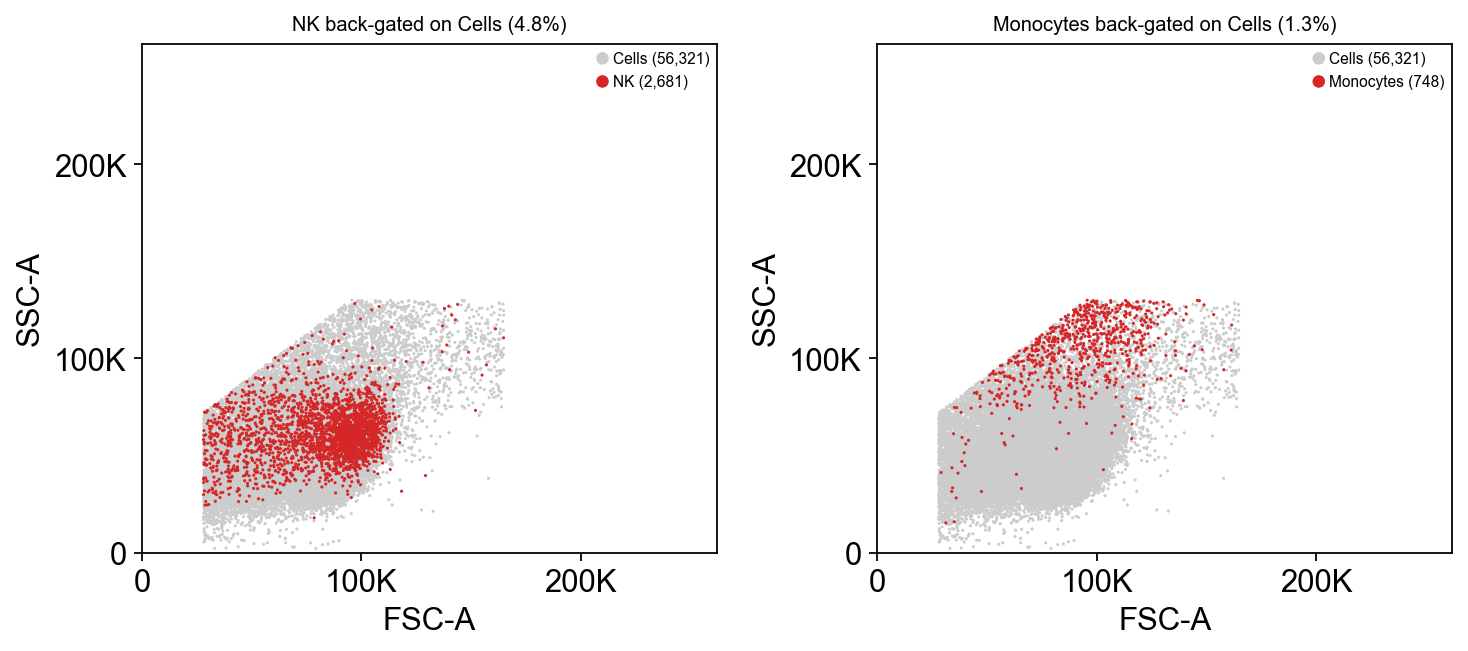

Back-gating: is the NK gate finding NK cells?

CD56 is expressed on some T cells too, so a CD56 threshold under a CD3-negative parent should land in the lymphocyte scatter region. If it did not, the gate would be picking up debris.

fig, axes = plt.subplots(1, 2, figsize=(9.4, 4.3))
ov.flow.backgate(adata, "FSC-A", "SSC-A", result=res, population="NK",
                 parent="Cells", transforms={"FSC-A": lin, "SSC-A": lin},
                 ax=axes[0])
ov.flow.backgate(adata, "FSC-A", "SSC-A", result=res, population="Monocytes",
                 parent="Cells", transforms={"FSC-A": lin, "SSC-A": lin},
                 ax=axes[1])
plt.tight_layout()

Monocytes land high on both scatter axes and NK cells in the lymphocyte cloud — which is what those populations are, and is the check that the thresholds are on real biology rather than on noise.

The hierarchy

ov.flow.hierarchy(gs, result=res, figsize=(10, 5.5))
None

One strategy, the whole batch

The reason the strategy is an object. Four files — two healthy donors, two after out-of-hospital cardiac arrest — through the same gates.

rows = {}
for sample in adata.obs["sample"].cat.categories:
    sub = adata[adata.obs["sample"] == sample].copy()
    r = gs.apply(sub, write_obs=False)
    rows[sample] = r.stats().set_index("population")["freq_parent"]
freqs = pd.concat(rows, axis=1)
freqs.style.format("{:.1%}")

	108_CardiacArrest	110_CardiacArrest	96_Healthy	97_Healthy
population
CD3-	47.9%	45.7%	33.0%	23.3%
CD4 T	41.7%	46.6%	64.7%	0.0%
CD4/CD8	100.0%	100.0%	100.0%	100.0%
CD8 T	36.7%	35.8%	29.6%	22.9%
Cells	33.3%	43.5%	65.4%	83.1%
DN T	21.5%	17.1%	5.3%	77.0%
DP T	0.1%	0.5%	0.3%	0.0%
Live	96.0%	98.6%	99.8%	99.5%
Monocytes	7.6%	0.6%	7.1%	1.0%
NK	8.6%	19.7%	17.7%	8.9%
T cells	52.1%	54.3%	67.0%	76.7%

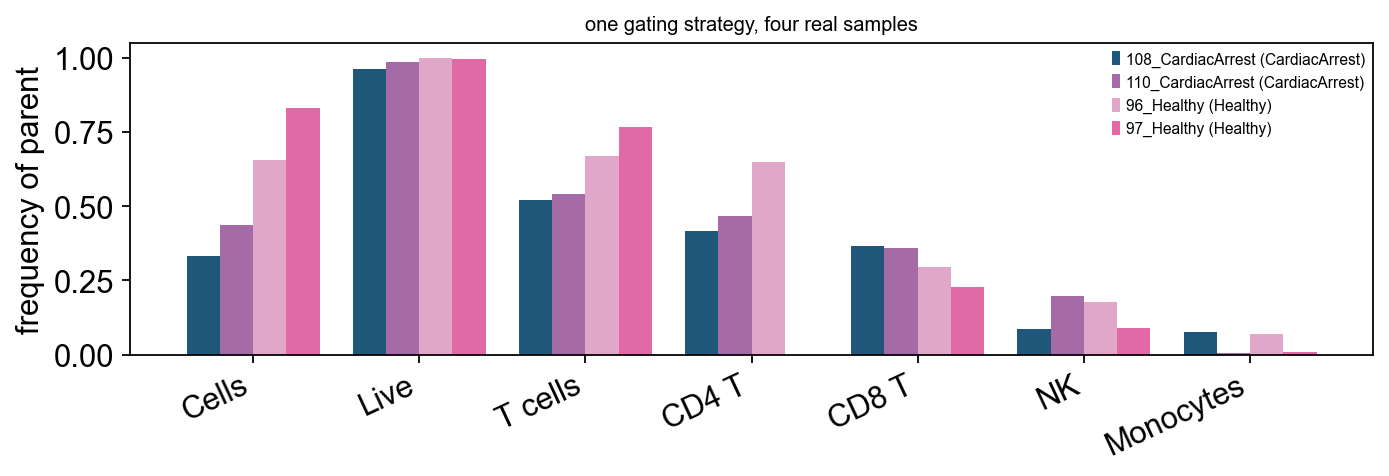

order = ["Cells", "Live", "T cells", "CD4 T", "CD8 T", "NK", "Monocytes"]
groups = dict(zip(adata.obs["sample"], adata.obs["group"]))
fig, ax = plt.subplots(figsize=(8.8, 3.2))
x, w = np.arange(len(order)), 0.2
for i, s in enumerate(freqs.columns):
    ax.bar(x + (i - 1.5) * w, freqs.loc[order, s], w,
           label=f"{s} ({groups[s]})")
ax.set_xticks(x, labels=order, rotation=25, ha="right")
ax.set_ylabel("frequency of parent")
ax.legend(fontsize=7, frameon=False)
ax.set_title("one gating strategy, four real samples", fontsize=9)
plt.tight_layout()

And there is the 40%

Look along the DN T row rather than at the pooled number.

dn = freqs.loc["DN T"].sort_values()
pd.DataFrame({"DN T (% of T cells)": dn.map("{:.1%}".format),
              "group": [groups[s] for s in dn.index]})

                  DN T (% of T cells)          group
96_Healthy                       5.3%        Healthy
110_CardiacArrest               17.1%  CardiacArrest
108_CardiacArrest               21.5%  CardiacArrest
97_Healthy                      77.0%        Healthy

One sample is not like the others. The pooled 40% was never a property of the biology — it is one file with 78% double-negative T cells dragging an average that also contains a sample at 5%, which is exactly the healthy figure.

The likely cause is a failed or weak CD4/CD8 stain in that one tube, and the useful response is to go back to the acquisition and find out — not to move the divider until the average looks respectable. This tutorial does not silently drop the sample, because a reader who only ever sees clean data learns nothing about what to do with dirty data.

It is also the argument for the whole design of GatingStrategy. The same gates ran on four files independently; had they been applied to the pooled matrix and reported once, the failure would have been invisible.

With two donors per group the rest of this is a demonstration of the mechanism, not a result — four samples cannot support a claim about cardiac arrest. The dataset has 32 files if you want to go further: n_per_group up to 3 here, and the full record on Zenodo.

Saving the strategy

Everything above is a portable object. Written to Gating-ML 2.0, it opens in FlowJo, Cytobank or flowCore.

ov.flow.write_gatingml(gs, "pbmc_strategy.xml")
back = ov.flow.read_gatingml("pbmc_strategy.xml")
check = back.apply(adata.copy(), write_obs=False)
print(f"{len(back)} gates read back")
print("every population identical after the round trip:",
      all(np.array_equal(res.masks[k], check.masks[k]) for k in res.masks))

7 gates read back
every population identical after the round trip: True

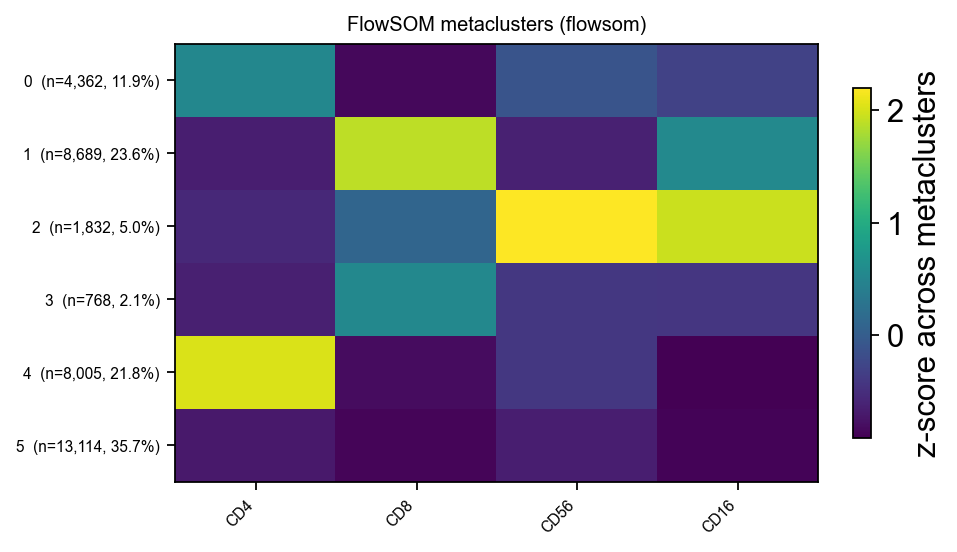

FlowSOM on the gated T cells

Clustering after gating, which is the order that works: the dead cells and the debris are already gone, so the metaclusters are phenotypes rather than artefacts.

t_cells = adata[res.masks["T cells"]].copy()
t_cells.layers["logicle"] = np.column_stack(
    [tr[m].apply(t_cells[:, m].X.ravel()) if m in tr
     else lin.apply(t_cells[:, m].X.ravel())
     for m in t_cells.var.index])

ov.flow.flowsom(t_cells, n_clusters=6, grid=(8, 8), n_epochs=12,
                layer="logicle", markers=["CD4", "CD8", "CD56", "CD16"],
                random_state=0)
ov.flow.flowsom_heatmap(t_cells, layer="logicle",
                        markers=["CD4", "CD8", "CD56", "CD16"],
                        figsize=(5.6, 3.6))
None

# Do the metaclusters agree with the gates that were drawn by hand?
pd.crosstab(t_cells.obs["flowsom"],
            pd.Series(np.where(res.masks["CD4 T"][res.masks["T cells"]], "CD4 T",
                      np.where(res.masks["CD8 T"][res.masks["T cells"]], "CD8 T",
                               "other")), index=t_cells.obs_names, name="gate"))

gate     CD4 T  CD8 T  other
flowsom
0         3396      2    964
1            0   8665     24
2          140    881    811
3            0    760      8
4         7995      0     10
5            0    181  12933

What this dataset cannot do

No CD19, so B cells are only “not everything else”. No FSC-H, so no doublet discrimination at all — every count above includes whatever doublets the sample contained, and there is nothing in the file that could exclude them.

That is not a flaw in the analysis; it is a limit of the acquisition, and the honest thing is to say so rather than to draw a singlet gate on axes that cannot support one. The second dataset can.

spectral = ov.datasets.flow_pbmc_spectral(n_donors=1, max_events=60000)
spectral.var[["channel", "marker", "PnR"]]

⚠️ File ./data/pone.0351131.s002.zip already exists
60,000 events x 16 channels from 1 donor(s)
Gootjes C, Zwaginga JJ, Nikolic T, Roep BO (2026). Limited efficacy of a therapeutic anti-CD40 monoclonal antibody to inhibit activated CD4 T cell autoimmunity in vitro. PLOS ONE. https://doi.org/10.1371/journal.pone.0351131 (CC-BY-4.0)

                   channel marker        PnR
Time                  Time         2293297.0
SSC-H                SSC-H         4194304.0
SSC-A                SSC-A         4194304.0
FSC-H                FSC-H         4194304.0
FSC-A                FSC-A         4194304.0
SSC-B-H            SSC-B-H         4194304.0
SSC-B-A            SSC-B-A         4194304.0
CD56               BV510-A   CD56  4194304.0
CD15               BV605-A   CD15  4194304.0
CD4                BV650-A    CD4  4194304.0
CD14     Alexa Fluor 488-A   CD14  4194304.0
CD19                  PE-A   CD19  4194304.0
CD8         PE-Dazzle594-A    CD8  4194304.0
CD16              PE-Cy7-A   CD16  4194304.0
CD40                 APC-A   CD40  4194304.0
CD3              APC-Cy7-A    CD3  4194304.0

Note $PnR again: this instrument runs to 2,293,297 and 4,194,304 depending on the channel, not 262,144. A transform built from a hard-coded top of scale would put every event in the wrong place.

Ts = float(spectral.var.loc["FSC-A", "PnR"])
lin_s = ov.flow.Linear(t=Ts)
print(f"{Ts:,.0f} vs the BD instrument's {T:,.0f}")

# A singlet gate is a band around FSC-H / FSC-A ~ 1. Read the band off the data
# rather than guessing at vertices: a doublet has the same pulse area spread
# over a longer time, so its height-to-area ratio drops.
A = spectral[:, "FSC-A"].X.ravel()
H = spectral[:, "FSC-H"].X.ravel()
ratio = H / np.maximum(A, 1)
print("FSC-H / FSC-A: " + ", ".join(
    f"p{p}={np.percentile(ratio, p):.2f}" for p in (5, 25, 50, 75, 95)))

lo, hi, a0, a1 = 0.80, 1.05, 20_000.0, 1_500_000.0
def sc(v):
    return float(lin_s.apply(np.array([float(v)]))[0])

singlets = ov.flow.PolygonGate(
    name="Singlets", dims=("FSC-A", "FSC-H"),
    transforms={"FSC-A": lin_s, "FSC-H": lin_s},
    vertices=np.array([[sc(a0), sc(lo * a0)], [sc(a1), sc(lo * a1)],
                       [sc(a1), sc(hi * a1)], [sc(a0), sc(hi * a0)]]))
gs_s = ov.flow.GatingStrategy("spectral").add_gate(singlets)
res_s = gs_s.apply(spectral, write_obs=False)

ov.flow.biaxial(spectral, "FSC-A", "FSC-H", gates=[singlets], result=res_s,
                figsize=(5.0, 4.6), max_events=40000,
                xlim=(0, sc(2_500_000)), ylim=(0, sc(2_500_000)))
None

4,194,304 vs the BD instrument's 262,144
FSC-H / FSC-A: p5=0.65, p25=0.83, p50=0.97, p75=1.03, p95=1.08

The doublets are the events below the diagonal — same pulse area, less height — and this is the plot that removes them. Note the axes are zoomed: FSC-A runs to 4.2 million on this instrument and the population occupies the bottom sixth of it, so the default full-scale view would show a dot in the corner.

The Fortessa dataset has no FSC-H channel at all, so this gate is simply unavailable there — every count in the first half of this notebook includes whatever doublets those tubes contained.

And its spillover is the identity

A full-spectrum instrument unmixes at acquisition. The $SPILLOVER keyword is present and is the identity matrix, so there is nothing to compensate — running compensate() here would be a ritual, not a correction.

sp_s = spectral.uns["fcs"]["spillover"]
print(f"{sp_s.shape[0]}x{sp_s.shape[1]}, identity:",
      np.allclose(sp_s.to_numpy(), np.eye(sp_s.shape[0]), atol=1e-5))
print(f"largest off-diagonal term: "
      f"{np.abs(sp_s.to_numpy() - np.eye(sp_s.shape[0])).max():.2g}")

9x9, identity: True
largest off-diagonal term: 1e-06

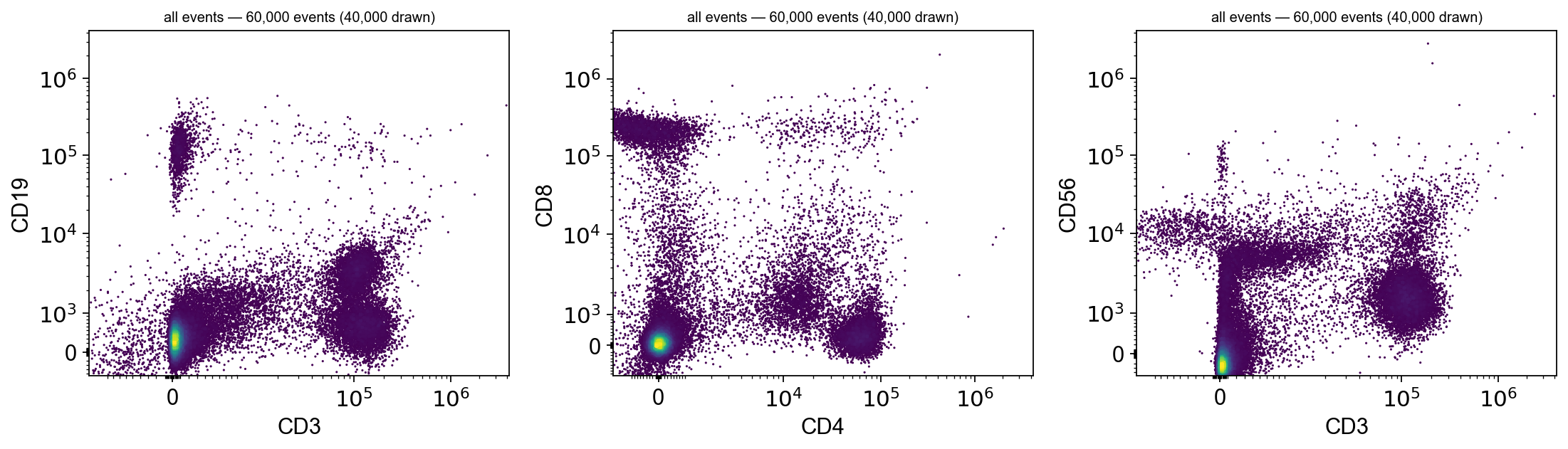

The full lineage panel

CD19 is here, so the B-cell arm is a gate rather than an inference.

markers_s = ["CD3", "CD4", "CD8", "CD19", "CD14", "CD16", "CD56"]
tr_s = {m: ov.flow.Logicle(t=float(spectral.var.loc[m, "PnR"]), m=4.5,
                           w=auto_w(spectral[:, m].X.ravel(),
                                    float(spectral.var.loc[m, "PnR"])), a=0.0)
        for m in markers_s}

fig, axes = plt.subplots(1, 3, figsize=(14, 4.2))
for ax, (a_, b_) in zip(axes, [("CD3", "CD19"), ("CD4", "CD8"), ("CD3", "CD56")]):
    ov.flow.biaxial(spectral, a_, b_, transforms={a_: tr_s[a_], b_: tr_s[b_]},
                    ax=ax, max_events=40000)
plt.tight_layout()

Summary

Notebook	Data	What it can teach
01–04	simulated	the mechanics, and checking a gate against the answer
05	real	what the file actually contains, and what it does not

Three things this notebook could show and the simulated ones could not:

1. $PnR, not 262144. Two instruments, three different tops of scale, one of them per-channel. A hard-coded t is a bug waiting for the next file.

2. W is fitted, not chosen. Real detector noise is orders of magnitude wider than a simulation’s, and the published estimator is four lines.

3. Some questions the data cannot answer. No FSC-H means no doublet gate, and the right response is to say so — not to draw one anyway.

And one thing that only shows up when you actually look: a pooled frequency can be a fiction. 40% double-negative T cells across four files turned out to be one file at 78% and another at 5%. Gating each sample separately is what made that visible, and no amount of gate-tweaking would have fixed it — because there was nothing wrong with the gate.

Both datasets are CC-BY-4.0 and were downloaded from their original repositories; if you publish anything derived from them, cite the sources at the top of this notebook.
