FlowSOM — and what clustering does not replace#
Automated clustering is a complement to gating, not a substitute. A gate is auditable and reproducible and a reviewer can argue with it; a metacluster is none of those things. The honest use is: find populations a strategy missed, then go and draw the gate.
This notebook shows FlowSOM working, and then shows it failing in the specific way it fails when you skip the gating — which is the part most tutorials leave out.
Continues from Gating-ML.
# No data of your own is needed. ov.datasets.flow_demo_fcs() writes a SIMULATED
# FCS 3.1 file into the current working directory: 59,600 events, nine known
# populations, a real $SPILLOVER keyword, and a detector noise floor that pushes
# dim events below zero — which is why a log display axis will not do.
import numpy as np, pathlib
import omicverse as ov
ov.style() # omicverse's plotting defaults — call this once, up front
path = ov.datasets.flow_demo_fcs()
print(path)
🔬 Starting plot initialization...
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
• [MPS] Apple Silicon GPU - Metal Performance Shaders available
____ _ _ __
/ __ \____ ___ (_)___| | / /__ _____________
/ / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ / __/ / (__ ) __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/ /____/\___/
🔖 Version: 2.2.4 📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
flow_demo.fcs
import omicverse as ov
import matplotlib.pyplot as plt
import numpy as np
adata = ov.datasets.flow_demo() # = read_fcs(flow_demo_fcs()) + obs['population']
ov.flow.compensate(adata)
lin = ov.flow.Linear(t=262144.0)
lg = ov.flow.Logicle(t=262144.0, m=4.5, w=1.0, a=0.0)
adata
AnnData object with n_obs × n_vars = 59600 × 8
obs: 'sample', 'population'
var: 'n', 'channel', 'marker', 'PnB', 'PnE', 'PnG', 'PnR'
uns: 'meta', 'fcs', 'flow_demo', 'flow'
layers: 'uncompensated'
def at(v):
"""A data value expressed on the logicle scale — how a threshold is really
written. Typing 0.42 instead of at(600) is how gates drift."""
return float(lg.apply(np.array([float(v)]))[0])
cells = ov.flow.PolygonGate(
name="Cells", dims=("FSC-A", "SSC-A"),
transforms={"FSC-A": lin, "SSC-A": lin},
vertices=np.array([[0.12,0.01],[0.12,0.17],[0.40,0.32],
[0.68,0.32],[0.68,0.09],[0.38,0.01]]))
singlets = ov.flow.PolygonGate(
name="Singlets", dims=("FSC-A", "FSC-H"),
transforms={"FSC-A": lin, "FSC-H": lin},
vertices=np.array([[0.05,0.03],[0.05,0.10],[0.75,0.86],[0.75,0.69]]))
live = ov.flow.RectangleGate(
name="Live", dims=("Viability",), transforms={"Viability": lg},
bounds=((None, at(1200)),))
cd3 = ov.flow.RectangleGate(
name="CD3+", dims=("CD3",), transforms={"CD3": lg},
bounds=((at(600), None),))
quad = ov.flow.QuadrantGate(
name="CD4/CD8", dims=("CD4", "CD8"), transforms={"CD4": lg, "CD8": lg},
dividers=(at(600), at(600)),
quadrant_names=("DN", "CD4+CD8-", "CD4-CD8+", "DP"))
gs = ov.flow.GatingStrategy("T cell panel")
gs.add_gate(cells)
gs.add_gate(singlets, parent="Cells")
gs.add_gate(live, parent="Singlets")
gs.add_gate(cd3, parent="Live")
gs.add_gate(quad, parent="CD3+")
print(gs.tree())
root
└ Cells
└ Singlets
└ Live
└ CD3+
└ CD4/CD8
└ DN
└ CD4+CD8-
└ CD4-CD8+
└ DP
Cluster on transformed values, not raw#
The SOM follows whichever channel has the largest numbers. Raw fluorescence is dominated by the brightest decade of the brightest fluorochrome, and the “populations” that come out are then a description of the panel rather than of the biology. Cluster on the display scale.
adata.layers["logicle"] = np.column_stack(
[lin.apply(adata.X[:, i]) for i in range(3)] # scatter: linear
+ [lg.apply(adata.X[:, i]) for i in range(3, adata.n_vars)] # fluorescence
)
print(adata.layers["logicle"].min(), adata.layers["logicle"].max())
0.0176458191126585 0.8424009873865204
FlowSOM on ungated events#
Deliberately the wrong thing first. Note markers= — leaving FSC/SSC in lets
scatter dominate the map, and the clusters become shapes rather than
phenotypes.
ov.flow.flowsom(adata, n_clusters=8, grid=(8, 8), n_epochs=12,
layer="logicle", markers=["CD3", "CD4", "CD8", "CD19"],
random_state=0)

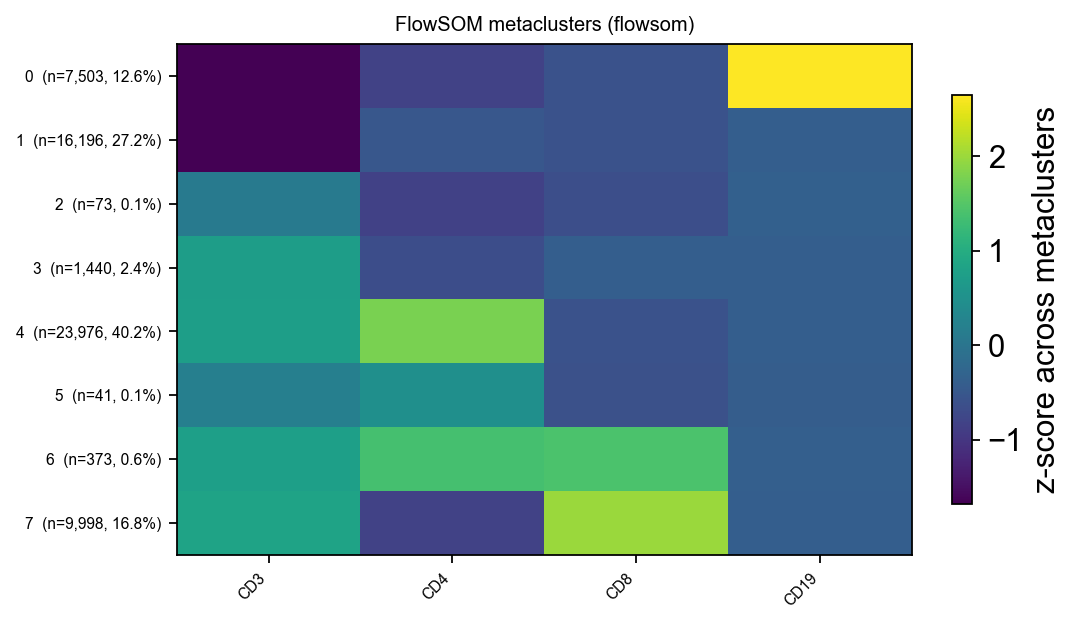

ov.flow.flowsom_heatmap(adata, layer="logicle", figsize=(6.4, 4.2))
None
Readable enough: one CD19-high cluster, one CD8-high, one CD4-high, and a large everything-low cluster. Now check it against the truth — which is available here only because the sample is synthetic, and is exactly what you never have on real data:
import pandas as pd
ct = pd.crosstab(adata.obs["flowsom"], adata.obs["population"])
ct
population B CD4 T CD8 T DN T DP T dead debris doublet mono
flowsom
0 7500 0 0 0 0 0 3 0 0
1 0 0 0 0 0 0 10996 0 5200
2 0 0 0 72 0 0 1 0 0
3 0 0 2 1314 124 0 0 0 0
4 0 16998 0 0 4 3174 0 3800 0
5 0 2 0 14 0 25 0 0 0
6 0 0 0 0 372 1 0 0 0
7 0 0 9998 0 0 0 0 0 0
There is the failure. Look at the cluster containing the CD4 T cells: it has swallowed the dead cells and the doublets as well. Both are CD3+CD4+ by fluorescence — a dead cell still has its surface markers, and a doublet is two cells’ worth of them — so on a marker panel alone they are indistinguishable from the real population.
No amount of clustering fixes this. The information that separates them is in the scatter channels and the viability dye, and it is the gating strategy that uses it.
res = gs.apply(adata)
contaminating = adata.obs["population"].isin(["dead", "doublet"]).to_numpy()
target = ct["CD4 T"].idxmax()
print(f"cluster {target} (the CD4 T cluster):")
sel = (adata.obs["flowsom"] == target).to_numpy()
print(f" events : {sel.sum():,}")
print(f" dead or doublet : {int((sel & contaminating).sum()):,} "
f"({(sel & contaminating).sum() / sel.sum():.1%})")
print(f" surviving the strategy : {int((sel & res.masks['Live'] & res.masks['Singlets']).sum()):,}")
cluster 4 (the CD4 T cluster):
events : 23,976
dead or doublet : 6,974 (29.1%)
surviving the strategy : 17,000
FlowSOM after gating#
The same algorithm, on the events the strategy kept. This is the order that works.
gated = adata[res.masks["CD3+"]].copy()
ov.flow.flowsom(gated, n_clusters=5, grid=(8, 8), n_epochs=12,
layer="logicle", markers=["CD3", "CD4", "CD8"],
random_state=0, key_added="flowsom_gated")

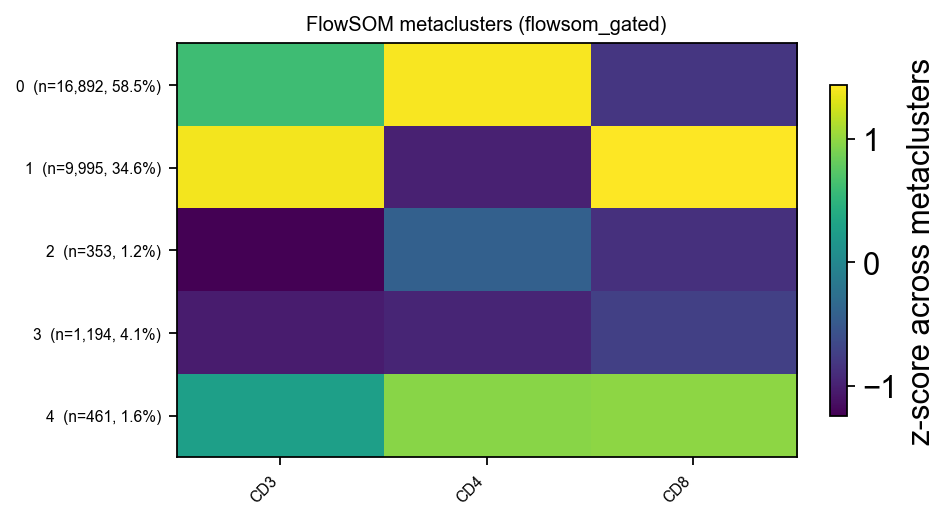

ov.flow.flowsom_heatmap(gated, key="flowsom_gated", layer="logicle",
markers=["CD3", "CD4", "CD8"], figsize=(5.4, 3.4))
None
pd.crosstab(gated.obs["flowsom_gated"], gated.obs["population"])
population B CD4 T CD8 T DN T DP T
flowsom_gated
0 0 16891 0 0 1
1 0 0 9995 0 0
2 0 107 0 246 0
3 1 0 2 1153 38
4 0 0 0 0 461
Now the clusters are T-cell subsets rather than a mixture of subsets and artefacts. The rare compartments do better, but read the table honestly rather than taking the improvement on faith:
ct_g = pd.crosstab(gated.obs["flowsom_gated"], gated.obs["population"])
for pop in ["CD4 T", "CD8 T", "DN T", "DP T"]:
col = ct_g[pop]
print(f"{pop:6s} {col.sum():6,} events — "
f"{col.max() / col.sum():5.1%} in its largest cluster "
f"(cluster {col.idxmax()}), spread over {int((col > 0).sum())}")
CD4 T 16,998 events — 99.4% in its largest cluster (cluster 0), spread over 2
CD8 T 9,997 events — 100.0% in its largest cluster (cluster 1), spread over 2
DN T 1,399 events — 82.4% in its largest cluster (cluster 3), spread over 2
DP T 500 events — 92.2% in its largest cluster (cluster 4), spread over 3
CD4 and CD8 land almost entirely in one cluster each. DP does well too. DN does not — it splits across two clusters, and that is worth saying out loud rather than glossing: 1,400 events with no positive marker in the panel are defined by what they lack, and a SOM has little to grip. The quadrant gate finds them by construction; the clustering only mostly does.
Where a cluster earns its place#

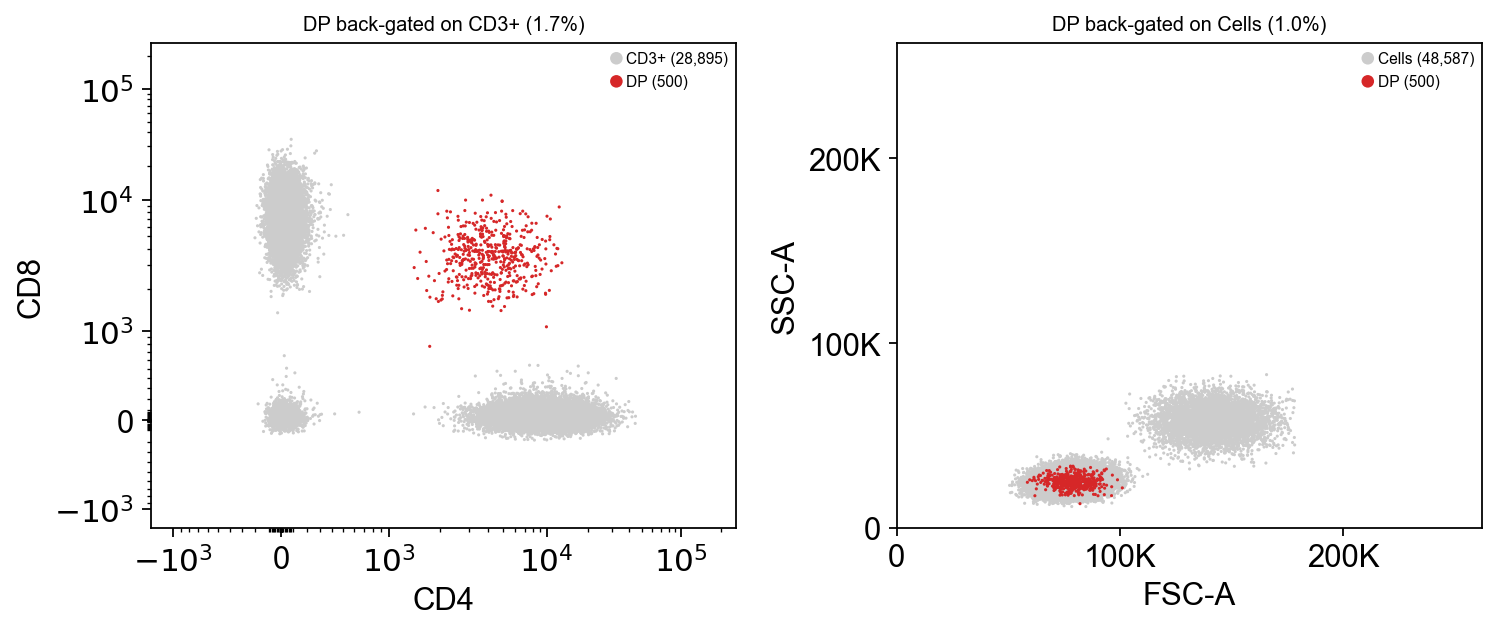

Back-gating is what turns a metacluster into a claim you can defend: show where its events sit on the axes a human would have gated.
res_g = gs.apply(adata)
fig, axes = plt.subplots(1, 2, figsize=(9.6, 4.2))
ov.flow.backgate(adata, "CD4", "CD8", result=res_g, population="DP",
parent="CD3+", transforms={"CD4": lg, "CD8": lg}, ax=axes[0])
ov.flow.backgate(adata, "FSC-A", "SSC-A", result=res_g, population="DP",
parent="Cells", transforms={"FSC-A": lin, "SSC-A": lin},
ax=axes[1])
plt.tight_layout()
Summary of the series#
Notebook |
What it covers |
|---|---|
|
|
gate geometry, the strategy tree, |
|
Gating-ML 2.0 round-trip, one strategy over a batch, diffing |
|
04 |
FlowSOM, and the order that makes it trustworthy |
The rule the whole module is built around: the gate carries the scale it was drawn on. Everything else — saving, sharing, re-applying, plotting — follows from that.
