Trajectory Inference with StaVIA: Official toy_multifurcating Test Data#
If you use StaVIA in your research, please cite:
StaVIA: Spatio-Temporal Latent Embeddings and Vector field Inference for Collective Cell Migrations.
Paper: <https://www.biorxiv.org/content/10.1101/2024.07.04.601964v1
Code: ShobiStassen/VIA
Documentation: https://pyvia.readthedocs.io/en/latest/Atlas view examples.html
%matplotlib inline
import numpy as np
import pandas as pd
import scanpy as sc
import anndata as ad
import omicverse as ov
from anndata import AnnData
from omicverse.external import VIA
import matplotlib.pyplot as plt
ov.plot_set()
🔬 Starting plot initialization...
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
• [MPS] Apple Silicon GPU - Metal Performance Shaders available
____ _ _ __
/ __ \____ ___ (_)___| | / /__ _____________
/ / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ / __/ / (__ ) __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/ /____/\___/
🔖 Version: 2.2.1rc1 📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
Load the official StaVIA test data#
This notebook uses the toy_multifurcating_M8_n1000d1000 test data released by the ShobiStassen/VIA repository. group_id is the simulated branch label and true_time is the simulated time, which can be used to check trajectory direction. For comparison, the older t_via.ipynb uses the VIA author-provided scRNA_hematopoiesis dataset loaded by ov.single.scRNA_hematopoiesis().
base_url = "https://raw.githubusercontent.com/ShobiStassen/VIA/master/Datasets"
counts_url = f"{base_url}/toy_multifurcating_M8_n1000d1000.csv"
ids_url = f"{base_url}/toy_multifurcating_M8_n1000d1000_ids_with_truetime.csv"
counts = pd.read_csv(counts_url).rename(columns={"Unnamed: 0": "cell_id"}).set_index("cell_id")
cell_meta = pd.read_csv(ids_url)
cell_meta["cell_id_num"] = cell_meta["cell_id"].str[1:].astype(int)
cell_meta = cell_meta.sort_values("cell_id_num").reset_index(drop=True)
counts = counts.loc[cell_meta["cell_id"].astype(str)]
adata = AnnData(
counts.to_numpy(dtype=float),
obs=cell_meta[["group_id", "true_time"]].copy(),
)
adata.obs_names = cell_meta["cell_id"].astype(str).to_numpy()
adata.var_names = counts.columns.astype(str)
adata.obs["group_id"] = adata.obs["group_id"].astype("category")
adata.obs["true_time"] = pd.to_numeric(adata.obs["true_time"])
adata
AnnData object with n_obs × n_vars = 1000 × 1000
obs: 'group_id', 'true_time'
adata.raw = adata.copy()
sc.pp.pca(adata, n_comps=50, random_state=4)
sc.pp.neighbors(adata, use_rep="X_pca", n_neighbors=15, n_pcs=30)
sc.tl.umap(adata, min_dist=1, random_state=4)

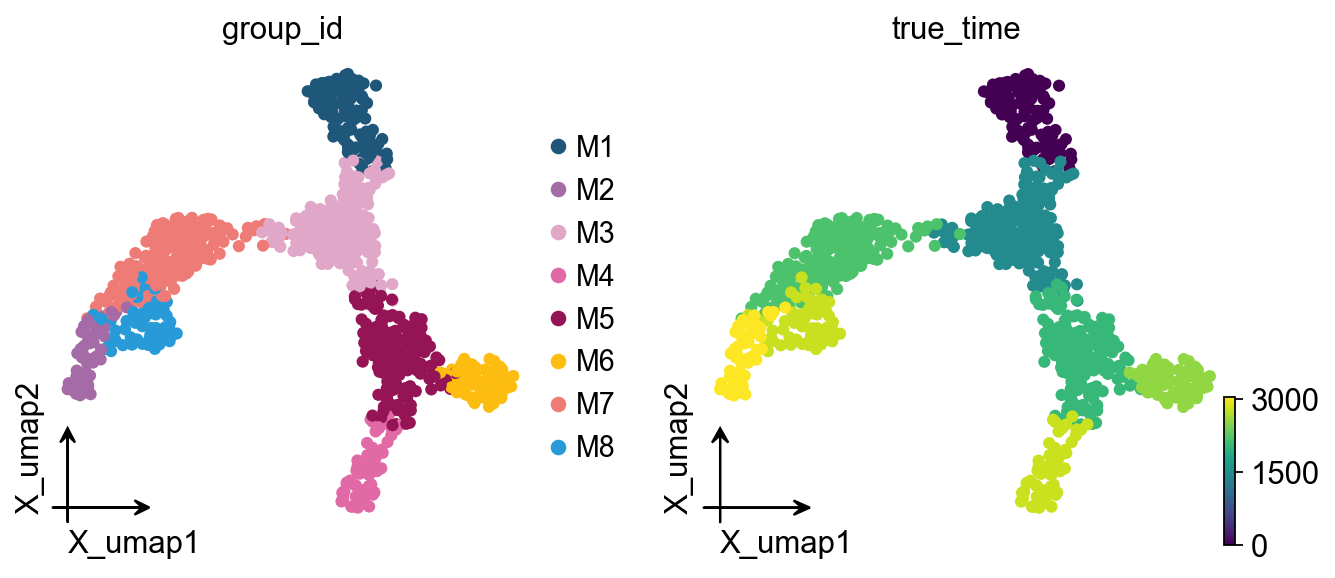

ov.pl.embedding(
adata,
basis="X_umap",
color=["group_id", "true_time"],
frameon="small",
cmap="viridis",
)
# Official labels are stored in adata.obs["group_id"], and true_time can be used to check the simulated trajectory direction.
adata.obs[["group_id", "true_time"]].head()
group_id true_time
C1 M3 1444
C2 M6 2548
C3 M5 2048
C4 M7 2182
C5 M7 2182
Construct and run the model#
ncomps = 30
knn = 15
random_seed = 4
root = "M1"
memory = 0
use_rep = "X_pca"
clusters = "group_id"
basis = "X_umap"
stavia = ov.single.StaVIA(
adata,
use_rep=use_rep,
n_comps=ncomps,
basis=basis,
cluster_key=clusters,
spatial_key=None, # Set to "spatial" for spatial AnnData
time_key=None,
sample_key=None,
key_added="stavia",
root=root,
knn=knn,
random_seed=random_seed,
memory=memory,
dataset="group",
num_threads=1,
n_iter_leiden=5,
small_pop=5,
num_mcmc_simulations=200,
edgepruning_clustering_resolution=0.15,
cluster_graph_pruning=0.15,
resolution_parameter=1.5,
)
stavia.fit()
v0 = stavia.model
stavia_embedding = np.asarray(adata.obsm[stavia.basis])[:, [0, 1]]
2026-05-23 03:40:02.117233 Running VIA over input data of 1000 (samples) x 30 (features)
2026-05-23 03:40:02.117323 Knngraph has 15 neighbors
2026-05-23 03:40:02.284309 Finished global pruning of 15-knn graph used for clustering at level of 0.15. Kept 47.3 % of edges.
2026-05-23 03:40:02.286104 Number of connected components used for clustergraph is 1
2026-05-23 03:40:02.294707 Commencing community detection
2026-05-23 03:40:02.331189 Finished community detection. Found 34 clusters.
2026-05-23 03:40:02.331616 Merging 20 very small clusters (<5)
2026-05-23 03:40:02.331990 Finished detecting communities. Found 14 communities
2026-05-23 03:40:02.332041 Making cluster graph. Global cluster graph pruning level: 0.15
2026-05-23 03:40:02.333119 Graph has 1 connected components before pruning
2026-05-23 03:40:02.333733 Graph has 4 connected components after pruning
2026-05-23 03:40:02.334651 Graph has 1 connected components after reconnecting
2026-05-23 03:40:02.334819 0.0% links trimmed from local pruning relative to start
2026-05-23 03:40:02.334829 31.6% links trimmed from global pruning relative to start
initial links 38 and final_links_n 38
2026-05-23 03:40:02.335622 component number 0 out of [0]
2026-05-23 03:40:02.340391 group root method
2026-05-23 03:40:02.340403 for component 0, the root is M1 and ri M1
cluster 0 has majority M7
cluster 1 has majority M3
cluster 2 has majority M5
cluster 3 has majority M1
2026-05-23 03:40:02.341348 New root is 3 and majority M1
cluster 4 has majority M7
cluster 5 has majority M6
cluster 6 has majority M1
2026-05-23 03:40:02.341502 New root is 6 and majority M1
cluster 7 has majority M4
cluster 8 has majority M5
cluster 9 has majority M2
cluster 10 has majority M3
cluster 11 has majority M8
cluster 12 has majority M3
cluster 13 has majority M2
2026-05-23 03:40:02.341807 Computing lazy-teleporting expected hitting times
2026-05-23 03:40:05.962378 Ended all multiprocesses, will retrieve and reshape
2026-05-23 03:40:05.975636 start computing walks with rw2 method
memory for rw2 hittings times 2. Using rw2 based pt
2026-05-23 03:40:09.111171 Identifying terminal clusters corresponding to unique lineages...
2026-05-23 03:40:09.111191 Closeness:[4, 5, 6, 7, 9, 11, 13]
2026-05-23 03:40:09.111198 Betweenness:[3, 5, 6, 7, 8, 9, 11, 13]
2026-05-23 03:40:09.111203 Out Degree:[0, 3, 5, 6, 7, 8, 11, 13]
2026-05-23 03:40:09.111313 Terminal clusters corresponding to unique lineages in this component are [5, 7, 8, 9, 11, 13]
Via 1.0 lineage prob
2026-05-23 03:40:13.605237 From root 6, the Terminal state 5 is reached 27 times.
terminal state 5 has probability [0. 0.713 0.891 0.713 0. 1. 0.713 0.096 0.228 0. 0.891 0.
0.909 0. ]
2026-05-23 03:40:18.085904 From root 6, the Terminal state 7 is reached 68 times.
terminal state 7 has probability [0. 0.909 1. 0.909 0. 1. 0.909 1. 1. 0. 1. 0.
0.689 0. ]
2026-05-23 03:40:22.622261 From root 6, the Terminal state 8 is reached 71 times.
terminal state 8 has probability [0. 0.909 1. 0.909 0. 1. 0.909 0. 1. 0. 1. 0.
0.742 0. ]
2026-05-23 03:40:27.175570 From root 6, the Terminal state 9 is reached 27 times.
terminal state 9 has probability [0.931 0.27 0. 0.27 0.931 0. 0.27 0. 0. 1. 0. 0.867
0.519 0. ]
2026-05-23 03:40:31.722120 From root 6, the Terminal state 11 is reached 13 times.
terminal state 11 has probability [0.909 0.245 0. 0.245 0.909 0. 0.245 0. 0. 0.333 0. 1.
0.446 0.333]
2026-05-23 03:40:36.261872 From root 6, the Terminal state 13 is reached 20 times.
terminal state 13 has probability [0.87 0.2 0. 0.2 0.87 0. 0.2 0. 0. 0.952 0. 0.812
0.4 1. ]
2026-05-23 03:40:36.276931 There are (6) terminal clusters corresponding to unique lineages {5: 'M6', 7: 'M4', 8: 'M5', 9: 'M2', 11: 'M8', 13: 'M2'}
2026-05-23 03:40:36.276953 Begin projection of pseudotime and lineage likelihood
2026-05-23 03:40:36.361844 Cluster graph layout based on forward biasing
2026-05-23 03:40:36.362335 Starting make edgebundle viagraph...
2026-05-23 03:40:38.257028 Make via clustergraph edgebundle
2026-05-23 03:40:38.588996 Hammer dims: Nodes shape: (14, 2) Edges shape: (26, 3)
2026-05-23 03:40:38.589615 Graph has 1 connected components before pruning
2026-05-23 03:40:38.590210 Graph has 4 connected components after pruning
2026-05-23 03:40:38.590911 Graph has 1 connected components after reconnecting
2026-05-23 03:40:38.591047 11.5% links trimmed from local pruning relative to start
2026-05-23 03:40:38.591058 34.6% links trimmed from global pruning relative to start
initial links 26 and final_links_n 23
2026-05-23 03:40:38.591747 Start making edgebundle milestone with 150 milestones...This can be recomputed with make_edgebundle_milestone()
2026-05-23 03:40:38.591760 Start finding milestones
2026-05-23 03:40:38.828921 End milestones with 150
2026-05-23 03:40:38.829051 Will use via-pseudotime for edges, otherwise consider providing a list of numeric labels (single cell level) or via_object
2026-05-23 03:40:38.830849 Recompute weights
2026-05-23 03:40:38.839811 pruning milestone graph based on recomputed weights
2026-05-23 03:40:38.840535 Graph has 1 connected components before pruning
2026-05-23 03:40:38.841326 Graph has 1 connected components after pruning
2026-05-23 03:40:38.841434 Graph has 1 connected components after reconnecting
2026-05-23 03:40:38.842120 61.6% links trimmed from global pruning relative to start
2026-05-23 03:40:38.842156 regenerate igraph on pruned edges
2026-05-23 03:40:38.845954 Setting numeric label as single cell pseudotime for coloring edges
2026-05-23 03:40:38.849593 Making smooth edges
REMEMBER TO RE-INCLUDE the PLT.SHOW HERE - COMMENTING IT OUT FOR NOW
2026-05-23 03:40:38.988002 Time elapsed 36.8 seconds

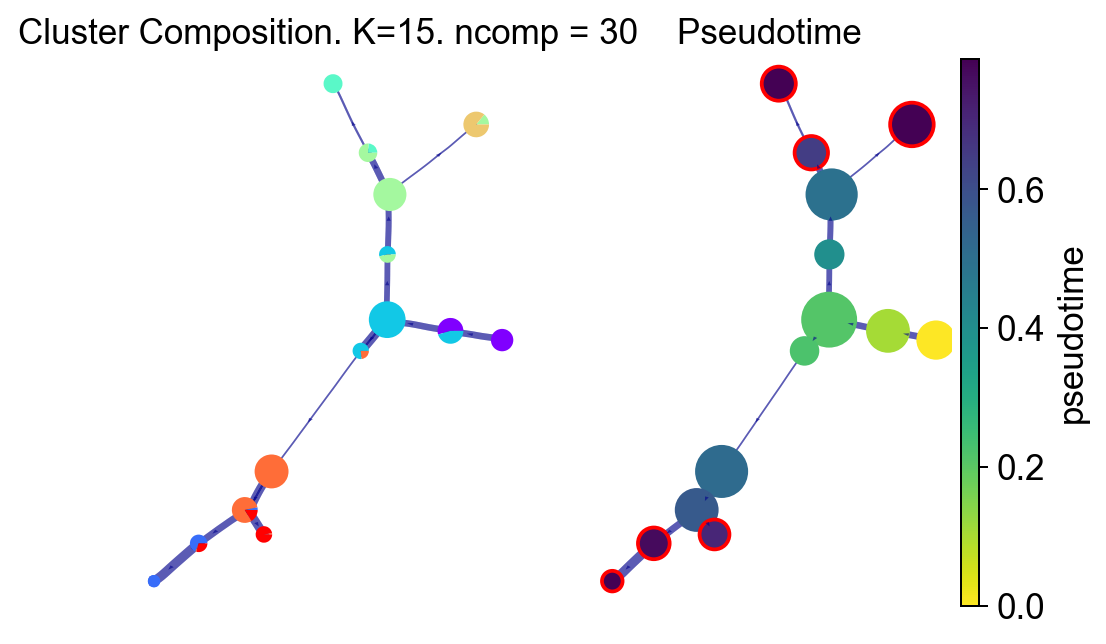

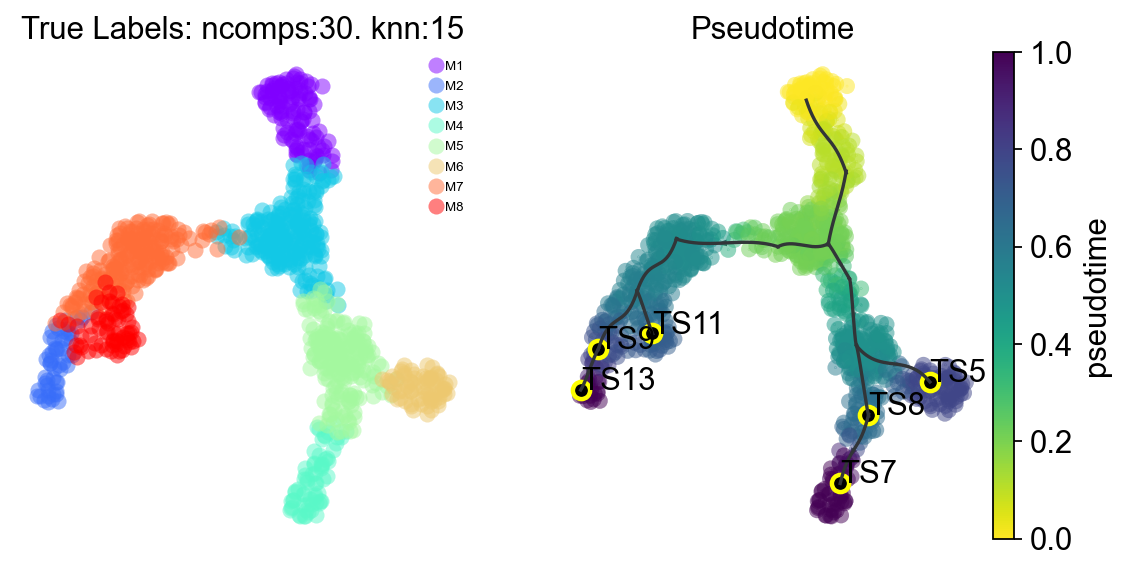

StaVIA graph structure and pseudotime#
fig, ax, ax1 = VIA.core.plot_piechart_viagraph(
via_object=v0,
dpi=90,
ax_text=False,
show_legend=False,
)
fig.set_size_inches(6, 4)
plt.show()
tune edges False

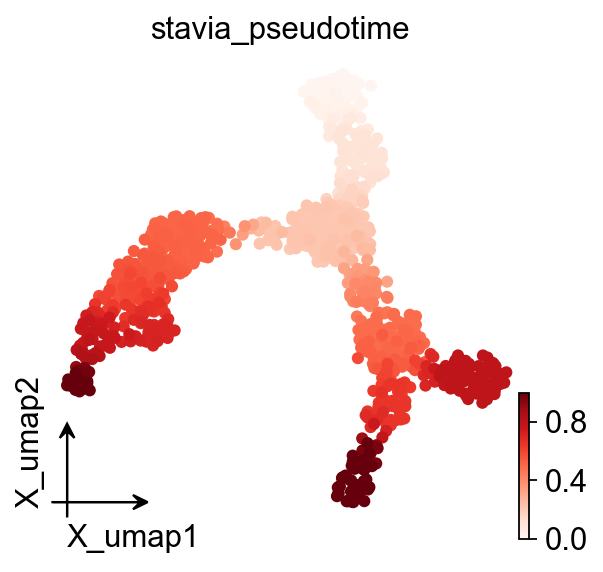

ov.pl.embedding(
adata,
basis=basis,
color=[stavia.pseudotime_key],
frameon="small",
cmap="Reds",
)

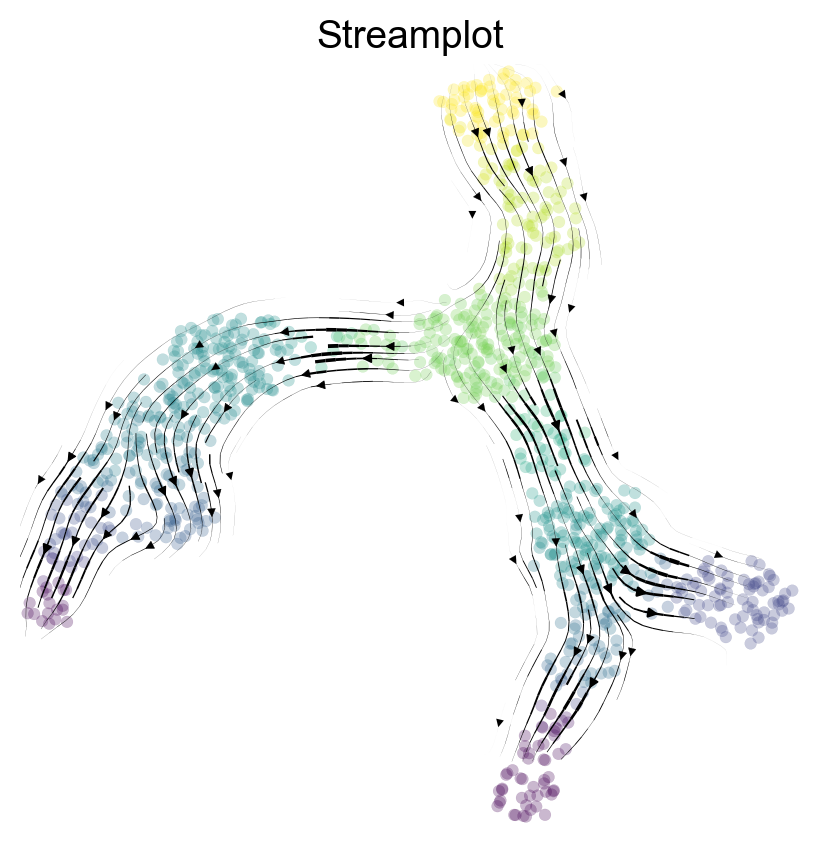

StaVIA trajectory projection#
fig, ax, ax1 = VIA.core.plot_trajectory_curves(
via_object=v0,
embedding=stavia_embedding,
dpi=80,
draw_all_curves=False,
)
fig.set_size_inches(8, 4)
plt.show()
2026-05-23 03:40:41.764159 Super cluster 5 is a super terminal with sub_terminal cluster 5
2026-05-23 03:40:41.764478 Super cluster 7 is a super terminal with sub_terminal cluster 7
2026-05-23 03:40:41.764503 Super cluster 8 is a super terminal with sub_terminal cluster 8
2026-05-23 03:40:41.764522 Super cluster 9 is a super terminal with sub_terminal cluster 9
2026-05-23 03:40:41.764539 Super cluster 11 is a super terminal with sub_terminal cluster 11
2026-05-23 03:40:41.764555 Super cluster 13 is a super terminal with sub_terminal cluster 13

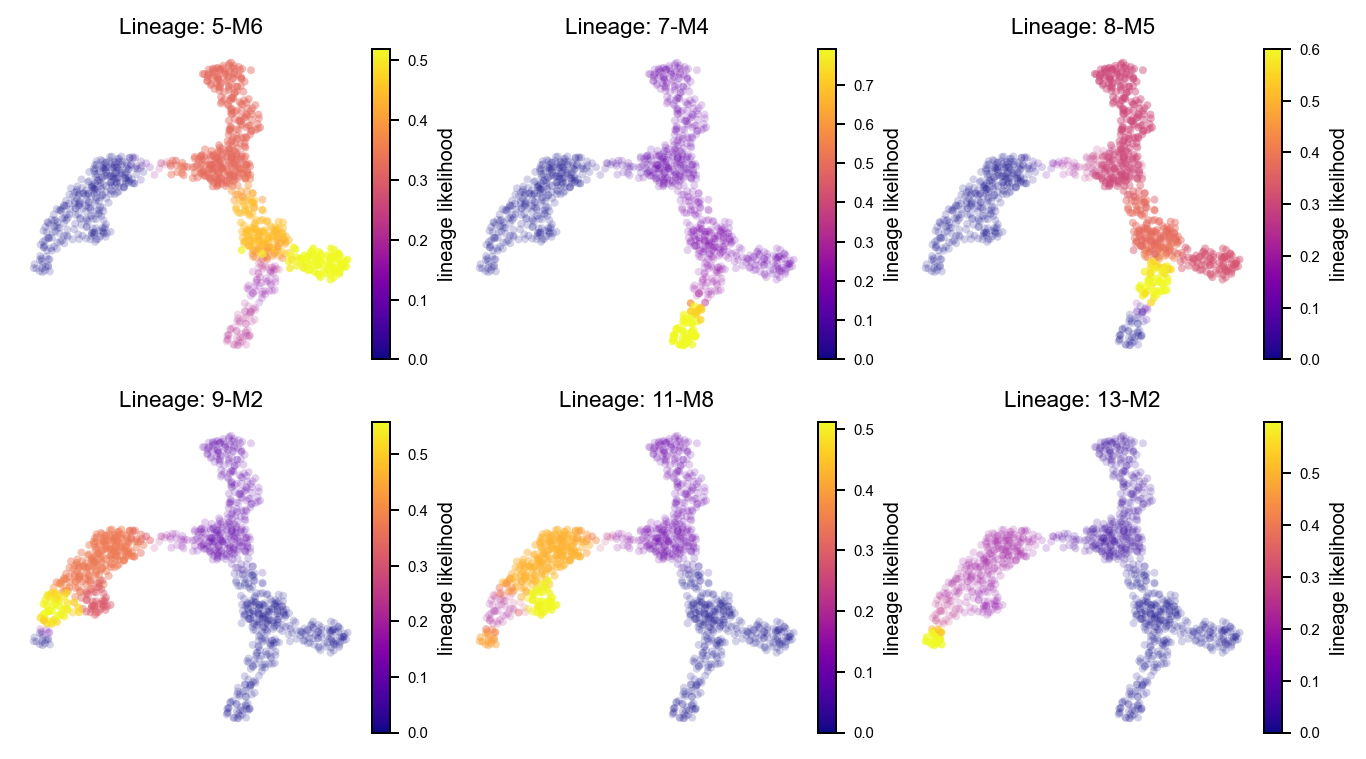

StaVIA lineage probabilities#
Following the probabilistic pathways section in t_via.ipynb, we first show all terminal lineage probabilities and then inspect the first two terminal lineages separately.

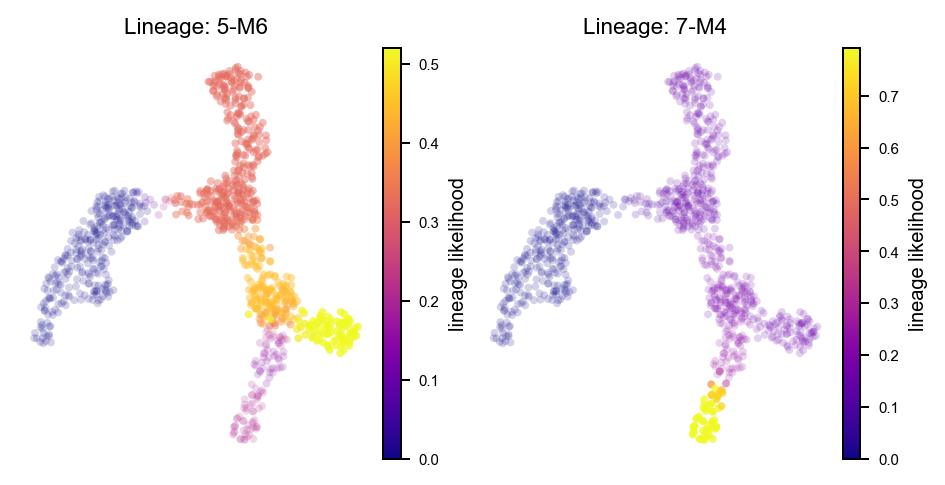

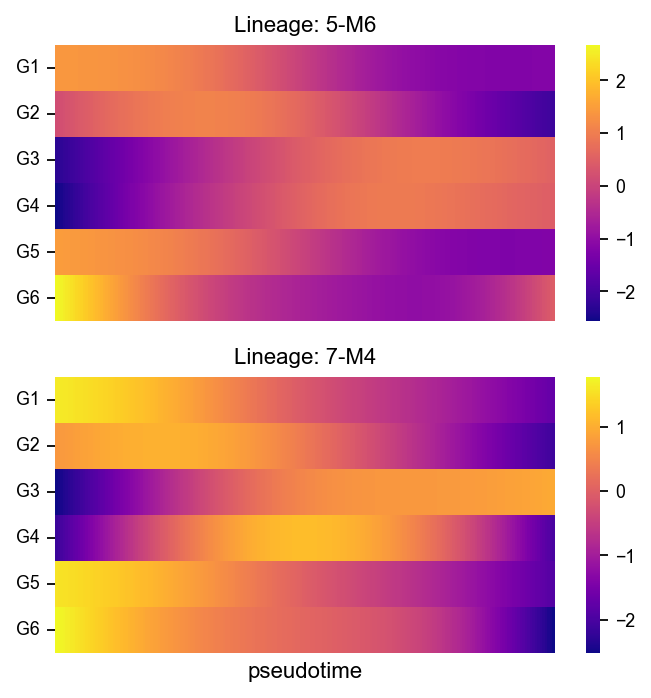

fig, axs = VIA.core.plot_sc_lineage_probability(
via_object=v0,
embedding=stavia_embedding,
dpi=90,
)
fig.set_size_inches(9, 5)
plt.show()
2026-05-23 03:40:42.007530 Marker_lineages: [5, 7, 8, 9, 11, 13]
2026-05-23 03:40:42.008410 The number of components in the original full graph is 1
2026-05-23 03:40:42.008434 For downstream visualization purposes we are also constructing a low knn-graph
2026-05-23 03:40:42.260670 Check sc pb 1.0000000000000002
f getting majority comp
2026-05-23 03:40:42.268882 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 5: [6, 3, 1, 10, 2, 5]
2026-05-23 03:40:42.268900 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 7: [6, 3, 1, 10, 2, 8, 7]
2026-05-23 03:40:42.268907 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 8: [6, 3, 1, 10, 2, 8]
2026-05-23 03:40:42.268914 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 9: [6, 3, 1, 12, 0, 4, 9]
2026-05-23 03:40:42.268920 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 11: [6, 3, 1, 12, 0, 4, 11]
2026-05-23 03:40:42.268925 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 13: [6, 3, 1, 12, 0, 4, 9, 13]
setting vmin to 0.0
2026-05-23 03:40:42.287760 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 5 along path: [6, 6, 6, 3, 1, 10, 2, 5, 5, 5, 5]
setting vmin to 0.0
2026-05-23 03:40:42.294566 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 7 along path: [6, 6, 6, 3, 1, 10, 2, 8, 7, 7, 7, 7, 7]
setting vmin to 0.0
2026-05-23 03:40:42.300932 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 8 along path: [6, 6, 6, 3, 1, 10, 2, 8, 8, 8]
setting vmin to 0.0
2026-05-23 03:40:42.307089 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 9 along path: [6, 6, 6, 3, 1, 12, 0, 4, 9, 9, 9]
setting vmin to 0.0
2026-05-23 03:40:42.313550 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 11 along path: [6, 6, 6, 3, 1, 12, 0, 11, 11, 11, 11]
setting vmin to 0.0
2026-05-23 03:40:42.320296 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 13 along path: [6, 6, 6, 3, 1, 12, 0, 4, 9, 13, 13]
marker_lineages = list(v0.terminal_clusters)[:2]
fig, axs = VIA.core.plot_sc_lineage_probability(
via_object=v0,
embedding=stavia_embedding,
marker_lineages=marker_lineages,
dpi=90,
)
fig.set_size_inches(6, 3)
plt.show()
2026-05-23 03:40:42.468244 Marker_lineages: [5, 7]
2026-05-23 03:40:42.468541 The number of components in the original full graph is 1
2026-05-23 03:40:42.468554 For downstream visualization purposes we are also constructing a low knn-graph
2026-05-23 03:40:42.719363 Check sc pb 1.0000000000000002
f getting majority comp
2026-05-23 03:40:42.727626 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 5: [6, 3, 1, 10, 2, 5]
2026-05-23 03:40:42.727645 Cluster path on clustergraph starting from Root Cluster 6 to Terminal Cluster 7: [6, 3, 1, 10, 2, 8, 7]
setting vmin to 0.0
2026-05-23 03:40:42.739627 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 5 along path: [6, 6, 6, 3, 1, 10, 2, 5, 5, 5, 5]
setting vmin to 0.0
2026-05-23 03:40:42.746117 Revised Cluster level path on sc-knnGraph from Root Cluster 6 to Terminal Cluster 7 along path: [6, 6, 6, 3, 1, 10, 2, 8, 7, 7, 7, 7, 7]

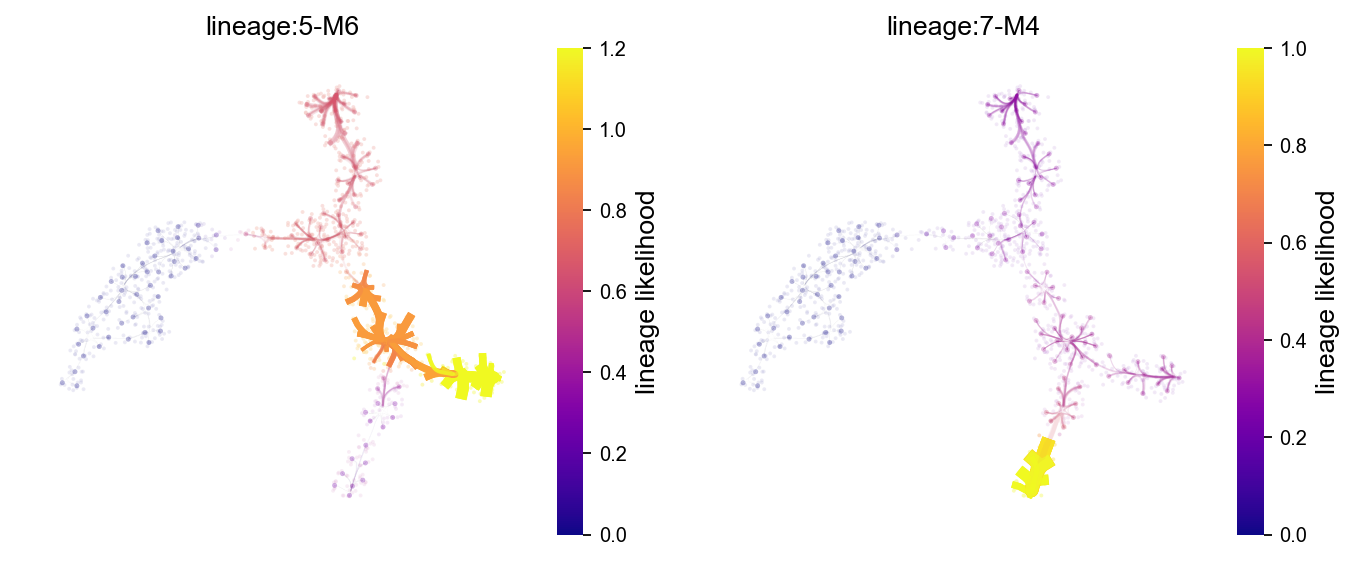

StaVIA lineage path atlas view#
lineage_pathway = list(v0.terminal_clusters)[:2]
fig, axs = VIA.core.plot_atlas_view(
via_object=v0,
dpi=80,
lineage_pathway=lineage_pathway,
fontsize_title=12,
fontsize_labels=12,
)
fig.set_size_inches(10, 4)
plt.show()
location of 5 is at [0] and 0
setting vmin to 0.0
location of 7 is at [1] and 1
setting vmin to 0.0
StaVIA stream plots#

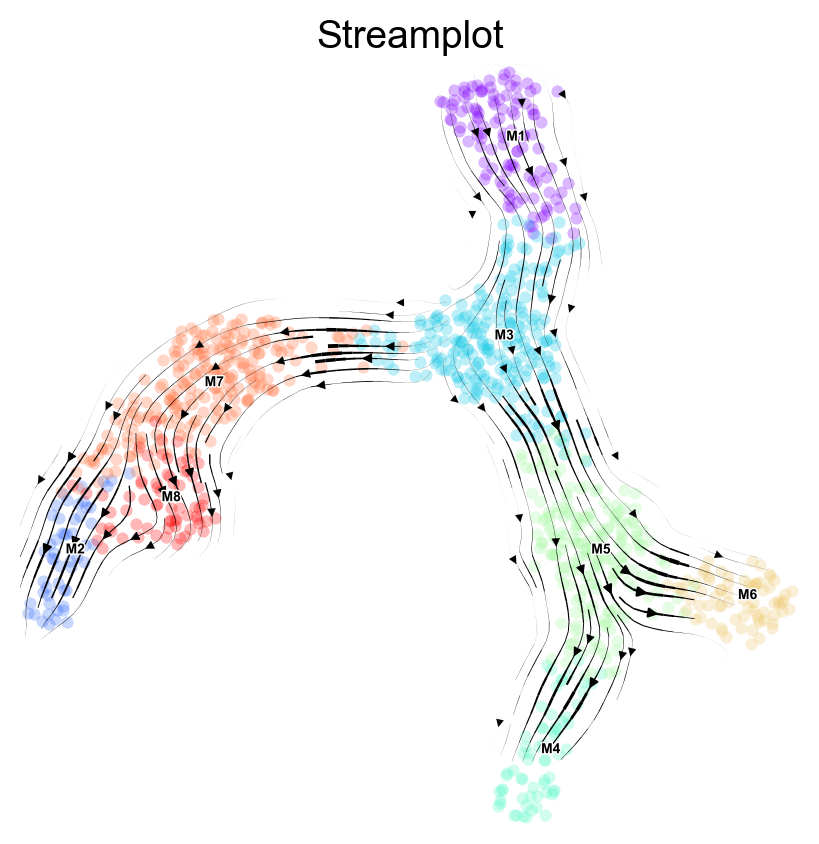

Following the stream plot examples in t_via.ipynb, we show stream plots colored by annotation and by pseudotime.
fig, ax = VIA.core.via_streamplot(
via_object=v0,
embedding=stavia_embedding,
dpi=100,
density_grid=1.0,
density_stream=2.5,
scatter_size=18,
scatter_alpha=0.28,
linewidth=0.8,
)
fig.set_size_inches(5, 5)
plt.show()
fig, ax = VIA.core.via_streamplot(
via_object=v0,
embedding=stavia_embedding,
dpi=100,
density_grid=1.0,
density_stream=2.5,
scatter_size=18,
scatter_alpha=0.28,
linewidth=0.8,
color_scheme="time",
min_mass=1,
cutoff_perc=5,
marker_edgewidth=0.1,
smooth_transition=1,
smooth_grid=0.5,
)
fig.set_size_inches(5, 5)
plt.show()
Gene / feature graph visualization#

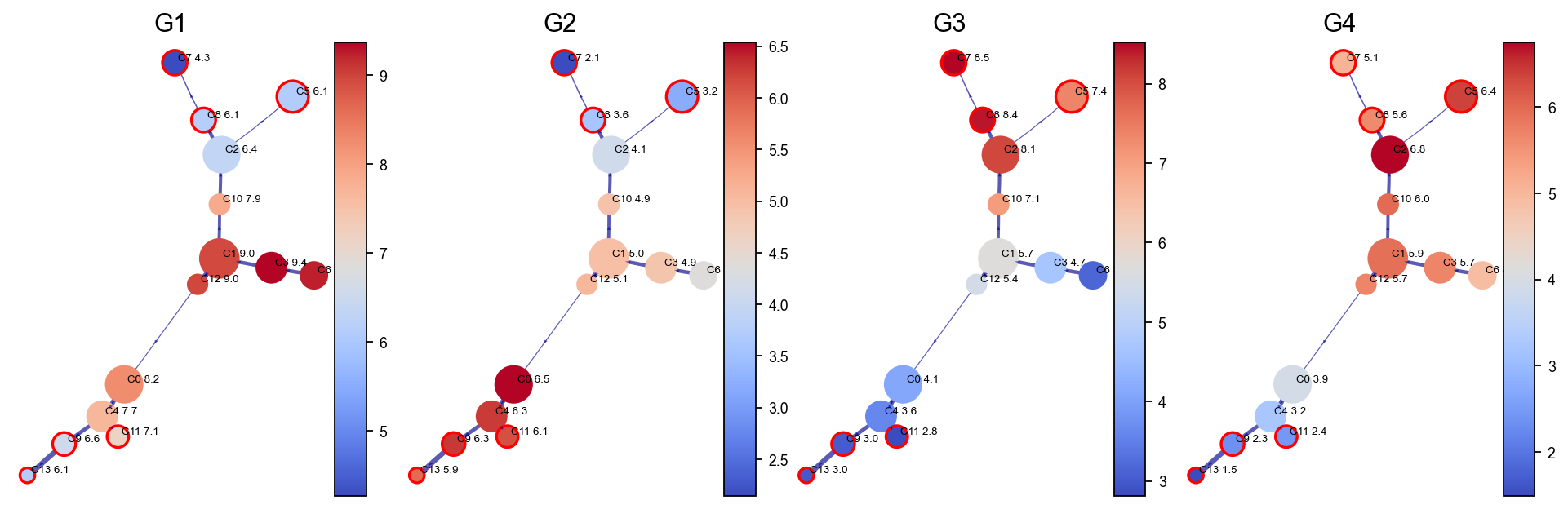

Following the gene/feature graph section in t_via.ipynb, selected features are first smoothed with the fitted VIA graph in a MAGIC-like manner and then shown at the cluster level.
stavia_marker_genes = [
gene
for gene in ["G1", "G2", "G3", "G4", "G5", "G6"]
if gene in adata.raw.var_names
]
df_gene = adata.raw[:, stavia_marker_genes].to_adata().to_df()
df_magic = v0.do_impute(
df_gene,
magic_steps=3,
gene_list=stavia_marker_genes,
)
shape of transition matrix raised to power 3 (1000, 1000)
fig, axs = VIA.core.plot_viagraph(
via_object=v0,
type_data="gene",
df_genes=df_magic.copy(),
gene_list=stavia_marker_genes[:4],
arrow_head=0.1,
)
fig.set_size_inches(12, 4)
plt.show()
StaVIA lineage gene dynamics#

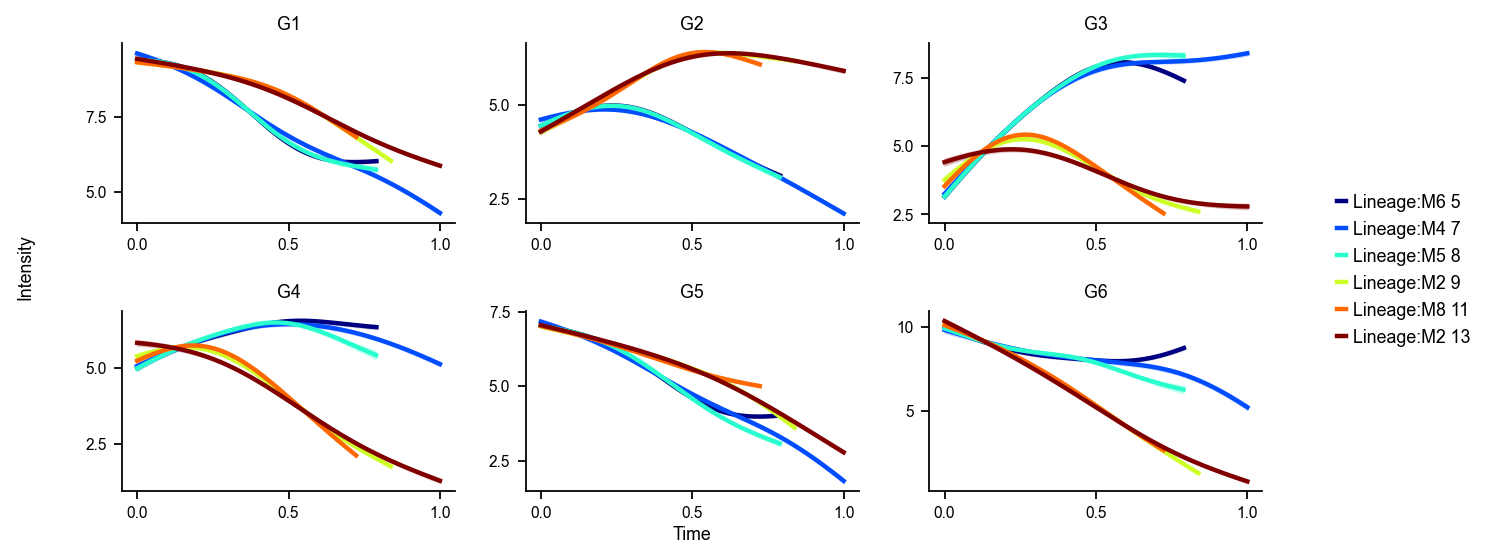

VIA estimates gene dynamics along detected terminal lineages. We first show native VIA trend curves and heatmaps, then compare them with the general OmicVerse dynamic trend and dynamic heatmap workflow.
fig, axs = VIA.core.get_gene_expression(
via_object=v0,
gene_exp=df_magic[stavia_marker_genes],
marker_genes=stavia_marker_genes,
dpi=80,
figsize=(10, 4),
ncols=3,
legend_loc="right",
)
plt.show()
Area under curve G1 for branch M6 is 5.9976576637811245
Area under curve G1 for branch M4 is 7.037647276171276
Area under curve G1 for branch M5 is 5.9729927151835795
Area under curve G1 for branch M2 is 6.891188373159115
Area under curve G1 for branch M8 is 6.153775365850442
Area under curve G1 for branch M2 is 7.924280442495617
Area under curve G2 for branch M6 is 3.4438356577647733
Area under curve G2 for branch M4 is 3.9730264220746445
Area under curve G2 for branch M5 is 3.4281218940011677
Area under curve G2 for branch M2 is 4.818711483846181
Area under curve G2 for branch M8 is 4.094146866442365
Area under curve G2 for branch M2 is 5.8180379502109965
Area under curve G3 for branch M6 is 5.235727543043163
Area under curve G3 for branch M4 is 6.994198196529512
Area under curve G3 for branch M5 is 5.328764513419543
Area under curve G3 for branch M2 is 3.50401839592964
Area under curve G3 for branch M8 is 3.18722235112096
Area under curve G3 for branch M2 is 3.9333306954286473
Area under curve G4 for branch M6 is 4.842783551706997
Area under curve G4 for branch M4 is 5.951869342527106
Area under curve G4 for branch M5 is 4.713613809211201
Area under curve G4 for branch M2 is 3.5622574383483747
Area under curve G4 for branch M8 is 3.3242806094946977
Area under curve G4 for branch M2 is 3.8043690976026037
Area under curve G5 for branch M6 is 4.245191867124027
Area under curve G5 for branch M4 is 4.752848399207355
Area under curve G5 for branch M5 is 4.134374043170865
Area under curve G5 for branch M2 is 4.77913533625955
Area under curve G5 for branch M8 is 4.333748833616201
Area under curve G5 for branch M2 is 5.330174491739848
Area under curve G6 for branch M6 is 6.71935779968703
Area under curve G6 for branch M4 is 7.92294229711988
Area under curve G6 for branch M5 is 6.407707175487717
Area under curve G6 for branch M2 is 5.097285495174189
Area under curve G6 for branch M8 is 4.88148543643921
Area under curve G6 for branch M2 is 5.337690297131225
marker_lineages = list(v0.terminal_clusters)[:2]
fig, axs = VIA.core.plot_gene_trend_heatmaps(
via_object=v0,
df_gene_exp=df_magic[stavia_marker_genes],
cmap="plasma",
marker_lineages=marker_lineages,
)
fig.set_size_inches(5, max(3, 2.5 * len(marker_lineages)))
plt.show()
branches [5, 7]
